SN8D Series

Manufacturer: KEMET

Catalog

COMMON MODE CHOKE, 125UH, 2A

Part	Height (Max) [Max] [z]	Height (Max) [z]	Package / Case	Package / Case	Current Rating (Max) [Max]	Inductance @ Frequency	Number of Lines	Filter Type	DC Resistance (DCR) (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [y]	Size / Dimension [y]	Height (Max) [z]	Height (Max)

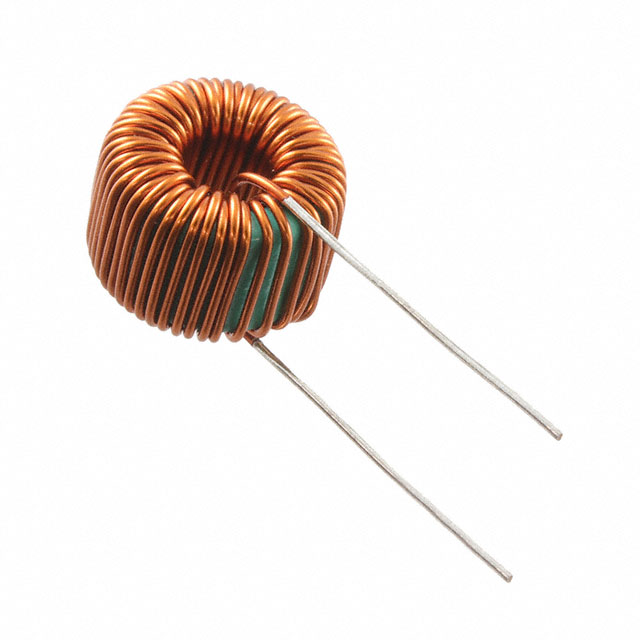

KEMET SN8D-500	0.728 in	18.5 mm	No Base Vertical	2 Lead	2 A	125 µH	2	Power Line	100 mOhm	Through Hole	105 ░C	-25 °C

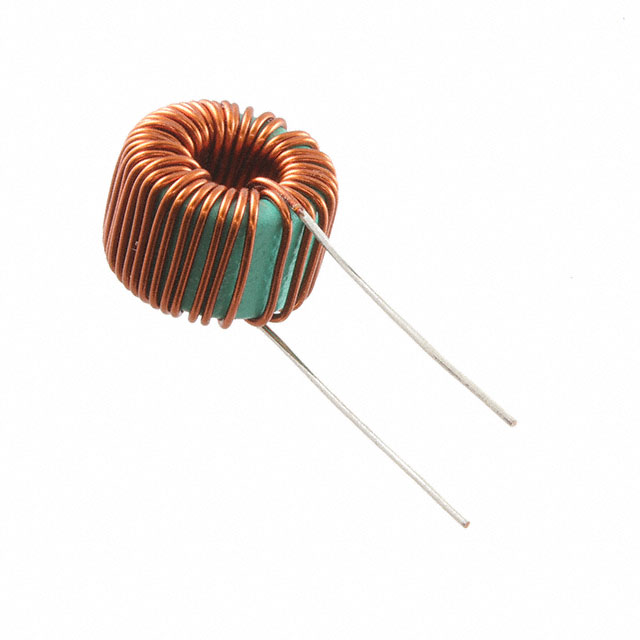

KEMET SN8D-400		17.5 mm	No Base Vertical	2 Lead	2 A	80 µH 100 kHz	2	Power Line	72 mOhm	Through Hole	105 ░C	-25 °C	0.63 in	16 mm	0.433 in	11 mm	0.689 in

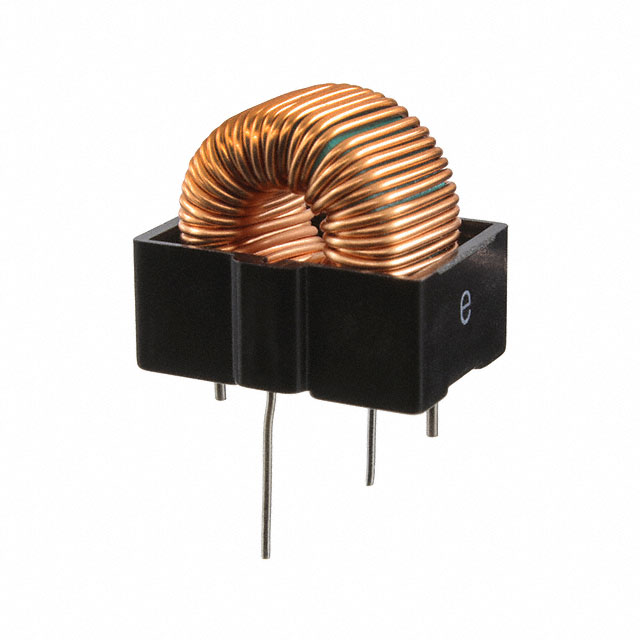

KEMET SN8D-500JB	0.854 in		4 PC Pin Horizontal		2 A	125 µH	2	Power Line	100 mOhm	Through Hole	105 ░C	-25 °C						21.7 mm
