FS35R12 Series

Manufacturer: INFINEON

Catalog

IGBT MOD 1200V 55A 200W

Part	Input	Mounting Type	Input Capacitance (Cies) @ Vce	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]	Supplier Device Package	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Package / Case	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Configuration	IGBT Type
INFINEON FS35R12KE3GBOSA1	Standard	Chassis Mount	2.5 nF	125 °C	-40 C	55 A	Module	2.15 V	200 W	Module	5 mA	1200 V	Full Bridge
INFINEON FS35R12W1T7B11BOMA1	Standard	Chassis Mount	6.62 nF 25 V	175 °C	-40 °C	35 A	AG-EASY1B	1.6 V	20 mW	Module	7.3 µA	1200 V	Three Phase Inverter	Trench Field Stop
INFINEON FS35R12KT3BOSA1	Standard	Chassis Mount	2.5 nF	125 °C	-40 C	55 A	Module	2.15 V	210 W	Module	5 mA	1200 V	Full Bridge Inverter

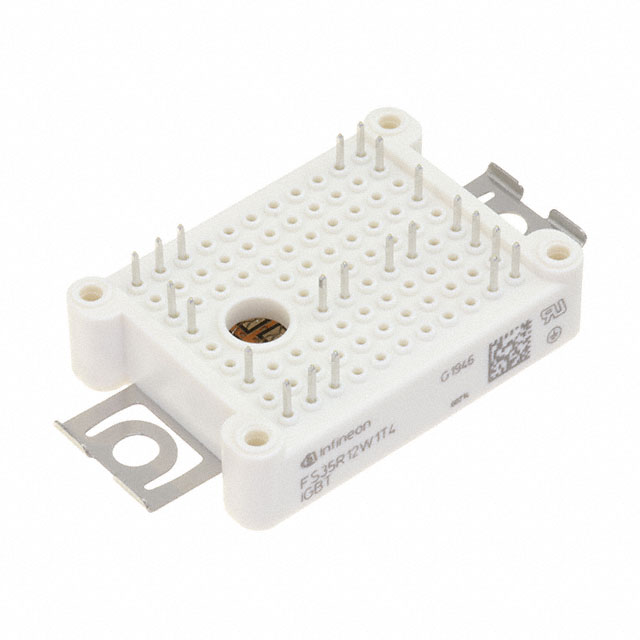

INFINEON FS35R12W1T4BOMA1	Standard	Chassis Mount	2 nF	150 °C	-40 °C	65 A	Module	2.25 V	225 W	Module	1 mA	1200 V	Three Phase Inverter	Trench Field Stop
