MC Series

Catalog

POWER INDUCTORS - SMD 963-LSCNE1608FETR24M RPLCMT PN 0603 0.24UH 100MOHMSUR

Part	Inductance Frequency - Test	Material - Core	Type	Current Rating (Amps)	Mounting Type	Inductance	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Package / Case	Shielding	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max)	DC Resistance (DCR) [Max]	Current - Saturation (Isat)	Size / Dimension [y]
Taiyo Yuden MCFE1608TR24MG	1 MHz	Metal	Multilayer	2.6 A	Surface Mount	240 nH	0603 (1608 Metric)	0.031 in	1.6 mm	0.8 mm	0.063 "	100 mOhm	0.026 in	0.65 mm	1608 Metric	0603	Shielded	20 %	125 °C	-40 C
Taiyo Yuden MCHK1608T2R2MKN	1 MHz	Metal	Multilayer	1.2 A	Surface Mount	2.2 µH		0.031 in	1.6 mm	0.8 mm	0.063 "		0.031 in		1608 Metric	0603	Shielded	20 %	125 °C	-40 C	0.8 mm

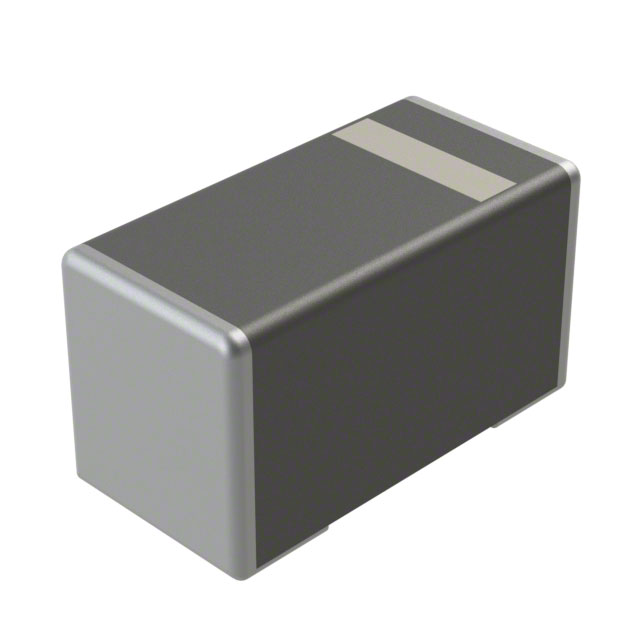

Taiyo Yuden MCEE1005TR22MHN	1 MHz	Metal	Multilayer	1.6 A	Surface Mount	220 nH	0402	0.02 in	1 mm		0.039 "		0.022 in	0.55 mm		0402 (1005 Metric)	Shielded	20 %	125 °C	-40 C		80 mOhm	1.6 A	0.5 mm
Taiyo Yuden MCEE1005TR47MHN	1 MHz	Metal	Multilayer	1.2 A	Surface Mount	470 nH	0402	0.02 in	1 mm		0.039 "		0.022 in	0.55 mm		0402 (1005 Metric)	Shielded	20 %	125 °C	-40 C		140 mOhm	1.2 A	0.5 mm
