MEAS U5300 Series

Catalog

PRESS XDCR U5374-000005-03KPA

Part	Port Style	Output [Min]	Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Size	Port Size	Port Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Operating Pressure	Operating Pressure	Accuracy	Output Type	Package / Case	Applications	Pressure Type	Maximum Pressure	Maximum Pressure
TE Connectivity AMP Connectors U5374-000005-03KPA	Threaded	0 mV	10 V	125 °C	-40 C	Temperature Compensated	62052.82 kPa	9000 PSI	Male NPT	0.25 "	0.25 in	30 VDC	12 VDC	Connector	20684.27 kPa	3000 PSI	0.1 %	Analog Voltage	Cylinder	Industrial Automation

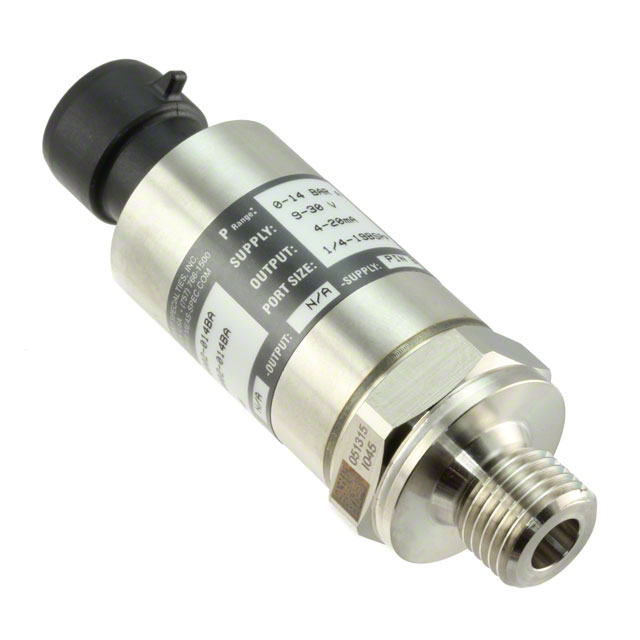

TE Connectivity AMP Connectors U5354-000002-014BA	Threaded	4 mA	20 mA	125 °C	-40 C	Temperature Compensated	4200 kPa	609.16 PSI	BSPP Male	0.25 "	0.25 in	30 VDC	9 V	Connector	1400 kPa	203.05 PSI	0.1 %	Analog Current	Cylinder	Industrial Automation
TE Connectivity AMP Connectors U5354-000005-03KPA	Threaded	4 mA	20 mA	125 °C	-40 C	Temperature Compensated	62052.82 kPa	9000 PSI	Male NPT	0.25 "	0.25 in	30 VDC	9 V	Connector	20684.27 kPa	3000 PSI	0.1 %	Analog Current	Cylinder	Industrial Automation
TE Connectivity AMP Connectors U5374-000005-015PG	Threaded	0 mV	10 V	125 °C	-40 C	Temperature Compensated			Male NPT	0.25 "	0.25 in	30 VDC	12 VDC	Connector	103.42 kPa	15 PSI	0.1 %	Analog Voltage	Cylinder	Industrial Automation	Vented Gauge	15 PSI	103.42 kPa
TE Connectivity AMP Connectors U5354-000002-002BA	Threaded	4 mA	20 mA	125 °C	-40 C	Temperature Compensated	600 kPa	87.02 PSI	BSPP Male	0.25 "	0.25 in	30 VDC	9 V	Connector	2 bar	29.01 PSI	0.1 %	Analog Current	Cylinder	Industrial Automation
