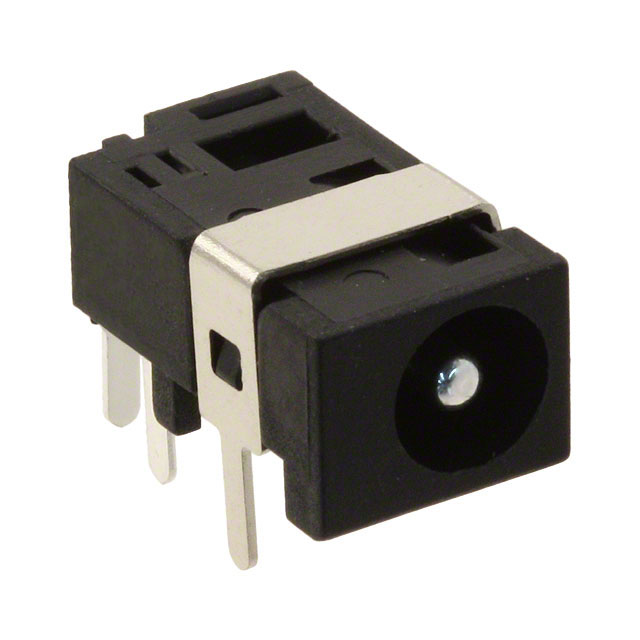

PJ-045 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
CONN DC POWER JACK RCP 2 POS SOLDER POT RA THRU-HOLE 3 TERMINAL 1 PORT
| Part | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Gender | Internal Switch(s) | Mating Length/Depth | Mating Length/Depth | Connector Type | Current Rating (Amps) | Mounting Type | Termination | Voltage - Rated | Features | Material Flammability Rating | Housing Material | Contact Material - Plating | Contact Material [custom] | Body Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 1.7 mm 4 mm | 0.067 " 0.157 in | EIAJ-2 | 2 | 3 | 1.65 mm | 0.065 in | 4.5 mm | 0.177 in | 85 °C | -25 °C | Shielded | Male | Single Switch Normally Closed | 8.35 mm | 0.329 in | Jack | 5 A | Right Angle Through Hole | Solder | 24 VDC | Board Guide | UL94 V-0 | ||||
Same Sky (Formerly CUI Devices) | 1.7 mm 4 mm | 0.067 " 0.157 in | EIAJ-2 | 2 | 3 | 1.65 mm | 0.065 in | 4.5 mm | 0.177 in | 85 °C | -25 °C | Shielded | Male | Single Switch Normally Closed | 8.35 mm | 0.329 in | Jack | 5 A | Right Angle Through Hole | Solder | 24 VDC | Board Guide | UL94 V-0 | Polybutylene Terephthalate (PBT) | Silver | Brass Copper Alloy | Black |
