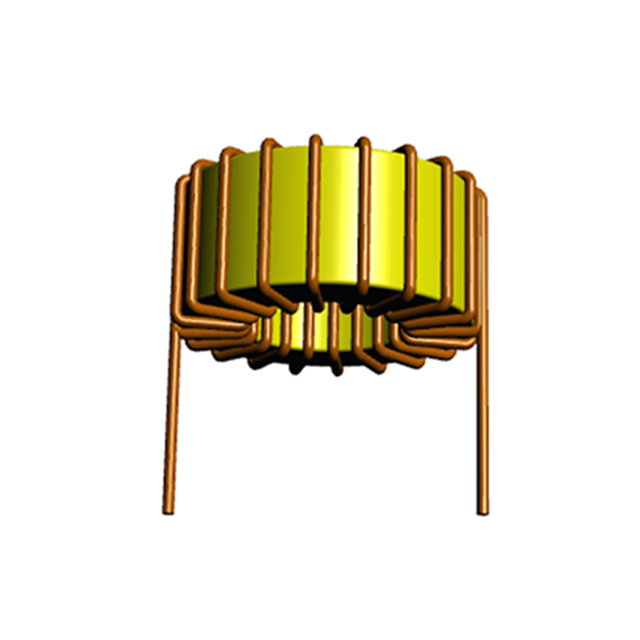

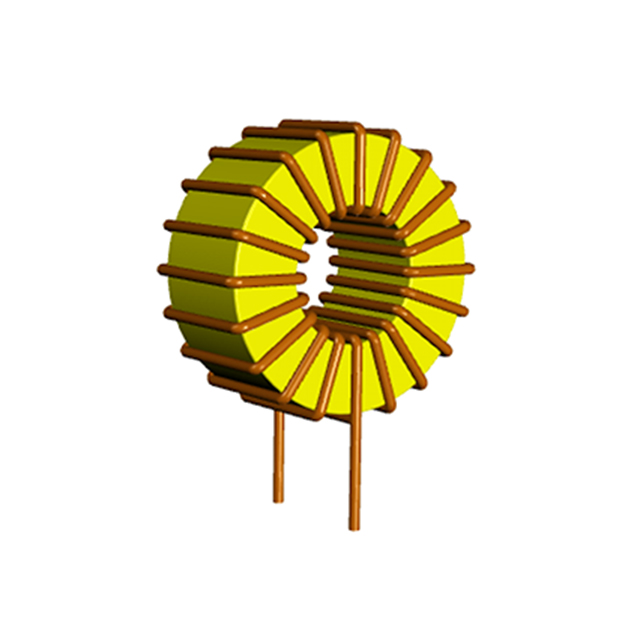

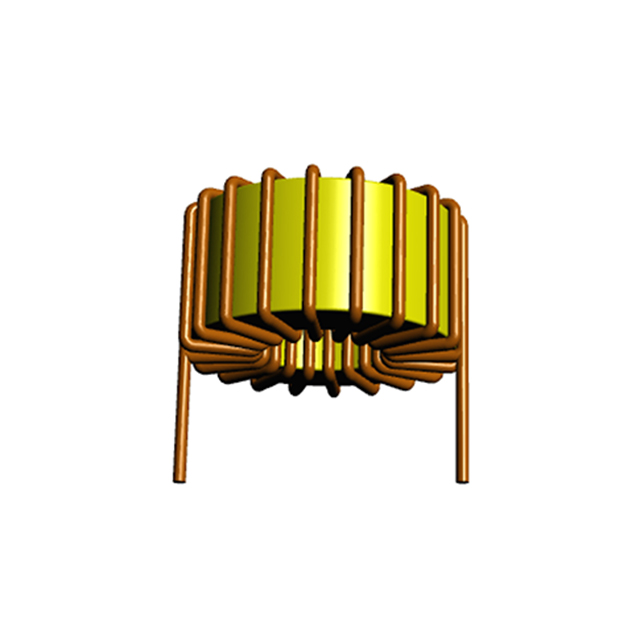

ATCA Series
Manufacturer: Abracon LLC
Beta
⌘K
POWER INDUCTORS - LEADED IND 200.00 UH 2.000 A 114.00 MOHM
| Part | Tolerance | Type | Inductance | Material - Core | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | Current Rating (Amps) | Size / Dimension | Size / Dimension [diameter] | Inductance Frequency - Test | Operating Temperature [Min] | Operating Temperature [Max] | DC Resistance (DCR) [Max] | Package / Case | Shielding | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [diameter] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 20 % | Toroidal | 200 µH | Iron Powder | 0.669 " | 17 mm | 2 A | 30 mm | 1.181 " | 1 kHz | -40 C | 105 ░C | 114 mOhm | Radial Horizontal (Open) | Unshielded | Through Hole | ||||||||
 Abracon LLC | 20 % | Toroidal | 960 µH | Iron Powder | 1 A | 1 kHz | -40 C | 105 ░C | 438 mOhm | Radial Vertical (Open) | Unshielded | Through Hole | 27 mm | 1.063 in | 13.5 mm | 0.531 in | ||||||||
 Abracon LLC | 20 % | Toroidal | 68 µH | Iron Powder | 19.5 mm | 7 A | 1.417 in | 1 kHz | -40 C | 105 ░C | 21 mOhm | Radial Horizontal (Open) | Unshielded | Through Hole | 36 mm | 0.768 in | ||||||||
 Abracon LLC | 20 % | Toroidal | 32 µH | Iron Powder | 0.453 in | 4 A | 0.945 " | 1 kHz | -40 C | 105 ░C | 21 mOhm | Radial Horizontal (Open) | Unshielded | Through Hole | 24 mm | 11.5 mm | ||||||||
 Abracon LLC | 20 % | Toroidal | 110 µH | Iron Powder | 0.453 in | 4 A | 0.945 " | 1 kHz | -40 C | 105 ░C | 42 mOhm | Radial Horizontal (Open) | Unshielded | Through Hole | 24 mm | 11.5 mm | ||||||||
 Abracon LLC | 20 % | Toroidal | 100 µH | Iron Powder | 4 A | 1 kHz | -40 C | 105 ░C | 42 mOhm | Radial Vertical (Open) | Unshielded | Through Hole | 32 mm | 1.26 in | 16 mm | 0.63 " | ||||||||
 Abracon LLC | 20 % | Toroidal | 25 µH | Iron Powder | 0.453 in | 5 A | 0.945 " | 1 kHz | -40 C | 105 ░C | 16 mOhm | Radial Horizontal (Open) | Unshielded | Through Hole | 24 mm | 11.5 mm | ||||||||
 Abracon LLC | 20 % | Toroidal | 75 µH | Iron Powder | 13.5 mm | 3 A | 27 mm | 1.063 in | 1 kHz | -40 C | 105 ░C | Radial Horizontal (Open) | Unshielded | Through Hole | 0.531 in | 39 mOhm | ||||||||
 Abracon LLC | 20 % | Toroidal | 200 µH | Iron Powder | 5 A | 1 kHz | -40 C | 105 ░C | Radial Vertical (Open) | Unshielded | Through Hole | 42.5 mm | 1.673 " | 21.5 mm | 0.846 in | 56 mOhm | ||||||||
 Abracon LLC | 20 % | Toroidal | 60 µH | Iron Powder | 13.5 mm | 4 A | 27 mm | 1.063 in | 1 kHz | -40 C | 105 ░C | 30 mOhm | Radial Horizontal (Open) | Unshielded | Through Hole | 0.531 in |
