LM74610-Q1 Series

0.48-V to 42-V, zero IQ automotive ideal diode controller

Catalog

0.48-V to 42-V, zero IQ automotive ideal diode controller

Part	Utilized IC / Part	Type	Supplied Contents	Function	Ratio - Input:Output [custom]	Mounting Type	Grade	Internal Switch(s)	Package / Case	Package / Case [custom]	Package / Case	Qualification	FET Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Applications

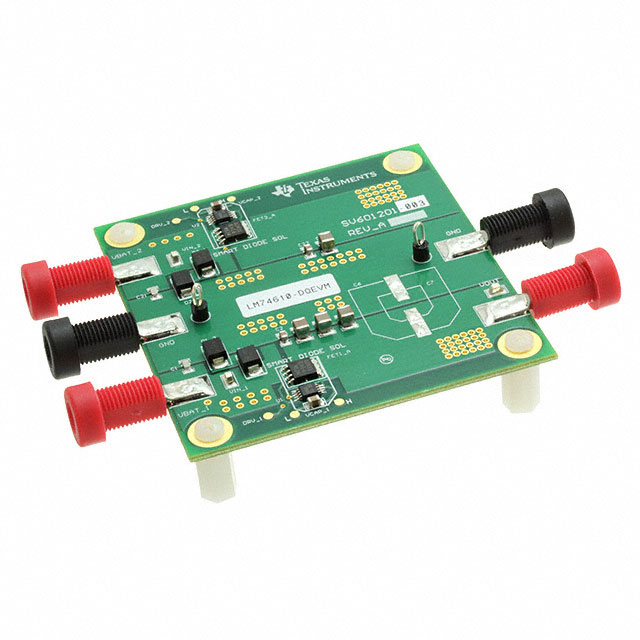

Texas Instruments LM74610-DQEVM	LM74610-Q1	Power Management	Board(s)	ORing Controller / Ideal Diode
Texas Instruments LM74610QDGKTQ1		N+1 ORing Controller			N:1	Surface Mount	Automotive		8-MSOP 8-TSSOP	0.118 in	3 mm	AEC-Q100	N-Channel	125 °C	-40 °C	42 V	General Purpose

Catalog

0.48-V to 42-V, zero IQ automotive ideal diode controller

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Exceeds HBM ESD Classification Level 2Device CDM ESD Classification Level C4BMaximum reverse voltage of 45 VNo Positive Voltage limitation to Anode TerminalCharge Pump Gate Driver for External N-ChannelMOSFETLower Power Dissipation than SchottkyDiode/PFET SolutionsLow Reverse Leakage CurrentZero IQFast 2-µs Response to Reverse Polarity–40°C to +125°C Operating Ambient TemperatureCan be Used in OR-ing ApplicationsMeets CISPR25 EMI SpecificationMeets Automotive ISO7637 TransientRequirements with a Suitable TVS DiodeNo Peak Current LimitQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Exceeds HBM ESD Classification Level 2Device CDM ESD Classification Level C4BMaximum reverse voltage of 45 VNo Positive Voltage limitation to Anode TerminalCharge Pump Gate Driver for External N-ChannelMOSFETLower Power Dissipation than SchottkyDiode/PFET SolutionsLow Reverse Leakage CurrentZero IQFast 2-µs Response to Reverse Polarity–40°C to +125°C Operating Ambient TemperatureCan be Used in OR-ing ApplicationsMeets CISPR25 EMI SpecificationMeets Automotive ISO7637 TransientRequirements with a Suitable TVS DiodeNo Peak Current Limit

Description

The LM74610-Q1 is a controller device that can be used with an N-Channel MOSFET in a reverse polarity protection circuitry. It is designed to drive an external MOSFET to emulate an ideal diode rectifier when connected in series with a power source. A unique advantage of this scheme is that it is not referenced to ground and thus has Zero Iq. The LM74610-Q1 controller provides a gate drive for an external N-Channel MOSFET and a fast response internal comparator to discharge the MOSFET Gate in the event of reverse polarity. This fast pull-down feature limits the amount and duration of reverse current flow if opposite polarity is sensed. The device design also meets CISPR25 Class 5 EMI specifications and automotive ISO7637 transient requirements with a suitable TVS diode. The LM74610-Q1 is a controller device that can be used with an N-Channel MOSFET in a reverse polarity protection circuitry. It is designed to drive an external MOSFET to emulate an ideal diode rectifier when connected in series with a power source. A unique advantage of this scheme is that it is not referenced to ground and thus has Zero Iq. The LM74610-Q1 controller provides a gate drive for an external N-Channel MOSFET and a fast response internal comparator to discharge the MOSFET Gate in the event of reverse polarity. This fast pull-down feature limits the amount and duration of reverse current flow if opposite polarity is sensed. The device design also meets CISPR25 Class 5 EMI specifications and automotive ISO7637 transient requirements with a suitable TVS diode.
