MKKDSNH Series

Catalog

CONN PC TERMINAL BLOCK 4 POS 5.08MM SOLDER ST THRU-HOLE 13.5A CARDBOARD

Part	Positions Per Level	Pitch	Pitch	Voltage	Wire Gauge [Max]	Wire Gauge [Min]	Mating Orientation	Wire Termination	Color	Features	Number of Levels	Current	Mounting Type	Housing Material	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Torque - Screw [Max]	Screw Thread
Phoenix Contact 1731857	4	5.08 mm	0.2 in	300 VDC	30 AWG	14 AWG	Horizontal with Board	Screw - Rising Cage Clamp	Green	High Wire Entry Level Interlocking (Side)	1	10 A	Through Hole

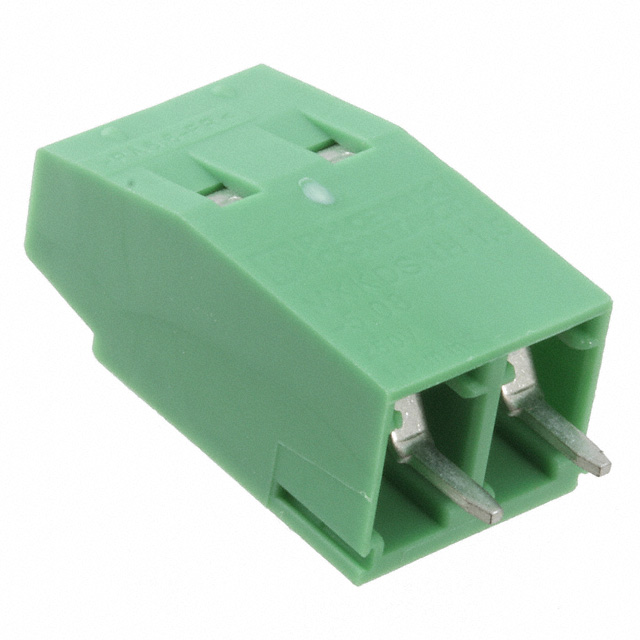

Phoenix Contact 1731828	2	5.08 mm	0.2 in	300 VDC	30 AWG	14 AWG	Horizontal with Board	Screw - Rising Cage Clamp	Green	High Wire Entry Level Interlocking (Side)	1	10 A	Through Hole	Polyamide (PA) Nylon	0.6 Nm	4.4 Lb-In	0.5 Nm	5.3 Lb-In	M3
