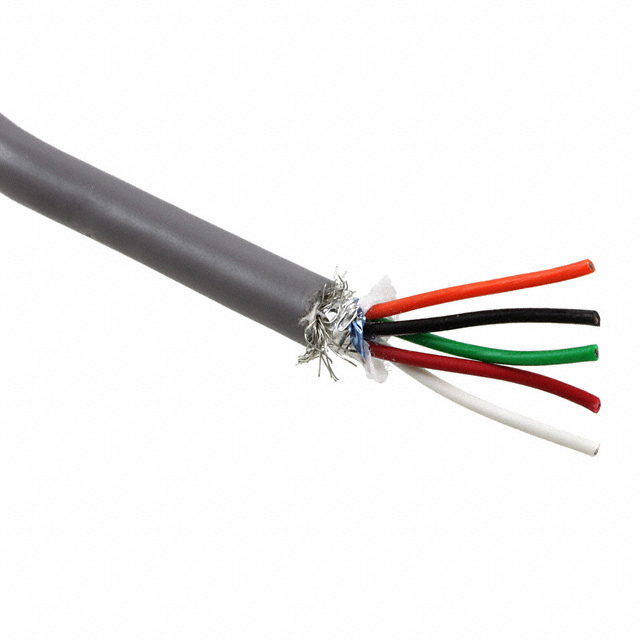

86305CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 5CON 22AWG SLATE SHLD 500'
| Part | Shield Material | Shield Coverage | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Shield Type | Voltage | Number of Conductors | Length | Length | Features | Conductor Insulation | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | Copper Tinned | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 6.27 mm | 0.247 in | 22 AWG | 34 AWG | 19 | ISO 10993 UL Style 2661 | Braid Foil | 300 VDC | 5 | 152.4 m | 500 ft | Biological Compatibility Drain Wire | Poly-Vinyl Chloride (PVC) | Slate |
ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | Copper Tinned | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 6.27 mm | 0.247 in | 22 AWG | 34 AWG | 19 | ISO 10993 UL Style 2661 | Braid Foil | 300 VDC | 5 | 152.4 m | 500 ft | Biological Compatibility Drain Wire | Poly-Vinyl Chloride (PVC) | Slate |
ALPHA WIRE | Aluminum Copper Tinned | 90 % 100 % | Copper Tinned | 1.016 mm | 0.04 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 6.27 mm | 0.247 in | 22 AWG | 34 AWG | 19 | ISO 10993 UL Style 2661 | Braid Foil | 300 VDC | 5 | 304.8 m | 1000 ft | Biological Compatibility Drain Wire | Poly-Vinyl Chloride (PVC) | Slate |
