3220-20 Series

Manufacturer: CNC Tech

Catalog

CONN SHROUDED HEADER (4 SIDES) HDR 20 POS 1.27MM SOLDER ST TOP ENTRY SMD

Part	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Type	Mounting Type	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Finish Thickness - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Style	Contact Finish - Mating	Connector Type	Material Flammability Rating	Number of Rows [custom]	Contact Finish - Post	Features	Insulation Material	Voltage Rating	Contact Material	Insulation Height [z]	Insulation Height [z]	Shrouding	Contact Shape	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height
CNC Tech 3220-20-0300-00	Flash	All	Male Pin	Surface Mount	Push-Pull	-40 C	105 ░C	Black	Flash	20	1.27 mm	0.05 in	Board to Cable/Wire	Gold	Header	UL94 V-0	2	Gold	Keying Slot	Nylon 9T Polyamide (PA9T)	50 VAC	Brass	0.213 "	5.4 mm	Shrouded - 4 Wall	Square	Solder	0.05 in	1.27 mm

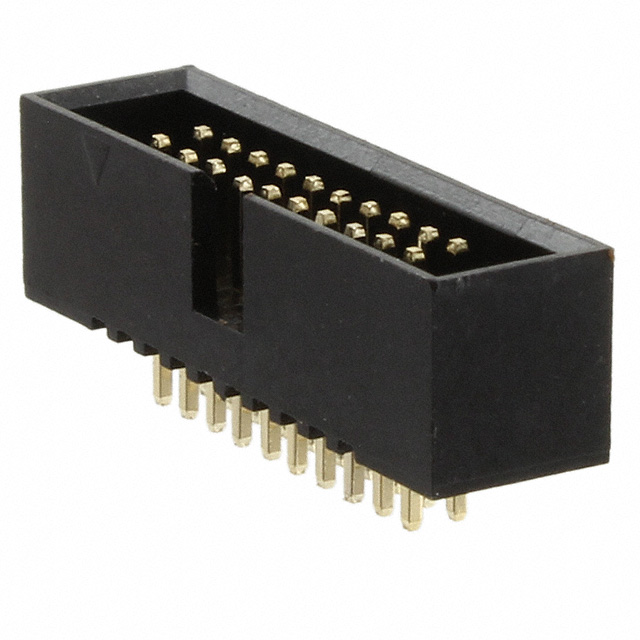

CNC Tech 3220-20-0100-00		All	Male Pin	Through Hole	Push-Pull	-40 C	105 ░C	Black	Flash	20	1.27 mm	0.05 in	Board to Cable/Wire	Gold	Header	UL94 V-0	2		Keying Slot	Nylon 9T Polyamide (PA9T)	50 VAC	Brass	0.213 "	5.4 mm	Shrouded - 4 Wall	Square	Solder	0.05 in	1.27 mm	0.083 in	2.11 mm
CNC Tech 3220-20-0300-00-TR	Flash	All	Male Pin	Surface Mount	Push-Pull	-40 C	105 ░C	Black	Flash	20	1.27 mm	0.05 in	Board to Cable/Wire	Gold	Header	UL94 V-0	2	Gold	Keying Slot Pick and Place	Nylon 9T Polyamide (PA9T)	50 VAC	Brass	0.213 "	5.4 mm	Shrouded - 4 Wall	Square	Solder	0.05 in	1.27 mm
CNC Tech 3220-20-0200-00		All	Male Pin	Right Angle Through Hole	Push-Pull	-40 C	105 ░C	Black	Flash	20	1.27 mm	0.05 in	Board to Cable/Wire	Gold	Header	UL94 V-0	2		Keying Slot	Nylon 9T Polyamide (PA9T)	50 VAC	Brass			Shrouded - 4 Wall	Square	Solder	0.05 in	1.27 mm	0.083 in	2.11 mm	0.201 in	5.1 mm
