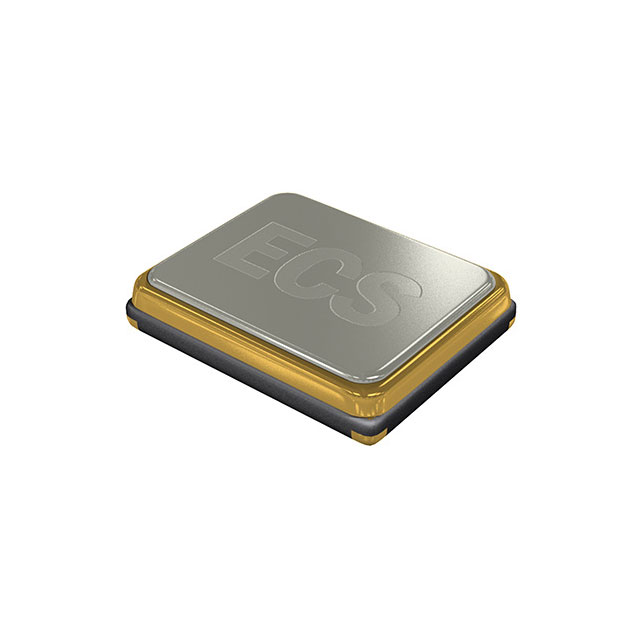

ECX-2236B2 Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 16.386 MHZ 10 PF +/-10 +/-20 -40 - +85C +/-2 PPM MAX. ESR = 70

Part	Operating Mode	Frequency Stability	Frequency	Frequency Tolerance	Package / Case	Load Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package
ECS Inc. ECS-163.84-10-36B2-CTN-TR	Fundamental	20 ppm	16.384 MHz	10 ppm	4-SMD No Lead	10 pF	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	85 °C	-40 C	70 Ohm	0.6 mm	0.024 in	2	2.5	4-SMD
ECS Inc. ECS-240-8-36B2-CWN-TR	Fundamental	15 ppm	24 MHz	10 ppm	4-SMD No Lead	8 pF	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	85 °C	-40 C	50 Ohms	0.6 mm	0.024 in	2	2.5	4-SMD
ECS Inc. ECS-120-10-36B2-CWY-TR	Fundamental	15 ppm	12 MHz	10 ppm	4-SMD No Lead	10 pF	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	85 °C	-30 ░C	130 Ohm	0.6 mm	0.024 in	2	2.5	4-SMD
ECS Inc. ECS-250-10-36B2-CTN-TR	Fundamental	20 ppm	25 MHz	10 ppm	4-SMD No Lead	10 pF	2.5 mm	0.079 in	0.098 in	2 mm	MHz Crystal	Surface Mount	85 °C	-40 C	50 Ohms	0.6 mm	0.024 in	2	2.5	4-SMD
