745782 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

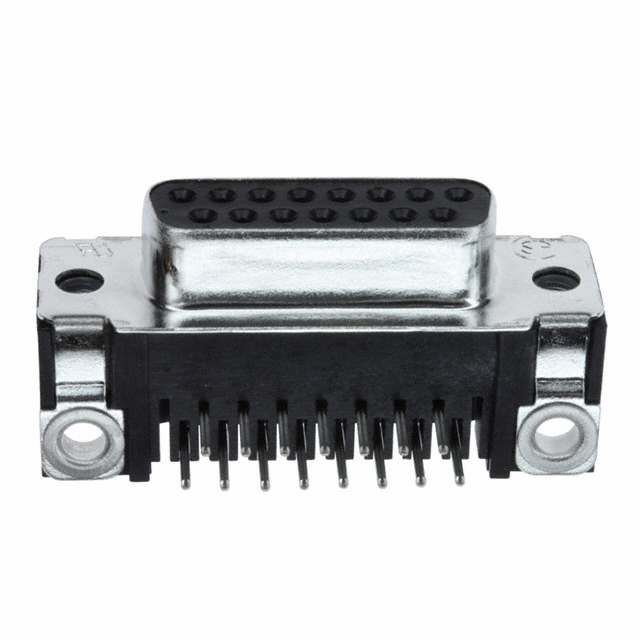

CONN D-SUB RCPT 15POS R/A SLDR
| Part | Contact Material | Color | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Material Flammability Rating | Backset Spacing | Backset Spacing | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination | Connector Style | Shell Size, Connector Layout | Features | Number of Positions | Mounting Type | Connector Type | Contact Finish | Flange Feature | Flange Feature | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Phosphor Bronze | Black | Thermoplastic | 125 VDC | -55 C | 105 ░C | 2 | UL94 V-0 | 8.08 mm | 0.318 " | 30 Áin | 0.76 Ám | Signal | Solder | D-Sub | 2 | Ground Strap | 15 | Right Angle Through Hole | Receptacle Female Sockets | Gold | Housing/Shell | 4-40 | 6 A |
