45230 Series

Catalog

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 1.27 MM, 2 ROWS, 30 CONTACTS, THROUGH HOLE STRAIGHT

Part	Mated Stacking Heights	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Termination	Fastening Type	Contact Type	Contact Shape	Insulation Material	Material Flammability Rating	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish - Post	Voltage Rating	Mounting Type	Contact Finish - Mating	Shrouding	Style	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Features	Number of Rows [custom]	Connector Type	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
3M Electronic Specialty 45230-600230	5.84 mm 6.6 mm 7.21 mm 8.13 mm	200 µin	5.08 µm	-65 ░C	125 °C	2.4 mm	0.094 in	1.27 mm	0.05 in	Solder	Push-Pull	Male Pin	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	5.65 mm	0.222 in	All	Tin	125 VDC	Through Hole	Gold	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	0.05 in	1.27 mm	Keying Slot	2	Header	30	0.76 Ám	30 Áin
3M Electronic Specialty 45230-200200	5.84 mm 6.6 mm 7.21 mm 8.13 mm	100 µin	2.54 µm	-65 ░C	125 °C			1.27 mm	0.05 in	Solder	Push-Pull	Male Pin	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	5.65 mm	0.222 in	All	Tin	125 VDC	Surface Mount	Gold	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	0.05 in	1.27 mm	Keying Slot Pick and Place	2	Header	30			Flash
3M Electronic Specialty 45230-220230	5.84 mm 6.6 mm 7.21 mm 8.13 mm	200 µin	5.08 µm	-65 ░C	125 °C			1.27 mm	0.05 in	Solder	Latch Lock/Eject Hooks	Male Pin	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	5.65 mm	0.222 in	All	Tin	125 VDC	Surface Mount	Gold	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	0.05 in	1.27 mm	Keying Slot Pick and Place	2	Header	30	0.76 Ám	30 Áin
3M Electronic Specialty 45230-520200		100 µin	2.54 µm	-65 ░C	125 °C	2.4 mm	0.094 in	1.27 mm	0.05 in	Solder	Latch Lock/Eject Hooks	Male Pin	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	5.33 mm	0.21 in	All	Tin	125 VDC	Right Angle Through Hole	Gold	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	0.05 in	1.27 mm	Keying Slot	2	Header	30			Flash
3M Electronic Specialty 4523001C90S
3M Electronic Specialty 45230-200230	5.84 mm 6.6 mm 7.21 mm 8.13 mm	200 µin	5.08 µm	-65 ░C	125 °C			1.27 mm	0.05 in	Solder	Push-Pull	Male Pin	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	5.65 mm	0.222 in	All	Tin	125 VDC	Surface Mount	Gold	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	0.05 in	1.27 mm	Keying Slot Pick and Place	2	Header	30	0.76 Ám	30 Áin

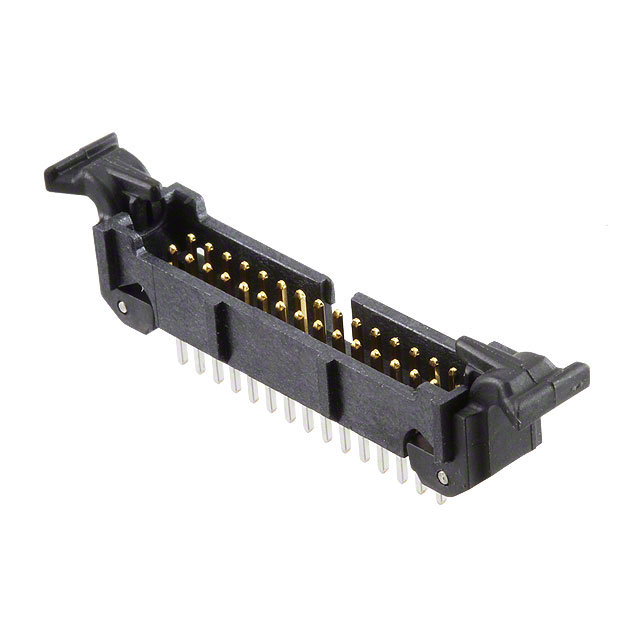

3M Electronic Specialty 45230-620230	5.84 mm 6.6 mm 7.21 mm 8.13 mm	200 µin	5.08 µm	-65 ░C	125 °C	2.4 mm	0.094 in	1.27 mm	0.05 in	Solder	Latch Lock/Eject Hooks	Male Pin	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	5.65 mm	0.222 in	All	Tin	125 VDC	Through Hole	Gold	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	0.05 in	1.27 mm	Keying Slot	2	Header	30	0.76 Ám	30 Áin
3M Electronic Specialty 45230-220200	5.84 mm 6.6 mm 7.21 mm 8.13 mm	100 µin	2.54 µm	-65 ░C	125 °C			1.27 mm	0.05 in	Solder	Latch Lock/Eject Hooks	Male Pin	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	5.65 mm	0.222 in	All	Tin	125 VDC	Surface Mount	Gold	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	0.05 in	1.27 mm	Keying Slot Pick and Place	2	Header	30			Flash

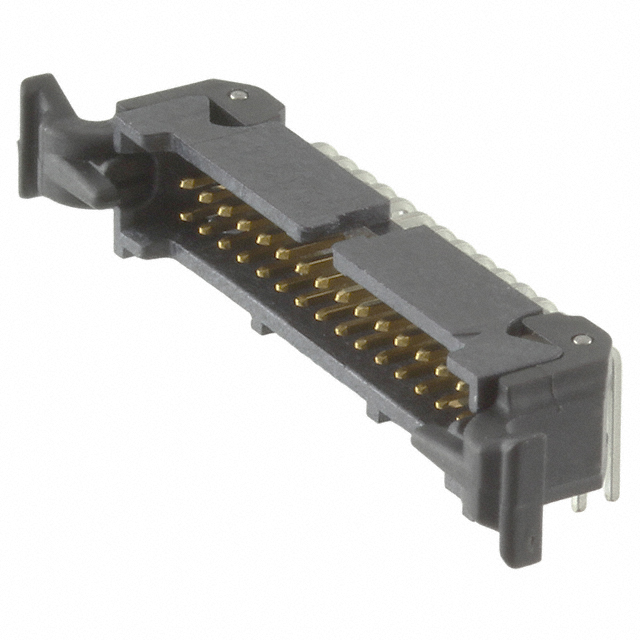

3M Electronic Specialty 45230-520230		200 µin	5.08 µm	-65 ░C	125 °C	2.4 mm	0.094 in	1.27 mm	0.05 in	Solder	Latch Lock/Eject Hooks	Male Pin	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	5.33 mm	0.21 in	All	Tin	125 VDC	Right Angle Through Hole	Gold	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	0.05 in	1.27 mm	Keying Slot	2	Header	30	0.76 Ám	30 Áin
3M Electronic Specialty 45230-600200	5.84 mm 6.6 mm 7.21 mm 8.13 mm	100 µin	2.54 µm	-65 ░C	125 °C	2.4 mm	0.094 in	1.27 mm	0.05 in	Solder	Push-Pull	Male Pin	Square	Liquid Crystal Polymer (LCP)	UL94 V-0	5.65 mm	0.222 in	All	Tin	125 VDC	Through Hole	Gold	Shrouded - 4 Wall	Board to Cable/Wire	Copper Alloy	0.05 in	1.27 mm	Keying Slot	2	Header	30			Flash
