G23F1C-P Series
Manufacturer: ODU
Beta
⌘K

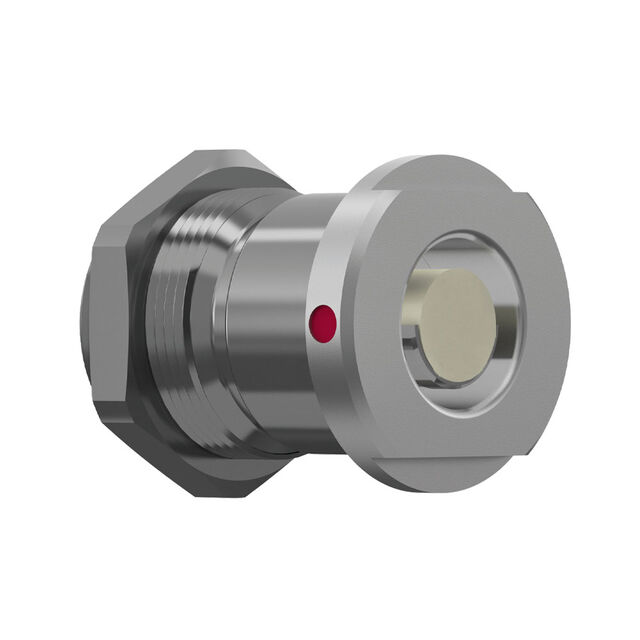

ODU MINI-SNAP RECEPT, STY 2, SZ
| Part | Number of Positions | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Mounting Type | Shielding | Current Rating (Amps) | Contact Finish - Mating | Connector Type | Ingress Protection | Primary Material | Shell Size - Insert | Shell Material | Orientation [custom] | Fastening Type | Applications | Insert Material | Voltage Rating | Shell Finish | Material Flammability Rating | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4 | Brass | 120 °C | -40 C | Silver | Panel Mount | Unshielded | 24 A | Gold | Receptacle Female Sockets | IP68 - Dust Tight Waterproof | Metal | 3 TPI | Brass | 1 | Push-Pull | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | 550 VDC | Chrome over Nickel | UL94 V-0 | Bulkhead - Rear Side Nut |
