305-068 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 68POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Finish	Read Out	Number of Rows [custom]	Color	Mounting Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions/Bay/Row	Number of Positions	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Gender

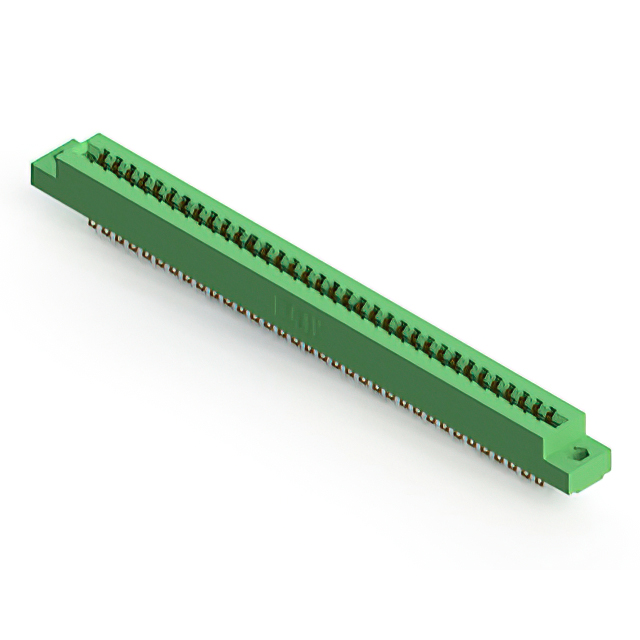

EDAC Inc. 305-068-555-204	2	Polyester Thermoplastic	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	Dual	2	Green	Board Edge Straddle Mount	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	34	68 positions	Card Extender	Solder	-40 C	105 ░C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Female
EDAC Inc. 305-068-500-278	2	Polyester Thermoplastic	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	Dual	2	Green	Panel Mount	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	34	68 positions		Solder Eyelet(s)	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Female

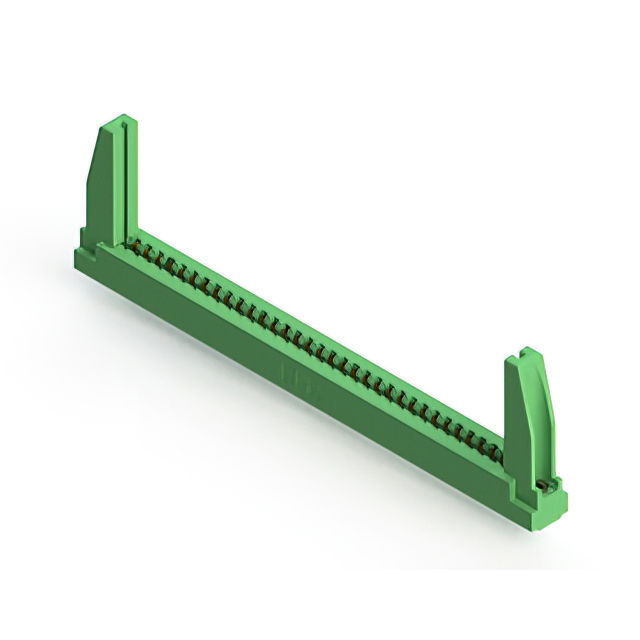

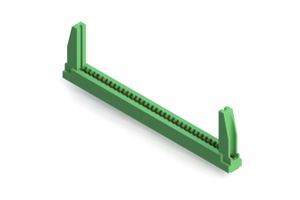

EDAC Inc. 305-068-521-578	2	Polyester Thermoplastic	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	Dual	2	Green	Panel Mount Through Hole	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	34	68 positions		Solder	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Female

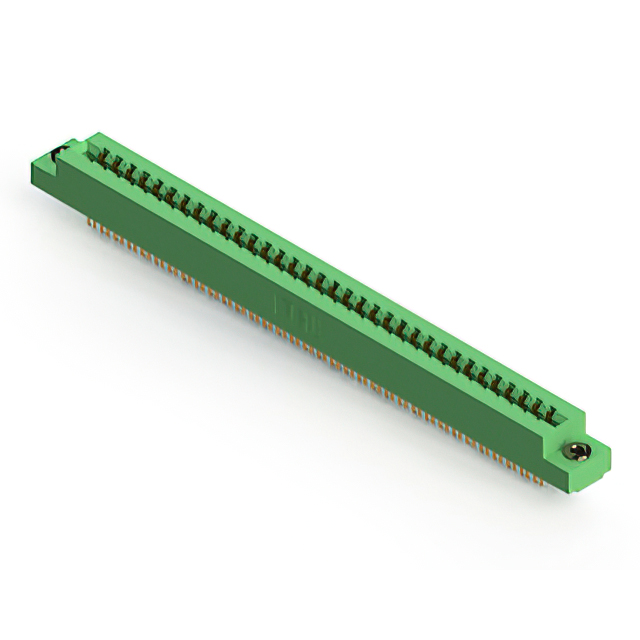

EDAC Inc. 305-068-500-503	2	Polyester Thermoplastic	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	Dual	2	Green	Panel Mount	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	34	68 positions		Solder Eyelet(s)	-40 C	105 ░C	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Female

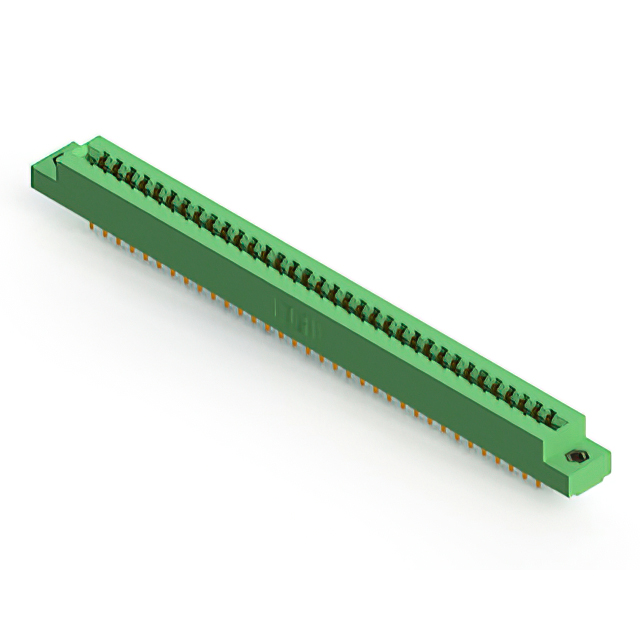

EDAC Inc. 305-068-520-507	2	Polyester Thermoplastic	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	Dual	2	Green	Panel Mount Through Hole	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	34	68 positions		Solder	-40 C	105 ░C	Flush Mount M3 Threaded Insert Top Opening			Female

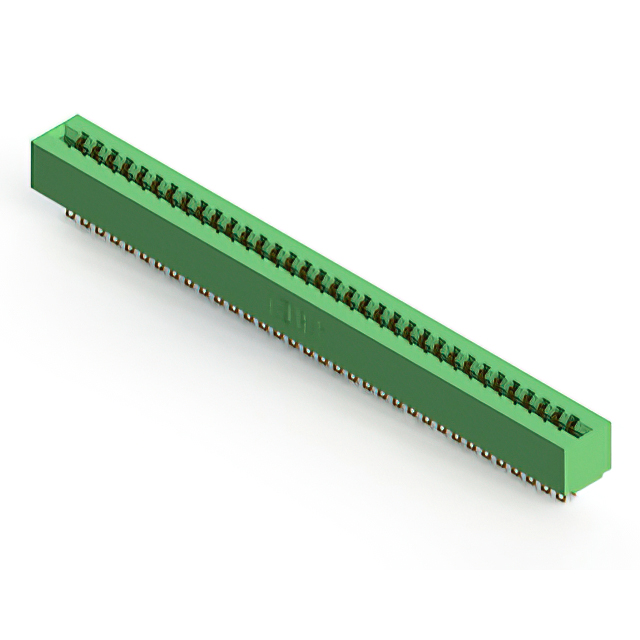

EDAC Inc. 305-068-555-201	2	Polyester Thermoplastic	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	Dual	2	Green	Board Edge Straddle Mount	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	34	68 positions	Card Extender	Solder	-40 C	105 ░C				Female
EDAC Inc. 305-068-520-258	2	Polyester Thermoplastic	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	Dual	2	Green	Panel Mount Through Hole	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	34	68 positions		Solder	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Female
EDAC Inc. 305-068-500-203	2	Polyester Thermoplastic	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	Dual	2	Green	Panel Mount	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	34	68 positions		Solder Eyelet(s)	-40 C	105 ░C	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Female

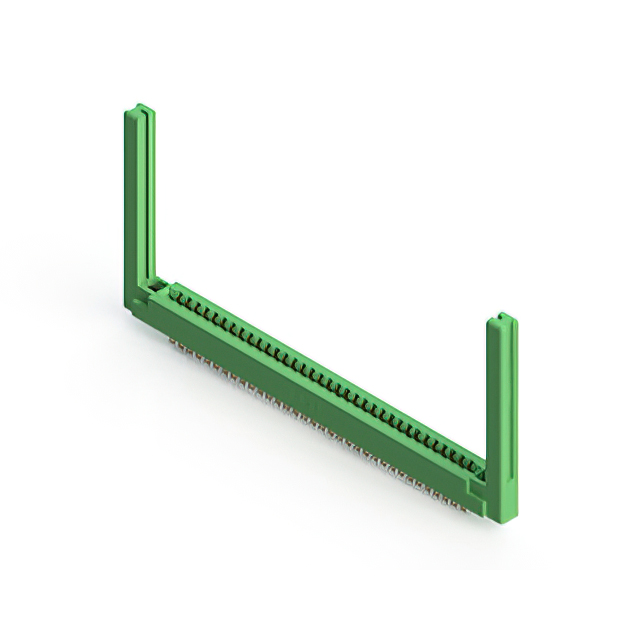

EDAC Inc. 305-068-555-558	2	Polyester Thermoplastic	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	Dual	2	Green	Board Edge Straddle Mount	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	34	68 positions	Card Extender Card Guides	Solder	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Female

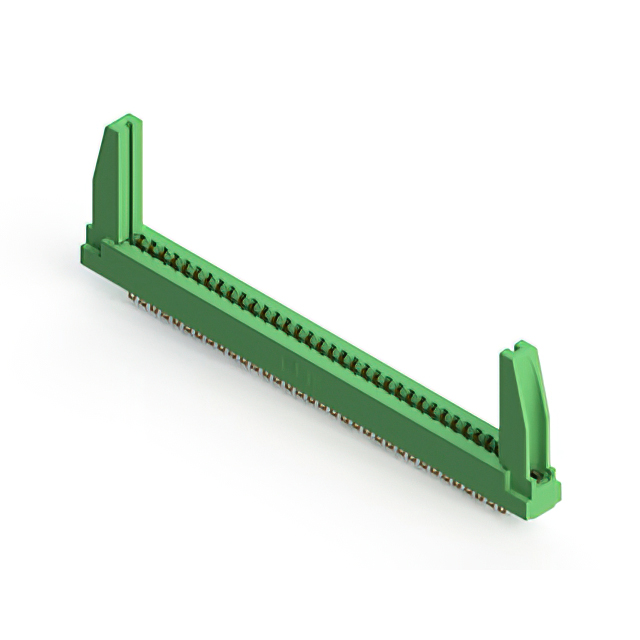

EDAC Inc. 305-068-555-278	2	Polyester Thermoplastic	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Gold	Dual	2	Green	Board Edge Straddle Mount	Copper Alloy	0.25 Ám	10 Áin	3.96 mm	0.156 in	34	68 positions	Card Extender Card Guides	Solder	-40 C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening			Female
