FGD3245G2-F085C Series

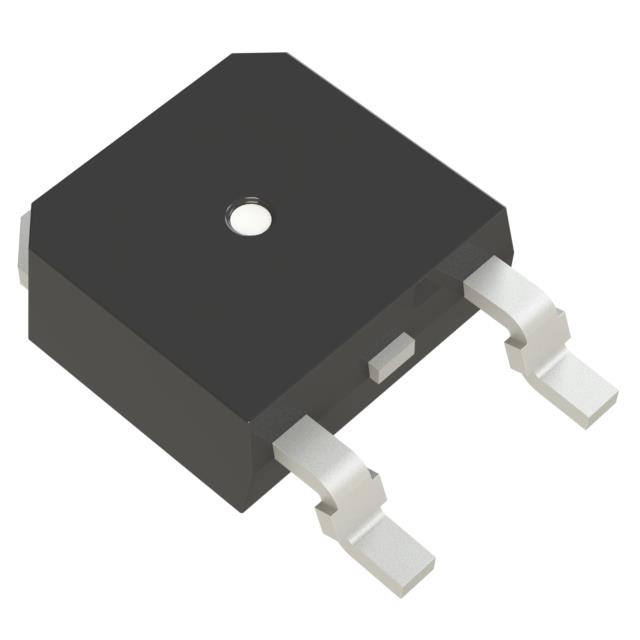

Ignition IGBT, 450V, 23A, 1.3V, 320mJ, DPAK<BR>EcoSPARK® II, N-Channel Ignition

Catalog

Ignition IGBT, 450V, 23A, 1.3V, 320mJ, DPAK<BR>EcoSPARK® II, N-Channel Ignition

Part	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	Qualification	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge	Voltage - Collector Emitter Breakdown (Max)	Supplier Device Package	Grade	Current - Collector (Ic) (Max)	Package / Case	Mounting Type	Td (on/off) @ 25°C	Input Type	Test Condition	Td (on/off) @ 25°C	Td (on/off) @ 25°C
ON Semiconductor FGD3245G2-F085	150 W	1.25 V	AEC-Q101	-40 C	175 °C	23 nC	450 V	TO-252AA	Automotive	23 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount	5.4 µs 900 ns	Logic
ON Semiconductor FGD3245G2-F085C	150 W	1.25 V	AEC-Q101	-40 C	175 °C	23 nC	450 V	TO-252 (DPAK)	Automotive	23 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount		Logic	5 V 6.5 A 300 V 1000 Ohm	5.4 µs	0.9 µs
ON Semiconductor FGD3245G2-F085V	150 W	1.25 V	AEC-Q101	-55 °C	175 ░C	23 nC	450 V	DPAK	Automotive	23 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	Surface Mount		Logic

Catalog

Ignition IGBT, 450V, 23A, 1.3V, 320mJ, DPAK<BR>EcoSPARK® II, N-Channel Ignition

Key Features

• SCIS Energy = 320 mJ at TJ= 25°C

• Logic Level Gate Drive

• Low Saturation Voltage

• Qualified to AEC Q101

• RoHS Compliant

Description

The FGB3245G2_F085 and FGD3245G2 are 450V N-channel IGBTs designed in ON Semiconductor's EcoSPARK® 2 technology, which helps in eliminating external protection circuitry. The technology is optimized for driving the coil in the harsh environment of automotive ignition systems and offers outstanding Vsatand SCIS Energy capability also at elevated operating temperatures. The logic level gate input is ESD protected and features an integrated gate resistor. An integrated zener-circuitry clamps the IGBT's collecter- to-emitter voltage at 450 V, which enables systems requiring a higher spark voltage.
