1986300 Series

Catalog

TERM BLOCK PLUG 6POS STR 5MM

Part	Material Flammability Rating	Mounting Type	Color	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Strip Length	Insulation Height [z]	Insulation Height [z]	Contact Material	Positions Per Level	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Type	Termination Style	Current - UL	Number of Positions	Contact Mating Finish	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

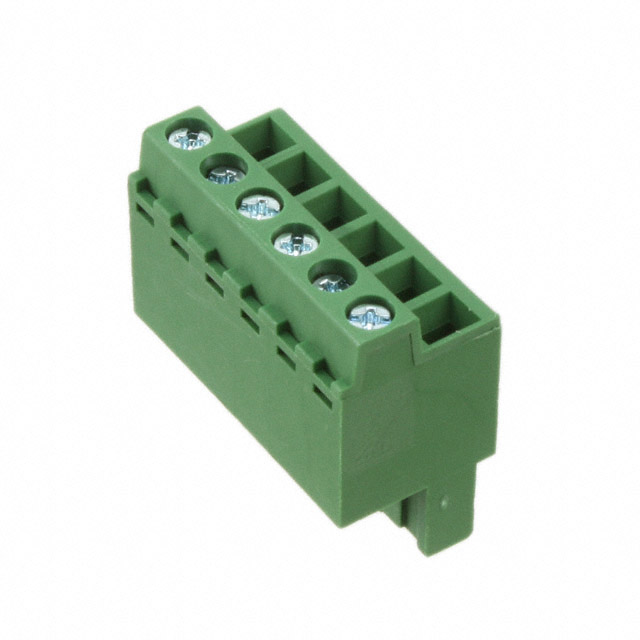

TE Connectivity Raychem Cable Protection 1986300-6	UL94 V-0	Free Hanging (In-Line)	Green	1	14 AWG	24 AWG	10 mm	0.587 in	14.91 mm	Phosphor Bronze	6	5 mm	0.197 in	0.51 Nm	4.5 Lb-In	300 V	-40 °C	105 ░C	Plug Female Sockets	Screw - Pressure Clip	16 A	6	Tin	2 mm˛	0.2 mm˛

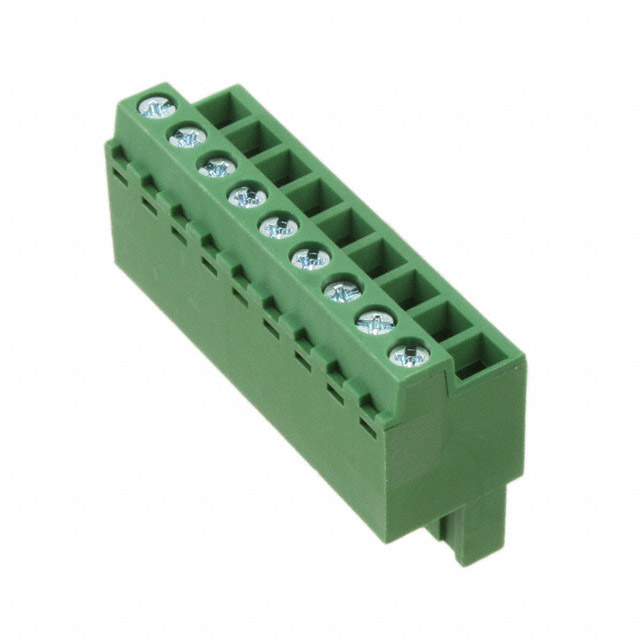

TE Connectivity Raychem Cable Protection 1986300-9	UL94 V-0	Free Hanging (In-Line)	Green	1	14 AWG	24 AWG	10 mm	0.587 in	14.91 mm	Phosphor Bronze	9	5 mm	0.197 in	0.51 Nm	4.5 Lb-In	300 V	-40 °C	105 ░C	Plug Female Sockets	Screw - Pressure Clip	16 A	9	Tin	2 mm˛	0.2 mm˛	0.2 mm²	2 mm²

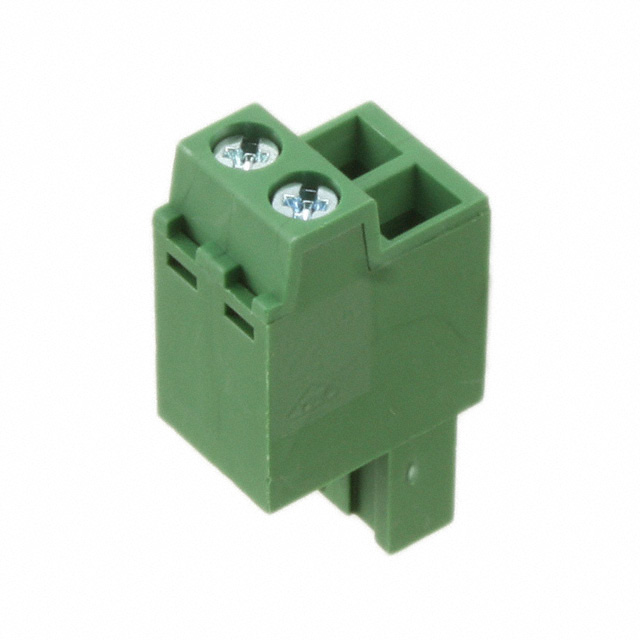

TE Connectivity Raychem Cable Protection 1986300-2	UL94 V-0	Free Hanging (In-Line)	Green	1	14 AWG	24 AWG	10 mm	0.587 in	14.91 mm	Phosphor Bronze	2	5 mm	0.197 in	0.51 Nm	4.5 Lb-In	300 V	-40 °C	105 ░C	Plug Female Sockets	Screw - Pressure Clip	16 A	2	Tin			0.2 mm²	2 mm²
