TP1.5KE27CA Series

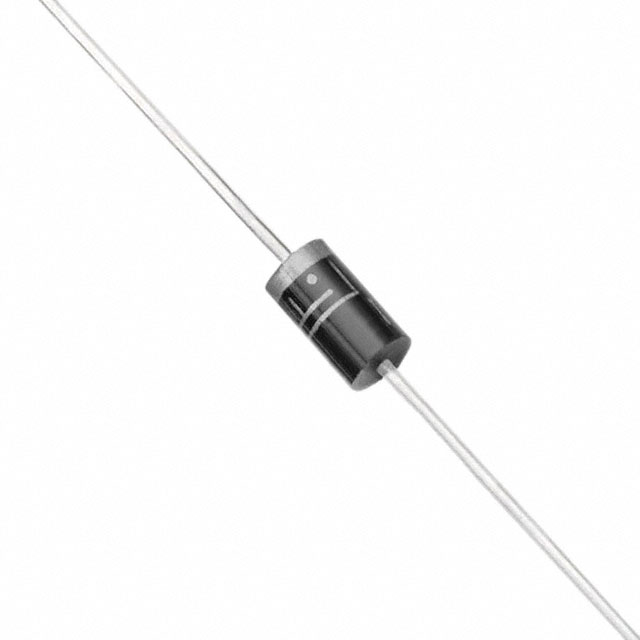

TVS DIODE AXIAL LEAD - 1.5KE91A AMMO BOX
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
TVS DIODE AXIAL LEAD - 1.5KE91A AMMO BOX
...
| Part | Package / Case | Voltage - Clamping (Max) @ Ipp | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) [Min] | Mounting Type | Type | Power - Peak Pulse | Power - Peak Pulse | Supplier Device Package | Applications | Power Line Protection | Operating Temperature [Min] | Operating Temperature [Max] | Current - Peak Pulse (10/1000µs) | Unidirectional Channels [custom] | Voltage - Clamping (Max) @ Ipp [Max] | Bidirectional Channels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Littelfuse/Commercial Vehicle Products | Axial DO-201AA DO-27 | 30.6 V | 18.8 V | 20.9 V | Through Hole | Zener | 1.5 kW | 1500 W | DO-201 | General Purpose | -55 °C | 175 ░C | 49.7 A | 1 | |||
 Littelfuse/Commercial Vehicle Products | Axial DO-201AA DO-27 | 20.5 V | Through Hole | Zener | 1.5 kW | 1500 W | DO-201 | General Purpose | -55 °C | 175 ░C | 45.8 A | 1 | 34.86 V | ||||
Littelfuse/Commercial Vehicle Products | Axial DO-201AA DO-27 | 17.1 V | 18 V | Through Hole | Zener | 1.5 kW | 1500 W | DO-201 | General Purpose | -55 °C | 175 ░C | 54.9 A | 29.09 V | 1 | |||
Littelfuse/Commercial Vehicle Products | Axial DO-201AA DO-27 | 43.6 V | 45.95 V | Through Hole | Zener | 1.5 kW | 1500 W | DO-201 | General Purpose | -55 °C | 175 ░C | 21.7 A | 73.61 V | 1 | |||
Littelfuse/Commercial Vehicle Products | Axial DO-201AA DO-27 | 13.6 V | 14.4 V | Through Hole | Zener | 1.5 kW | 1500 W | DO-201 | General Purpose | -55 °C | 175 ░C | 67.6 A | 23.63 V | 1 | |||
Littelfuse/Commercial Vehicle Products | Axial DO-201AA DO-27 | 777 V | 486 V | 486 V | Through Hole | Zener | 1.5 kW | 1500 W | DO-201 | General Purpose | -55 °C | 175 ░C | 2 A | 1 | |||
Littelfuse/Commercial Vehicle Products | Axial DO-201AA DO-27 | 70.1 V | 77.9 V | Through Hole | Zener | 1.5 kW | 1500 W | DO-201 | General Purpose | -55 °C | 175 ░C | 13.5 A | 113 V | 1 | |||
Littelfuse/Commercial Vehicle Products | Axial DO-201AA DO-27 | 28.2 V | 31.4 V | Through Hole | Zener | 1.5 kW | 1500 W | DO-201 | General Purpose | -55 °C | 175 ░C | 33.3 A | 45.7 V | 1 | |||
Littelfuse/Commercial Vehicle Products | Axial DO-201AA DO-27 | 740 V | 460 V | 513 V | Through Hole | Zener | 1.5 kW | 1500 W | DO-201 | General Purpose | -55 °C | 175 ░C | 2 A | 1 | |||
Littelfuse/Commercial Vehicle Products | Axial DO-201AA DO-27 | 344.4 V | 198 V | Through Hole | Zener | 1.5 kW | 1500 W | DO-201 | General Purpose | -55 °C | 175 ░C | 4.6 A | 1 |
Key Features
• High-reliability and automotive-grade AEC-Q101–qualified
• Glass passivated chip junction in DO-201 Package
• 1.5 kW peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01 %
• Fast response time: typically less than 1.0ps from 0 Volts to BV min
• Excellent clamping capability
• Typical failure mode is short from over-specified voltage or current
• Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
• IEC-61000-4-2 ESD 30 kV (Air), 30 kV (Contact)
• ESD protection of data lines in accordance with IEC 61000-4-2
• EFT protection of data lines in accordance with IEC 61000-4-4
Description
AI
The TP1.5KE Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
