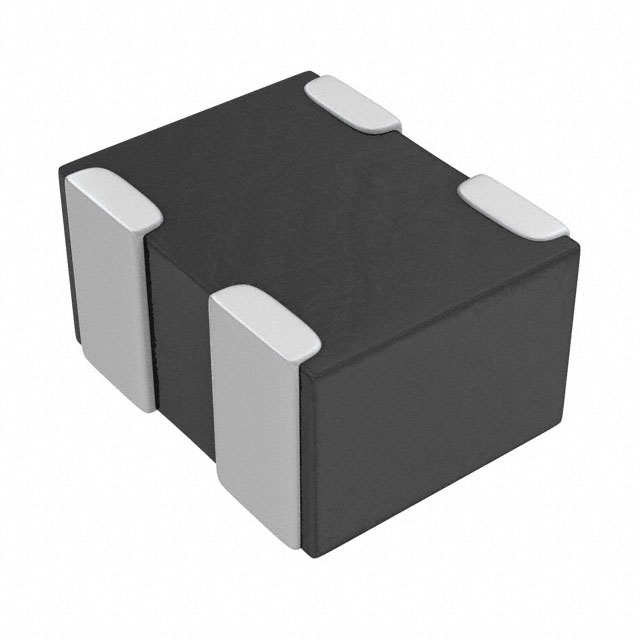

EXC-14 Series

Catalog

CMC 100MA 2LN 12 OHM SMD

Part	Voltage Rating - DC	DC Resistance (DCR) (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Max) [Max]	Mounting Type	Impedance @ Frequency	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	Height (Max) [Max]	Height (Max) [Max]	Package / Case	Package / Case	Package / Case	Package / Case	Features	DC Resistance (DCR) (Max)
Panasonic Industrial Automation Sales EXC-14CH120U	5 V	1 Ohm	0.65 mm	0.026 in	0.85 mm	0.033 "	100 mA	Surface Mount	12 Ohms	2	85 °C	-40 °C	0.5 mm	0.02 in	0302 (0806 Metric)	4 Lead
Panasonic Industrial Automation Sales EXC-14CG430U	5 V	2.7 Ohm	0.65 mm	0.026 in	0.85 mm	0.033 "	100 mA	Surface Mount	43 Ohms	2	85 °C	-40 °C	0.5 mm	0.02 in			0805 Metric	0302
Panasonic Industrial Automation Sales EXC-14CH350U	5 V	1.5 Ohm	0.65 mm	0.026 in	0.85 mm	0.033 "	100 mA	Surface Mount	35 Ohms	2	85 °C	-40 °C	0.5 mm	0.02 in	0302 (0806 Metric)	4 Lead
Panasonic Industrial Automation Sales EXC-14CS900H	5 V		0.66 mm	0.026 in	0.86 mm	0.034 in	100 mA	Surface Mount	90 Ohms	2	85 °C	-40 °C	0.5 mm	0.02 in	0302			0806 Metric	TVS Diode ESD Protection	3.3 Ohm
Panasonic Industrial Automation Sales EXC-14CP221U	5 V	700 mOhm	0.65 mm	0.026 in	0.85 mm	0.033 "	200 mA	Surface Mount	220 Ohms	2	85 °C	-40 °C	0.5 mm	0.02 in	0302			0806 Metric
Panasonic Industrial Automation Sales EXC-14CG120U	5 V	2 Ohm	0.65 mm	0.026 in	0.85 mm	0.033 "	130 mA	Surface Mount	12 Ohms	2	85 °C	-40 °C	0.5 mm	0.02 in			0805 Metric	0302
