BD6225 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K

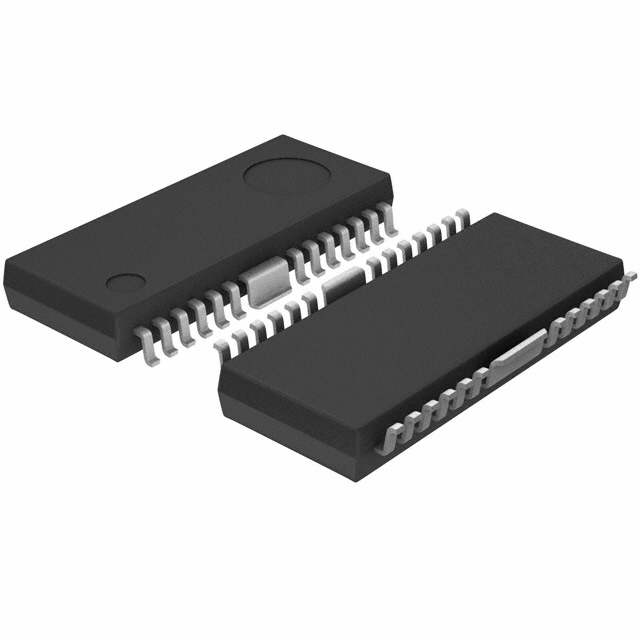

IC HALF BRIDGE DRVR 500MA 25HSOP
| Part | Technology | Interface | Package / Case [x] | Package / Case [x] | Package / Case | Output Configuration | Load Type | Current - Output / Channel | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Rds On (Typ) | Applications | Mounting Type | Voltage - Load [Min] | Voltage - Load [Max] | Fault Protection | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | Power MOSFET | Logic | 0.213 in | 5.4 mm | 2 Heat Tabs 25-SOP | Half Bridge (4) | Inductive | 500 mA | 25-HSOP | 85 C | -40 ¯C | 1.5 Ohm | DC Motors General Purpose | Surface Mount | 6 V | 15 V | Current Limiting Over Temperature Over Voltage UVLO | 15 V | 6 V |
