NPRN244 Series
Manufacturer: Sullins Connector Solutions
Catalog

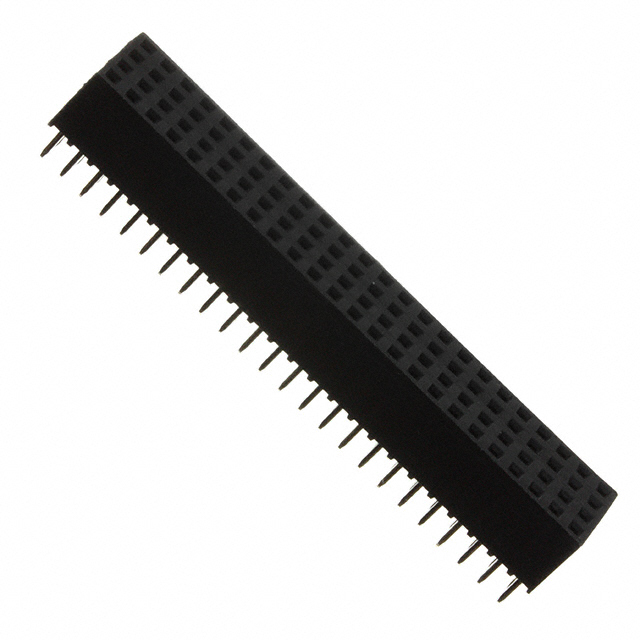

BOARD CONNECTOR, 96 CONTACT(S), 4 ROW(S), FEMALE, STRAIGHT, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR
| Part | Contact Finish - Post | Mounting Type | Termination | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Post | Contact Length - Post | Contact Material | Contact Shape | Number of Positions Loaded | Insulation Color | Number of Positions | Material Flammability Rating | Insulation Height | Insulation Height | Connector Type | Contact Type | Fastening Type | Contact Finish - Mating | Pitch - Mating [x] | Pitch - Mating [x] | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Tin | Through Hole | Solder | Nylon 6T Polyamide (PA6T) | -40 °C | 105 ░C | 0.094 in | 2.4 mm | Phosphor Bronze | Square | All | Black | 96 | UL94 V-0 | 6.35 mm | 0.25 in | Header | Forked | Push-Pull | Gold | 0.079 in | 2 mm | 2 A | 0.079 in | 2 mm | 0.51 µm | 20 µin |
