CAT25 Series

Catalog

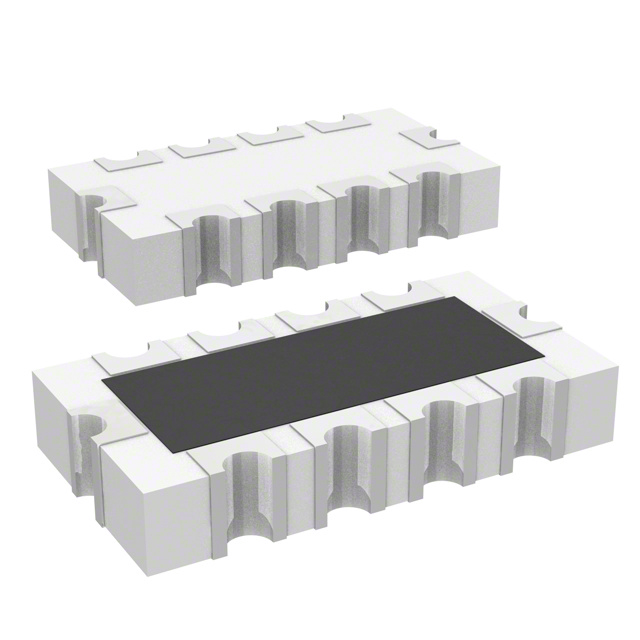

RES ARRAY 8 RES 470 OHM 1608

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Resistance (Ohms)	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Number of Resistors	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Circuit Type	Package / Case	Number of Pins	Power Per Element	Temperature Coefficient	Resistance (Ohms) [custom]
Bourns Inc. CAT25-471JALF	0.083 "	4 mm	2.1 mm	0.157 in	Surface Mount	470 Ohms	5 %	-55 C	125 °C	8	0.026 in	0.65 mm	Bussed	1608 Concave Long Side Terminals	10	62.5 mW	200 ppm/°C
Bourns Inc. CAT25-510JALF	0.083 "	4 mm	2.1 mm	0.157 in	Surface Mount	51 Ohms	5 %	-55 C	125 °C	8	0.026 in	0.65 mm	Bussed	1608 Concave Long Side Terminals	10	62.5 mW	200 ppm/°C
Bourns Inc. CAT25-500JALF	0.083 "	4 mm	2.1 mm	0.157 in	Surface Mount		5 %	-55 C	125 °C	8	0.026 in	0.65 mm	Bussed	1608 Concave Long Side Terminals	10	62.5 mW	200 ppm/°C	50 Ohms
Bourns Inc. CAT25-222JALF	0.083 "	4 mm	2.1 mm	0.157 in	Surface Mount	2.2 kOhms	5 %	-55 C	125 °C	8	0.026 in	0.65 mm	Bussed	1608 Concave Long Side Terminals	10	62.5 mW	200 ppm/°C
Bourns Inc. CAT25-431JALF	0.083 "	4 mm	2.1 mm	0.157 in	Surface Mount		5 %	-55 C	125 °C	8	0.026 in	0.65 mm	Bussed	1608 Concave Long Side Terminals	10	62.5 mW	200 ppm/°C	430 Ohms
Bourns Inc. CAT25-511JALF	0.083 "	4 mm	2.1 mm	0.157 in	Surface Mount		5 %	-55 C	125 °C	8	0.026 in	0.65 mm	Bussed	1608 Concave Long Side Terminals	10	62.5 mW	200 ppm/°C	510 Ohms
Bourns Inc. CAT25-125JALF	0.083 "	4 mm	2.1 mm	0.157 in	Surface Mount		5 %	-55 C	125 °C	8	0.026 in	0.65 mm	Bussed	1608 Concave Long Side Terminals	10	62.5 mW	200 ppm/°C	12 M
Bourns Inc. CAT25-123JALF	0.083 "	4 mm	2.1 mm	0.157 in	Surface Mount	12 kOhms	5 %	-55 C	125 °C	8	0.026 in	0.65 mm	Bussed	1608 Concave Long Side Terminals	10	62.5 mW	200 ppm/°C
Bourns Inc. CAT25-563JALF	0.083 "	4 mm	2.1 mm	0.157 in	Surface Mount	56 kOhms	5 %	-55 C	125 °C	8	0.026 in	0.65 mm	Bussed	1608 Concave Long Side Terminals	10	62.5 mW	200 ppm/°C
Bourns Inc. CAT25-392JALF	0.083 "	4 mm	2.1 mm	0.157 in	Surface Mount	3.9 kOhms	5 %	-55 C	125 °C	8	0.026 in	0.65 mm	Bussed	1608 Concave Long Side Terminals	10	62.5 mW	200 ppm/°C
