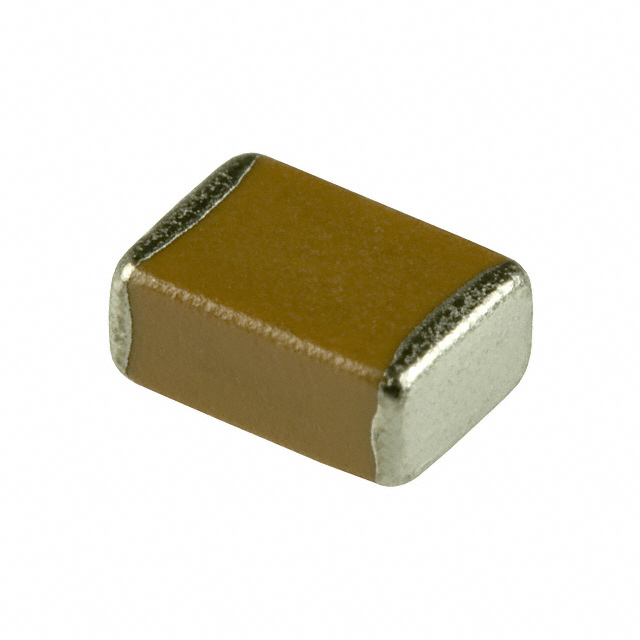

ECJ-5YB Series

Catalog

CAP CER 1UF 100V X7R 1812

Part	Thickness (Max) [Max]	Thickness (Max) [Max]	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Tolerance	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Applications	Voltage - Rated
Panasonic Electronic Components ECJ-5YB2A105M	0.11 in	2.8 mm	X7R	3.2 mm	0.126 in	4.45 mm	0.175 in	1812 (4532 Metric)	20 %	1 µF	-55 C	125 °C	MLCC Surface Mount	General Purpose	100 V
Panasonic Electronic Components ECJ-5YB1C226M	0.11 in	2.8 mm	X5R	3.2 mm	0.126 in	4.45 mm	0.175 in	1812 (4532 Metric)	20 %	22 µF	-55 C	85 °C	MLCC Surface Mount	General Purpose	16 V
Panasonic Electronic Components ECJ-5YB0J476M	0.11 in	2.8 mm	X5R	3.2 mm	0.126 in	4.45 mm	0.175 in	1812 (4532 Metric)	20 %	47 µF	-55 C	85 °C	MLCC Surface Mount	General Purpose	6.3 VDC
Panasonic Electronic Components ECJ-5YB1E106M	0.11 in	2.8 mm	X5R	3.2 mm	0.126 in	4.45 mm	0.175 in	1812 (4532 Metric)	20 %	10 µF	-55 C	85 °C	MLCC Surface Mount	General Purpose	25 VDC
