G125-MH1 Series

Catalog

10+10 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES (T+R) ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Shape	Connector Type	Number of Positions Loaded	Features	Contact Type	Number of Positions	Insulation Material	Termination	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Voltage Rating	Shrouding	Mounting Type	Style	Insulation Height	Insulation Height	Contact Material	Contact Finish - Mating	Contact Finish - Post	Insulation Color	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height [z]	Insulation Height [z]	Number of Positions [custom]	Contact Length - Post [x]	Contact Length - Post [x]

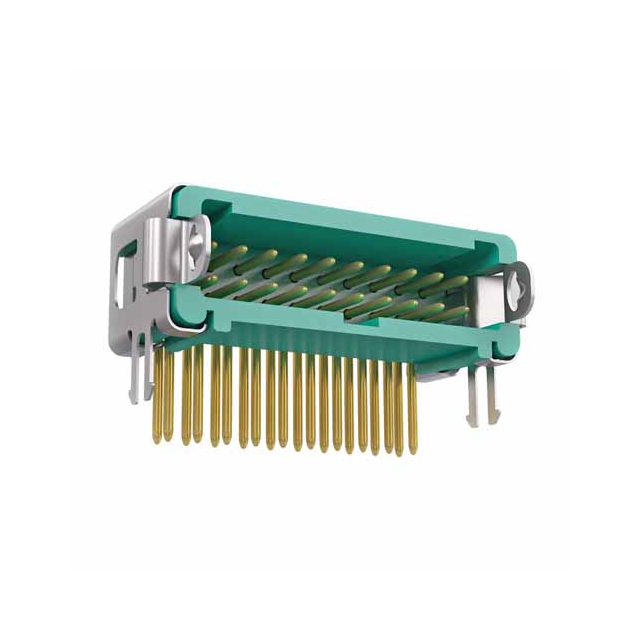

Harwin Inc. G125-MH12005L1R	0.203 µm	8 µin	2 A	Circular	Header	All	Board Lock	Male Pin	20	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Solder	1.25 mm	0.049 in	Latch Holder	0.13 "	3.3 mm	0.049 in	1.25 mm	UL94 V-0	600 VAC	Shrouded - 4 Wall	Right Angle Through Hole	Board to Board Cable	5.55 mm	0.218 in	Phosphor Bronze	Gold	Gold	Green	2	8 µin	0.203 µm	150 °C	-65 ░C

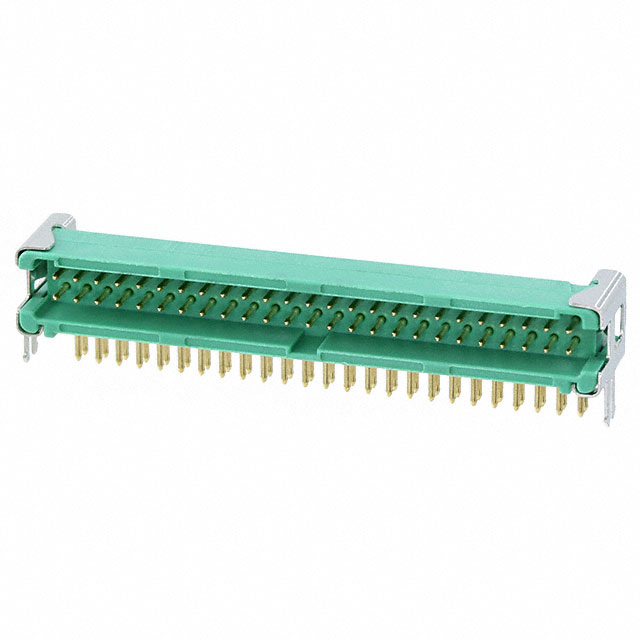

Harwin Inc. G125-MH15005L5P			2 A	Circular	Header	All	Board Lock	Male Pin	50	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Solder	1.25 mm	0.049 in	Latch Holder	0.13 "	3.3 mm	0.049 in	1.25 mm	UL94 V-0	250 V	Shrouded - 4 Wall	Right Angle Through Hole	Board to Board Cable			Phosphor Bronze	Gold		Green	2	8 µin	0.203 µm	150 °C	-65 ░C	0.219 in	5.56 mm

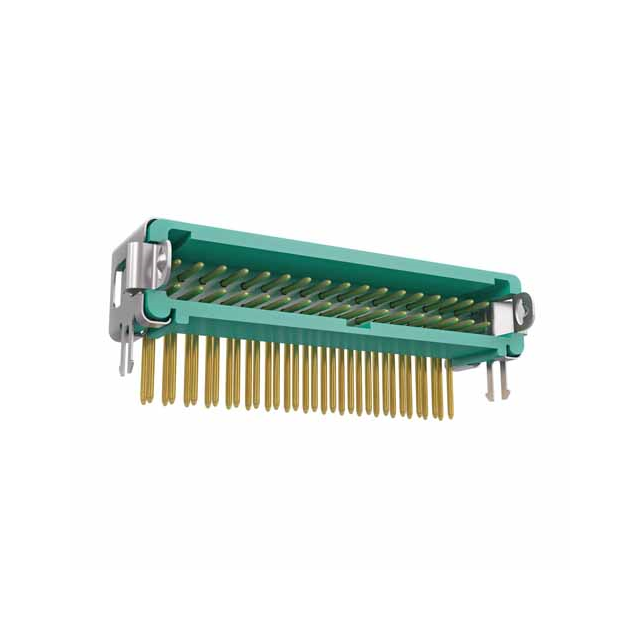

Harwin Inc. G125-MH13405L1R	0.203 µm	8 µin	2 A	Circular	Header	All	Board Lock	Male Pin		Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Solder	1.25 mm	0.049 in	Latch Holder	0.13 "	3.3 mm	0.049 in	1.25 mm	UL94 V-0	600 VAC	Shrouded - 4 Wall	Right Angle Through Hole	Board to Board Cable	5.55 mm	0.218 in	Phosphor Bronze	Gold	Gold	Green	2	8 µin	0.203 µm	150 °C	-65 ░C			34

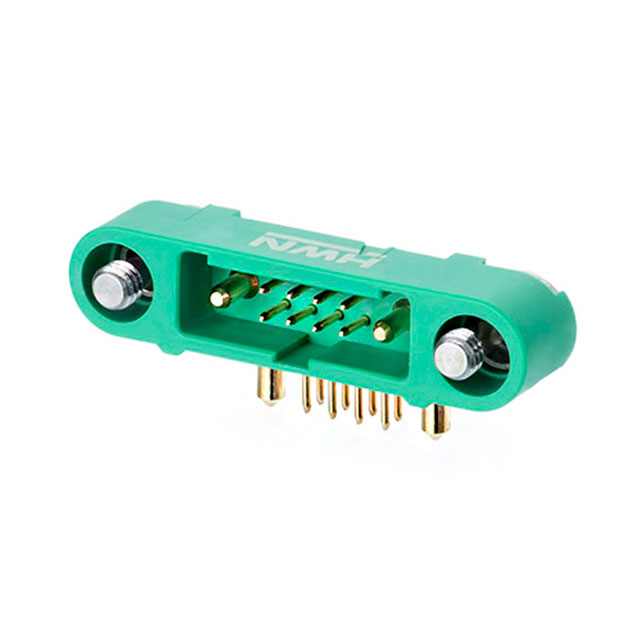

Harwin Inc. G125-MH10805M3-1AD1ADP			2 A 10 A	Circular	Header	All	Jackscrews Mating Flange Pick and Place Polarizing Key	Male Pin	10	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Solder	1.25 mm	0.049 in		0.13 "	3.3 mm	0.049 in	1.25 mm	UL94 V-0	450 V	Shrouded - 4 Wall	Right Angle Through Hole	Board to Board Cable	5.25 mm	0.207 in	Phosphor Bronze	Gold	Gold	Green	2			150 °C	-65 ░C

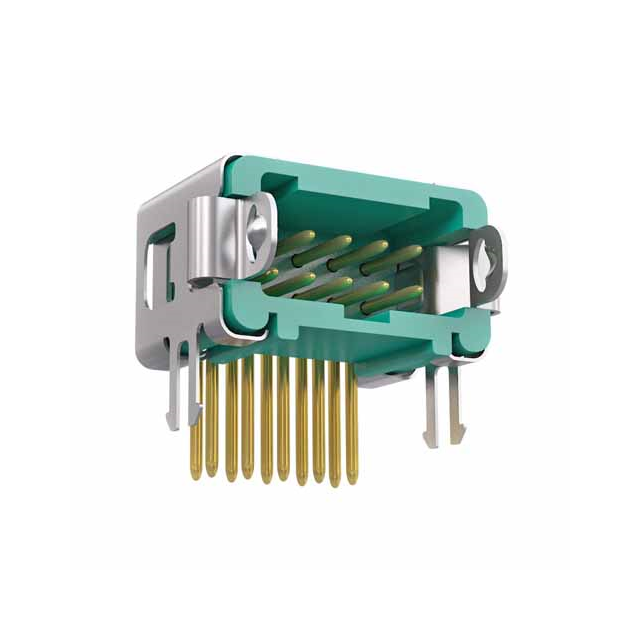

Harwin Inc. G125-MH11005L1R	0.203 µm	8 µin	2 A	Circular	Header	All	Board Lock	Male Pin	10	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Solder	1.25 mm	0.049 in	Latch Holder	0.13 "	3.3 mm	0.049 in	1.25 mm	UL94 V-0	600 VAC	Shrouded - 4 Wall	Right Angle Through Hole	Board to Board Cable	5.55 mm	0.218 in	Phosphor Bronze	Gold	Gold	Green	2	8 µin	0.203 µm	150 °C	-65 ░C

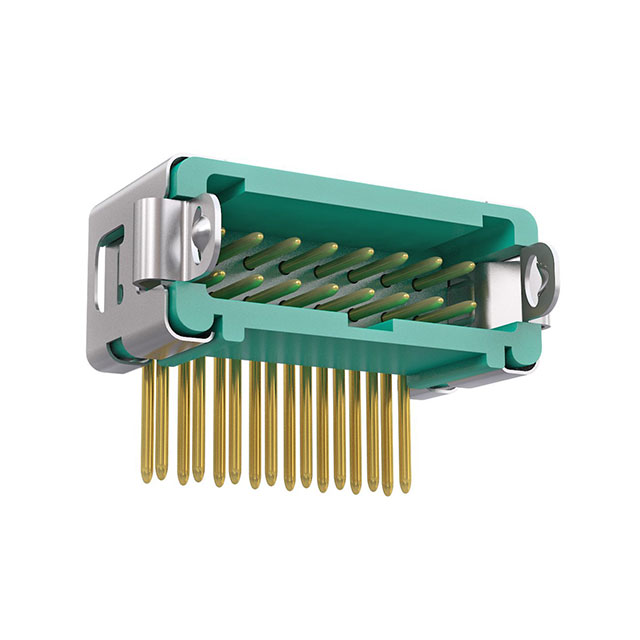

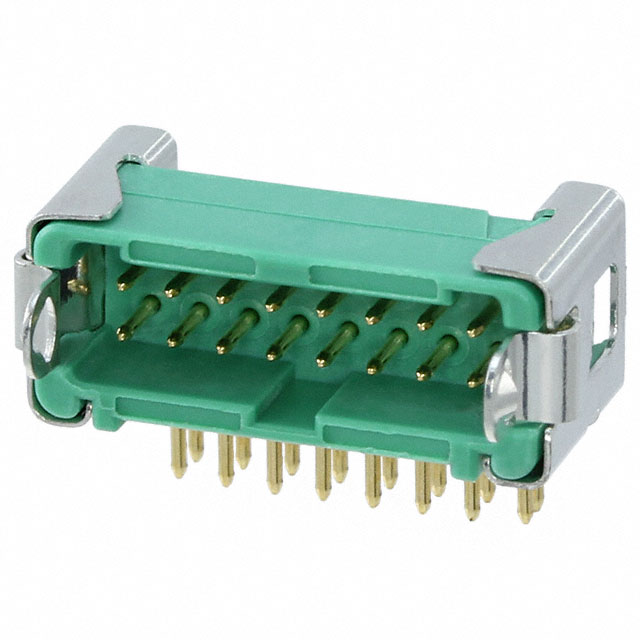

Harwin Inc. G125-MH11605L3P			2 A	Circular	Header	All	Solder Retention	Male Pin	16	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Solder	1.25 mm	0.049 in	Latch Lock	0.13 "	3.3 mm	0.049 in	1.25 mm	UL94 V-0	250 V	Shrouded - 4 Wall	Right Angle Through Hole	Board to Board Cable			Phosphor Bronze	Gold		Green	2	8 µin	0.203 µm	150 °C	-65 ░C	0.219 in	5.56 mm

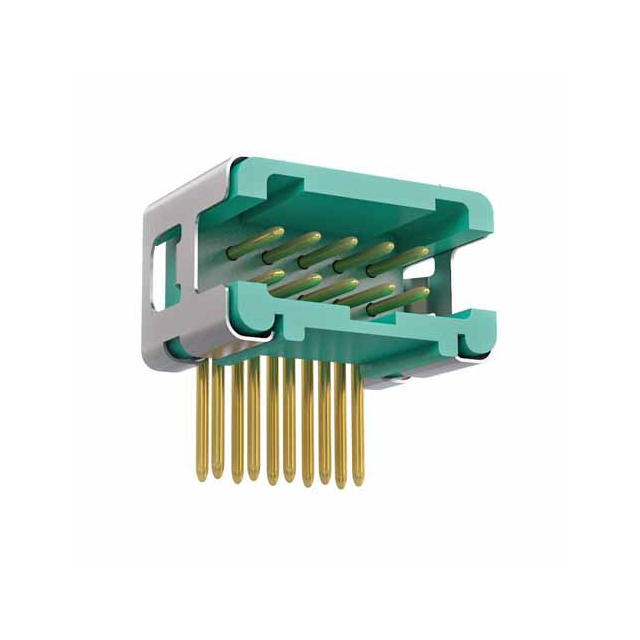

Harwin Inc. G125-MH11005L7R			2 A	Circular	Header	All		Male Pin	10	Nylon 4T Polyamide (PA4T)	Solder	1.25 mm	0.049 in	Latch Holder			0.049 in	1.25 mm	UL94 V-0		Shrouded - 4 Wall	Right Angle Through Hole	Board to Board Cable	5.55 mm	0.218 in	Phosphor Bronze	Gold	Gold	Green	2			150 °C	-65 ░C				0.126 "	3.2 mm

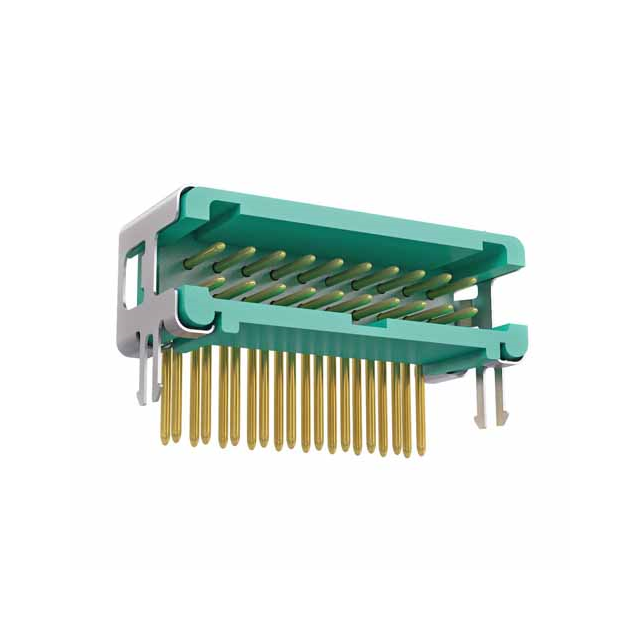

Harwin Inc. G125-MH12005L5R			2 A	Circular	Header	All		Male Pin	20	Nylon 4T Polyamide (PA4T)	Solder	1.25 mm	0.049 in	Latch Holder			0.049 in	1.25 mm	UL94 V-0		Shrouded - 4 Wall	Right Angle Through Hole	Board to Board Cable	5.55 mm	0.218 in	Phosphor Bronze	Gold	Gold	Green	2			150 °C	-65 ░C				0.126 "	3.2 mm

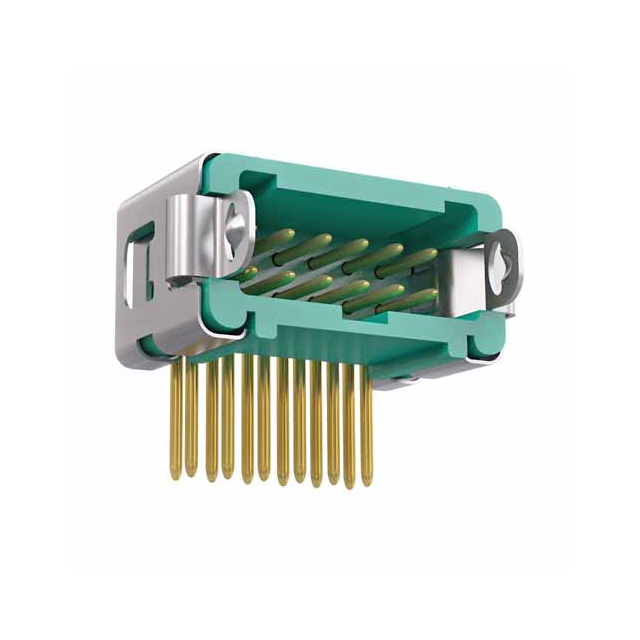

Harwin Inc. G125-MH11205L3R			2 A	Circular	Header	All		Male Pin	12	Nylon 4T Polyamide (PA4T)	Solder	1.25 mm	0.049 in	Latch Holder			0.049 in	1.25 mm	UL94 V-0		Shrouded - 4 Wall	Right Angle Through Hole	Board to Board Cable	5.55 mm	0.218 in	Phosphor Bronze	Gold	Gold	Green	2			150 °C	-65 ░C				0.126 "	3.2 mm

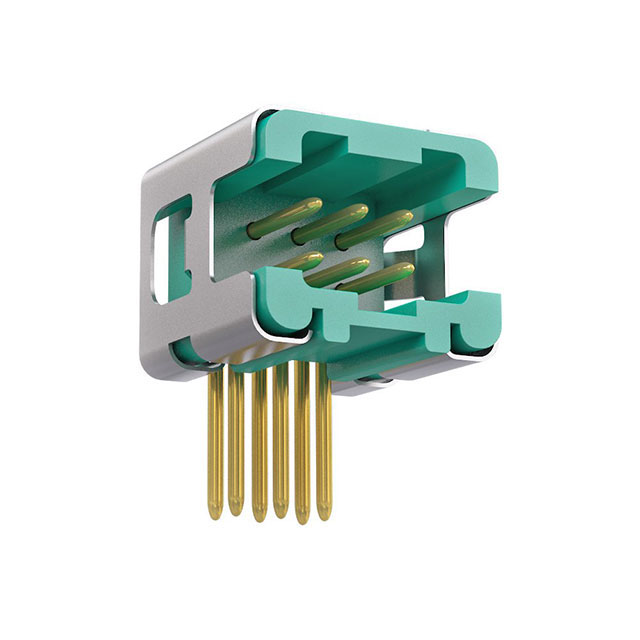

Harwin Inc. G125-MH10605L7P			2 A	Circular	Header	All	Solder Retention	Male Pin	6	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	Solder	1.25 mm	0.049 in	Latch Holder	0.13 "	3.3 mm	0.049 in	1.25 mm	UL94 V-0	250 V	Shrouded - 4 Wall	Right Angle Through Hole	Board to Board Cable			Phosphor Bronze	Gold		Green	2	8 µin	0.203 µm	150 °C	-65 ░C	0.219 in	5.56 mm
