OSTTJ20 Series

Catalog

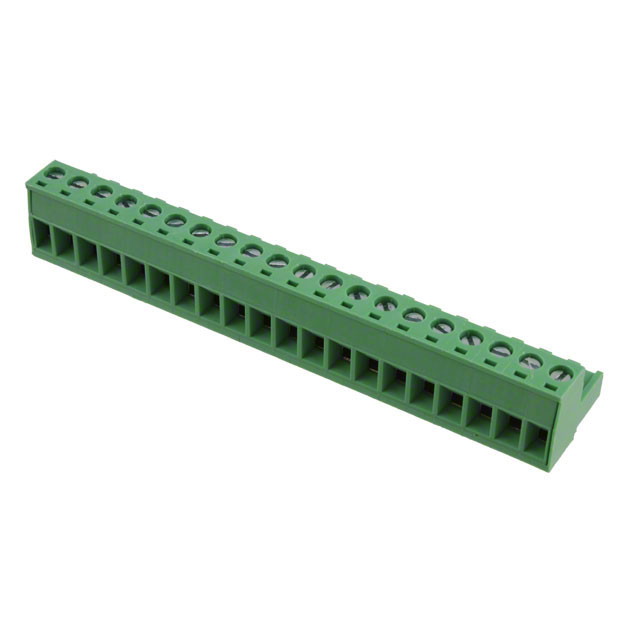

TERM BLOCK PLUG 20POS STR 5MM

Part	Housing Material	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Torque - Screw	Torque - Screw	Material Flammability Rating	Contact Material	Wire Strip Length [Min]	Wire Strip Length [Max]	Voltage - UL	Color	Positions Per Level	Type	Pitch	Pitch	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Mounting Type	Number of Levels	Number of Positions
On Shore Technology Inc. OSTTJ207150	Brass	0.34 mm˛	2.5 mm˛	0.56 Nm	5 Lb-In	UL94 V-0	Brass	7 mm	8 mm	300 V	Green	20	Plug Female Sockets	0.197 in	5 mm	30 AWG	12 AWG	0.34 mm²	2.5 mm²	115 °C	-40 C	Screw	Free Hanging (In-Line)	1	20
