950434 Series

Catalog

CONN RCPT 34POS 0.079 GOLD PCB

Part	Contact Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Voltage Rating	Contact Type	Insulation Height	Insulation Height	Connector Type	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Number of Positions [custom]	Contact Finish Thickness - Mating	Fastening Type	Contact Finish - Mating	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination

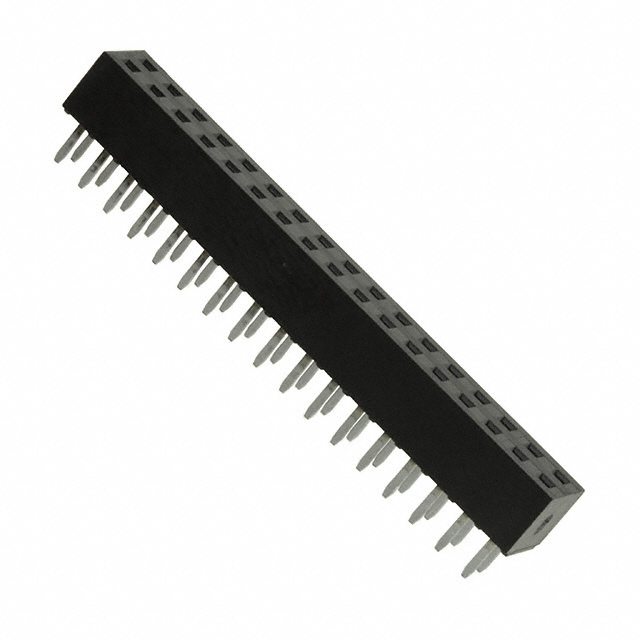

3M Electronic Specialty 950434-6102-AR	Copper Alloy	Square	40 Áin	1.02 Ám	Thermoplastic	0.079 "	2 mm	2	1000 VDC	Female Socket	4.3 mm	0.169 "	Receptacle	Through Hole	0.106 in	2.69 mm	Black	34	Flash	Push-Pull	Gold	All	UL94 V-0	Tin	2 mm	0.079 in	-40 C	105 ░C	Solder
