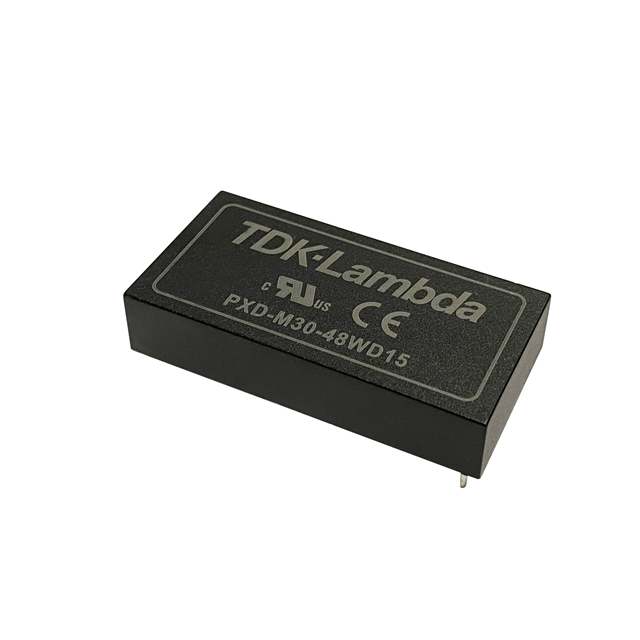

PXD-M30 Series

Isolated DC/DC Converters - Through Hole 30W 9-36VDCin 15Vout 2A

Manufacturer: TDK Corporation

Catalog

Isolated DC/DC Converters - Through Hole 30W 9-36VDCin 15Vout 2A

Catalog

Isolated DC/DC Converters - Through Hole 30W 9-36VDCin 15Vout 2A

Part	Applications	Type	Power (Watts)	Features	Voltage - Output 2	Voltage - Input (Min) [Min]	Number of Outputs	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Approval Agency	Size / Dimension	Package / Case	Voltage - Output 1	Voltage - Input (Max) [Max]	Mounting Type	Current - Output (Max)	Current - Output (Max) [Max]
TDK Corporation PXD-M30-24WD15	ITE (Commercial) Medical	Isolated Module	30 Watts	Adjustable Output	-15 V	9 V	2	90 %	105 C	-40 °C	5000 V	CE	0.4 in 10.2 mm 25.4 mm 50.8 mm	6-DIP Module	15 V	36 V	Through Hole	1 A
TDK Corporation PXD-M30-48WS12	ITE (Commercial) Medical	Isolated Module	30 Watts	Adjustable Output		18 V	1	89 %	105 C	-40 °C	5000 V	CE	0.4 in 10.2 mm 25.4 mm 50.8 mm	6-DIP Module	12 V	75 V	Through Hole		2.5 A
TDK Corporation PXD-M30-24WD05	ITE (Commercial) Medical	Isolated Module	30 Watts	Adjustable Output	-5 V	9 V	2	86 %	105 C	-40 °C	5000 V	CE	0.4 in 10.2 mm 25.4 mm 50.8 mm	6-DIP Module	5 V	36 V	Through Hole	3 A
TDK Corporation PXD-M30-48WD15	ITE (Commercial) Medical	Isolated Module	30 Watts	Adjustable Output	-15 V	18 V	2		105 C	-40 °C	5000 V	CE	0.4 in 10.2 mm 25.4 mm 50.8 mm	6-DIP Module	15 V	75 V	Through Hole	1 A
TDK Corporation PXD-M30-24WS15	ITE (Commercial) Medical	Isolated Module	30 Watts	Adjustable Output		9 V	1	90.5 %	105 C	-40 °C	5000 V	CE	0.4 in 10.2 mm 25.4 mm 50.8 mm	6-DIP Module	15 V	36 V	Through Hole		2 A
TDK Corporation PXD-M30-48WS24	ITE (Commercial) Medical	Isolated Module	30 Watts	Adjustable Output		18 V	1	89 %	105 C	-40 °C	5000 V	CE	0.4 in 10.2 mm 25.4 mm 50.8 mm	6-DIP Module	24 V	75 V	Through Hole		1.25 A
TDK Corporation PXD-M30-48WS15	ITE (Commercial) Medical	Isolated Module	30 Watts	Adjustable Output		18 V	1	90 %	105 C	-40 °C	5000 V	CE	0.4 in 10.2 mm 25.4 mm 50.8 mm	6-DIP Module	15 V	75 V	Through Hole		2 A
TDK Corporation PXD-M30-48WS05	ITE (Commercial) Medical	Isolated Module	30 Watts	Adjustable Output		18 V	1	89 %	105 C	-40 °C	5000 V	CE	0.4 in 10.2 mm 25.4 mm 50.8 mm	6-DIP Module	5 V	75 V	Through Hole		6 A
TDK Corporation PXD-M30-24WS24	ITE (Commercial) Medical	Isolated Module	30 Watts	Adjustable Output		9 V	1		105 C	-40 °C	5000 V	CE	0.4 in 10.2 mm 25.4 mm 50.8 mm	6-DIP Module	24 V	36 V	Through Hole		1.25 A
TDK Corporation PXD-M30-24WS05	ITE (Commercial) Medical	Isolated Module	30 Watts	Adjustable Output		9 V	1	88.5 %	105 C	-40 °C	5000 V	CE	0.4 in 10.2 mm 25.4 mm 50.8 mm	6-DIP Module	5 V	36 V	Through Hole		6 A
