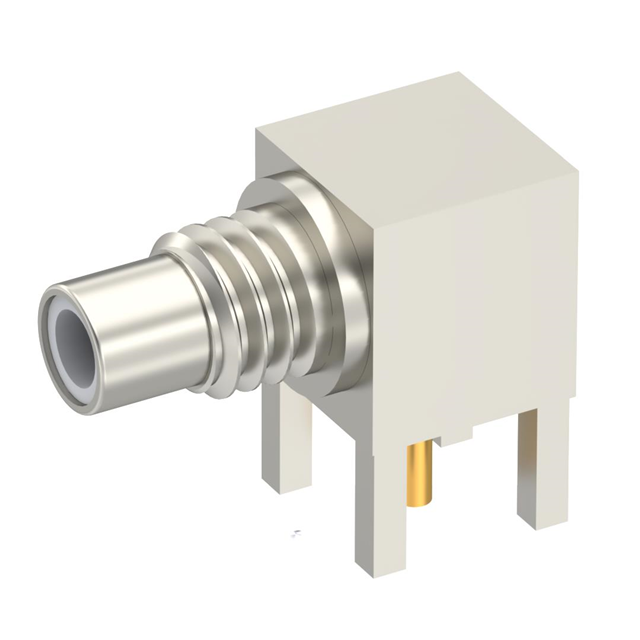

1010-7511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMC M RA BHD
| Part | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Body Finish | Dielectric Material | Mating Cycles | Mounting Type | Frequency - Max [Max] | Fastening Type | Shield Termination | Center Contact Material | Number of Ports | Contact Termination | Connector Style | Impedance | Housing Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Brass | -65 ░C | 165 °C | 0.5 dB | Nickel | Polytetrafluoroethylene (PTFE) | 500 | Right Angle Through Hole | 10 GHz | Threaded | Solder | Brass | 1 | Solder | SMC | 50 Ohms | Silver | Jack Male Pin |
