45486 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

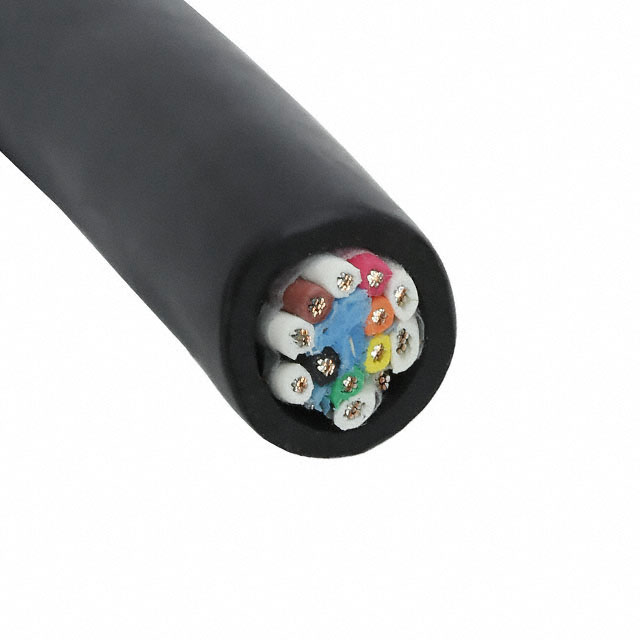

MULTI-PAIR 12COND 22AWG 1000'
| Part | Shield Material | Shield Coverage | Cable Type | Number of Conductors | Jacket Color | Features | Conductor Material | Voltage | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Ratings | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Multi-Pair | 12 | Slate | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 300 VDC | 22 AWG | 30 AWG | 7 | Foil | 10.8 mm | 0.425 in | 304.8 m | 1000 ft | ISO 10993 | Thermoplastic Elastomer (TPE) | 125 °C | -50 °C | TPE | Thermoplastic Elastomer | 1.397 mm | 0.055 in |
 ALPHA WIRE | Aluminum | 100 % | Multi-Pair | 12 | Black | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | 300 VDC | 22 AWG | 30 AWG | 7 | Foil | 10.8 mm | 0.425 in | 304.8 m | 1000 ft | ISO 10993 | Thermoplastic Elastomer (TPE) | 125 °C | -50 °C | TPE | Thermoplastic Elastomer | 1.397 mm | 0.055 in |
