FL-V Series
Manufacturer: Chemi-Con
Beta
⌘K
FERRITE CORES & ACCESSORIES 25.2MH 28.3X12.7X12.3MM AEC-Q200
| Part | Core Type | Inductance Factor (Al) | Gap | Material | Height | Height | Effective Area (Ae) mm² | Finish | Diameter [diameter] | Diameter [diameter] | Initial Permeability (µi) | Effective Length (le) mm [x] | Ratings | Package / Case | Height (Max) [z] | Height (Max) [z] | Filter Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Inductance @ Frequency | Number of Lines | DC Resistance (DCR) (Max) | Voltage Rating - DC | Size / Dimension [diameter] | Size / Dimension [diameter] | Current Rating (Max) [Max] | Height (Max) [diameter] | Height (Max) [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Chemi-Con | Toroid | 25.2 µH | Ungapped | Nanocrystalline | 12.3 mm | 0.484 in | 41 mm² | Uncoated | 1.114 in | 28.3 mm | 31000 | 63.8 mm | |||||||||||||||||

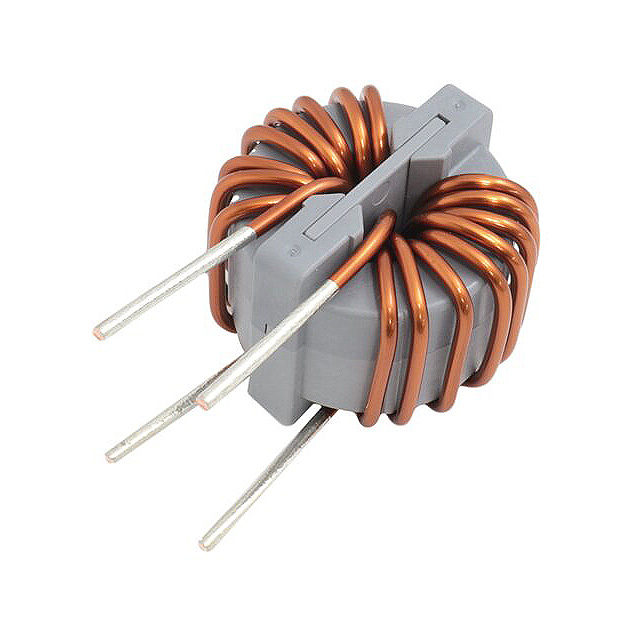

 Chemi-Con | AEC-Q200 | Radial Vertical (Open) | 48 mm | 1.89 in | Power Line | Through Hole | 130 °C | -40 C | 5.9 mH | 2 | 5.7 mOhm | 700 VDC | 50 mm | 1.969 in | 20 A | ||||||||||||||

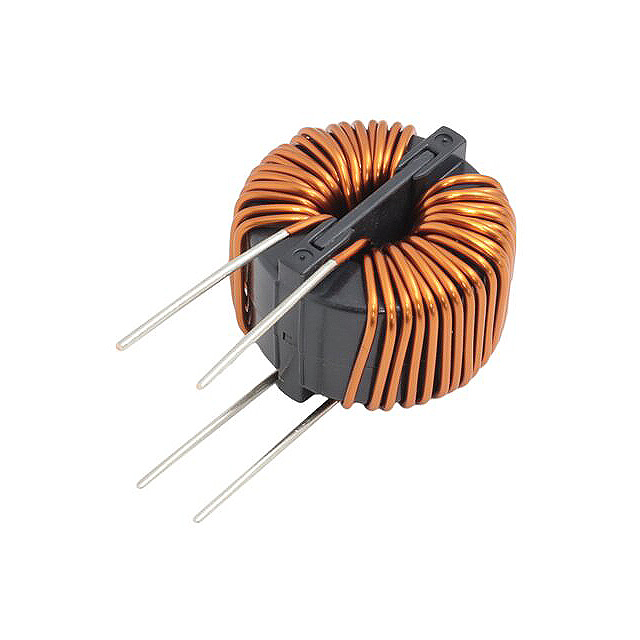

 Chemi-Con | AEC-Q200 | Vertical No Base 4 PC Pin | Power Line | Through Hole | 130 °C | -40 C | 3.6 mH | 2 | 7.5 mOhm | 500 V | 37 mm | 1.457 in | 16 A | 1.339 in | 34 mm |
