RI-90GP Series
Manufacturer: Comus International
Beta
⌘K

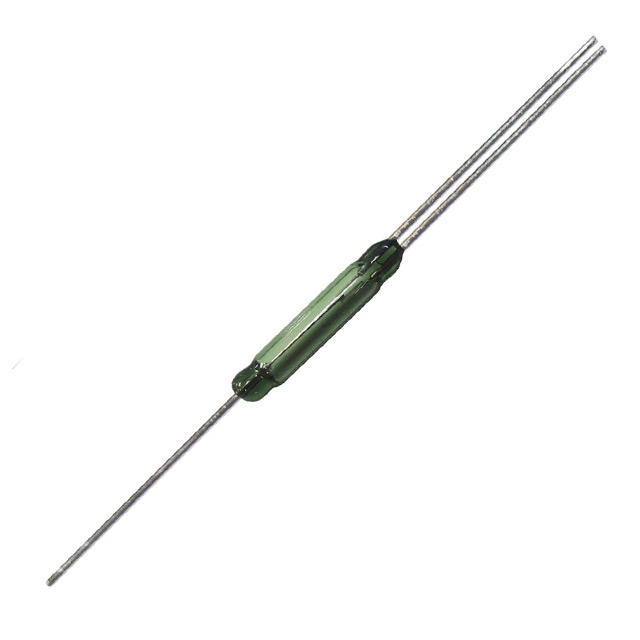

SWITCH REED SPDT 280MA 125V
| Part | Current - Carry | Circuit | Size - Body [diameter] | Size - Body [x] | Size - Body [diameter] | Size - Body [x] | Release Time | Operate Range [Max] | Operate Range [Min] | Length - Overall [x] | Length - Overall [x] | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Switching AC | Current - Switching | Power - Rated | Type | Operate Time | Voltage - Switching DC | Mounting Type | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Comus International | 500 mA | SPDT | 2.54 mm | 14.3 mm | 0.1 " | 0.563 " | 1 ms | 20 AT | 15 AT | 50.5 mm | 1.988 in | Axial | -55 C | 125 °C | 125 V | 280 mA 400 mA | 5 W | Glass Body Reed | 1 ms | 175 V | Through Hole | 0.8 pF |
