M2022B2 Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Actuator Material	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Features	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Bushing Thread	Circuit	Voltage Rating - AC	Switch Function	Illumination	Mounting Type	Actuator Type	Voltage Rating - DC	Actuator Length [x]	Ingress Protection
NKK Switches M2022B2B1W03-VC	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	PC Pin	Red Cap	12.5 mm	4 A 6 A	M12 x 1	DPDT	125 V	On-On	Non-Illuminated	Panel Mount	Standard Round with Cap	30 V	17.5 mm
NKK Switches M2022B2B1A03-AT401A	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	PC Pin		12.5 mm	0.4 VA	M12 x 1	DPDT	28 V	On-On	Non-Illuminated	Panel Mount	Standard Round	28 V	17.5 mm
NKK Switches M2022B2B1A01-AT401S	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Solder Lug		12.5 mm	0.4 VA	M12 x 1	DPDT	28 V	On-On	Non-Illuminated	Panel Mount	Standard Round	28 V	17.5 mm
NKK Switches M2022B2B3G01	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Solder Lug	Epoxy Sealed Terminals	12.5 mm	0.4 VA	M12 x 1	DPDT	28 V	On-On	Non-Illuminated	Panel Mount	Standard Round	28 V	17.5 mm	IP67 - Dust Tight Waterproof
NKK Switches M2022B2B1W01	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	Solder Lug	Epoxy Sealed Terminals	12.5 mm	4 A 6 A	M12 x 1	DPDT	125 V	On-On	Non-Illuminated	Panel Mount	Standard Round	30 V	17.5 mm
NKK Switches M2022B2B1W03-VC-AT401A	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	PC Pin		12.5 mm	4 A 6 A	M12 x 1	DPDT	125 V	On-On	Non-Illuminated	Panel Mount	Standard Round with Cap	30 V	17.5 mm
NKK Switches M2022B2B3G02	Brass Chrome Plated	50000 Cycles	85 °C	-30 ░C	Quick Connect - 0.062" (1.5mm)	Epoxy Sealed Terminals	12.5 mm	0.4 VA	M12 x 1	DPDT	28 V	On-On	Non-Illuminated	Panel Mount	Standard Round	28 V	17.5 mm	IP67 - Dust Tight Waterproof

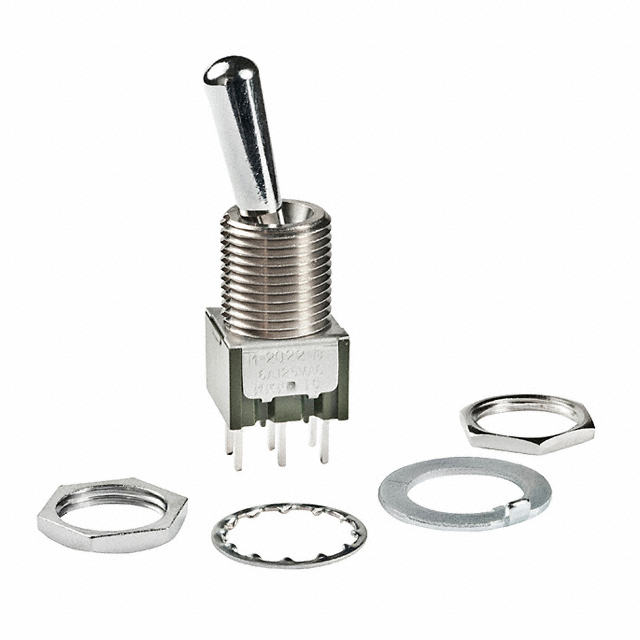

NKK Switches M2022B2B1W03	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	PC Pin	Epoxy Sealed Terminals	12.5 mm	4 A 6 A	M12 x 1	DPDT	125 V	On-On	Non-Illuminated	Panel Mount	Standard Round	30 V	17.5 mm

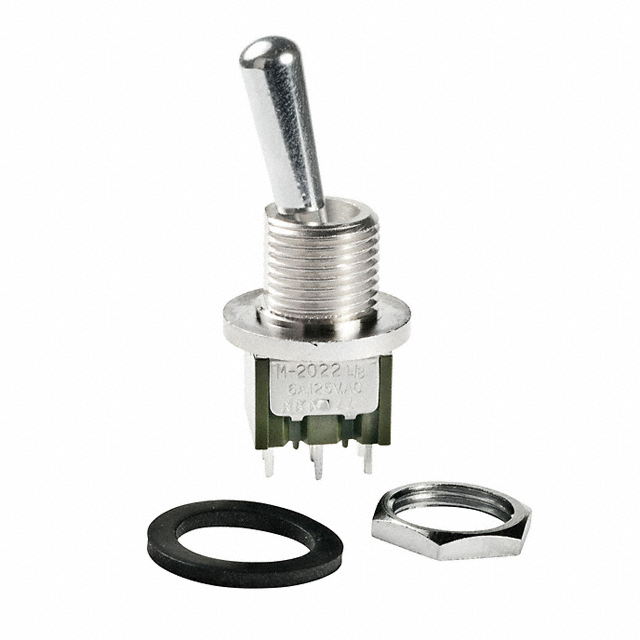

NKK Switches M2022B2B3W01	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	Solder Lug	Epoxy Sealed Terminals	12.5 mm	4 A 6 A	M12 x 1	DPDT	125 V	On-On	Non-Illuminated	Panel Mount	Standard Round	30 V	17.5 mm	IP67 - Dust Tight Waterproof

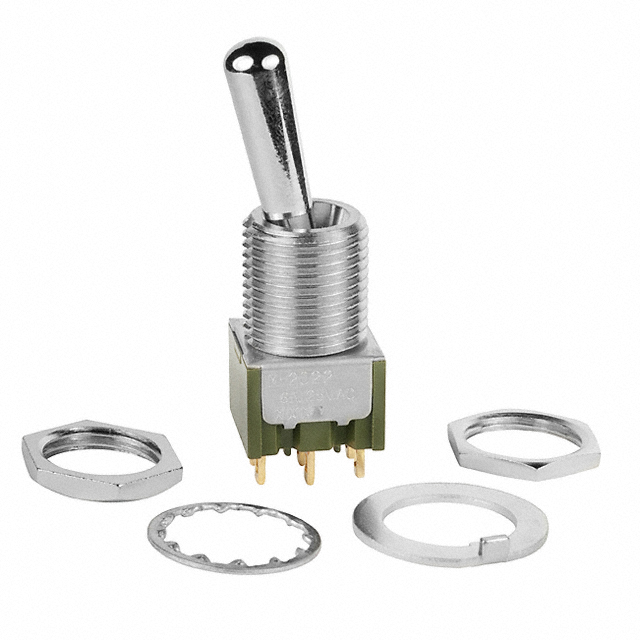

NKK Switches M2022B2B1A01	Brass Chrome Plated	25000 Steps	85 °C	-30 ░C	Solder Lug	Epoxy Sealed Terminals	12.5 mm	4 A 6 A	M12 x 1	DPDT	125 V	On-On	Non-Illuminated	Panel Mount	Standard Round	30 V	17.5 mm
