846-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

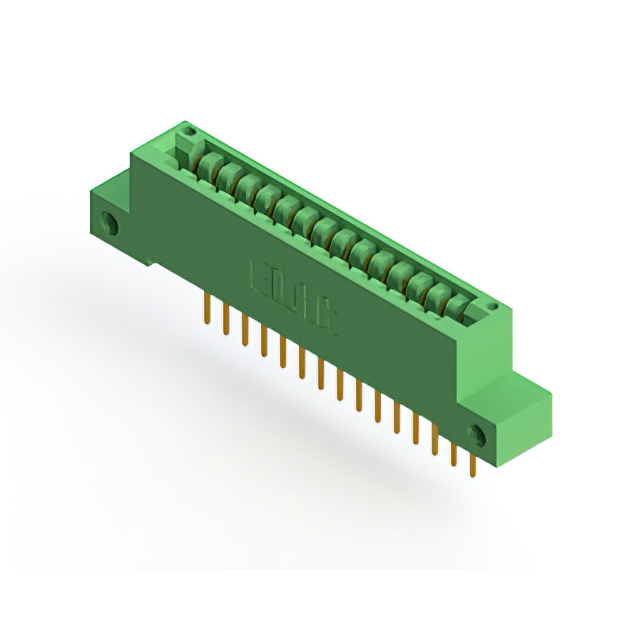

CONN EDGE SGL FMALE 15POS 0.125
| Part | Termination Rows | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Number of Positions | Pitch | Pitch | Contact Finish | Color | Contact Material | Mounting Type | Gender | Number of Positions/Bay/Row | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Card Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 15 | 3.18 mm | 0.125 in | Gold | Green | Copper Alloy | Right Angle Through Hole | Female | 15 | 0.156 " | 3.96 mm | Single | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Solder | 125 °C | -40 C | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 15 | 3.18 mm | 0.125 in | Gold | Green | Copper Alloy | Through Hole | Female | 15 | 0.128 " | 3.25 mm | Single | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Solder | 125 °C | -40 C | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 15 | 3.18 mm | 0.125 in | Gold | Green | Copper Alloy | Through Hole | Female | 15 | 0.156 " | 3.96 mm | Single | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Solder | 125 °C | -40 C | Flush Mount Top Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 15 | 3.18 mm | 0.125 in | Gold | Green | Copper Alloy | Right Angle Through Hole | Female | 15 | Single | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Solder | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 15 | 3.18 mm | 0.125 in | Gold | Green | Copper Alloy | Right Angle Through Hole | Female | 15 | 0.128 " | 3.25 mm | Single | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Solder | 125 °C | -40 C | |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 15 | 3.18 mm | 0.125 in | Gold | Green | Copper Alloy | Through Hole | Female | 15 | 0.128 " | 3.25 mm | Single | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Solder | 125 °C | -40 C | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 15 | 3.18 mm | 0.125 in | Gold | Green | Copper Alloy | Through Hole | Female | 15 | Single | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Solder Eyelet(s) | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 15 | 3.18 mm | 0.125 in | Gold | Green | Copper Alloy | Through Hole | Female | 15 | Single | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Wire Wrap | 125 °C | -40 C | M3 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 15 | 3.18 mm | 0.125 in | Gold | Green | Copper Alloy | Through Hole | Female | 15 | 0.128 " | 3.25 mm | Single | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Solder | 125 °C | -40 C | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | 15 | 3.18 mm | 0.125 in | Gold | Green | Copper Alloy | Through Hole | Female | 15 | Single | 1 | 0.25 Ám | 10 Áin | Non Specified - Single Edge | Wire Wrap | 125 °C | -40 C |
