AHDF15A Series
Manufacturer: Assmann WSW Components
Beta
⌘K

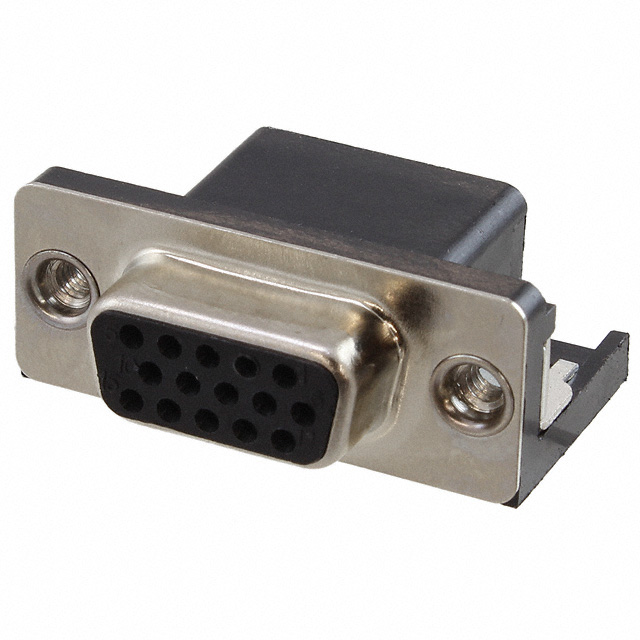

CONN D-SUB HD RCPT 15P R/A SLDR
| Part | Dielectric Material | Voltage Rating | Contact Material | Termination | Features | Contact Type | Backset Spacing | Backset Spacing | Connector Style | Mounting Type | Number of Positions | Current Rating (Amps) | Connector Type | Material Flammability Rating | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Number of Rows [custom] | Flange Feature | Flange Feature | Shell Material, Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | Polybutylene Terephthalate (PBT) Glass Filled | 250 V | Brass | Solder | Board Lock | Signal | 8.89 mm | 0.35 in | D-Sub High Density | Right Angle Through Hole | 15 | 3 A | Receptacle Female Sockets | UL94 V-0 | Flash | (DE E) High Density | 1 | Gold | 3 | Housing/Shell | 4-40 | Nickel Plated Steel |
