8501CO Series

Catalog

POWER RELAY, TYPE C, 2 HP, 30A R

Part	Coil Type	Termination Style	Relay Type	Coil Voltage	Contact Form	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Mounting Type	Switching Voltage [Max]	Approval Agency

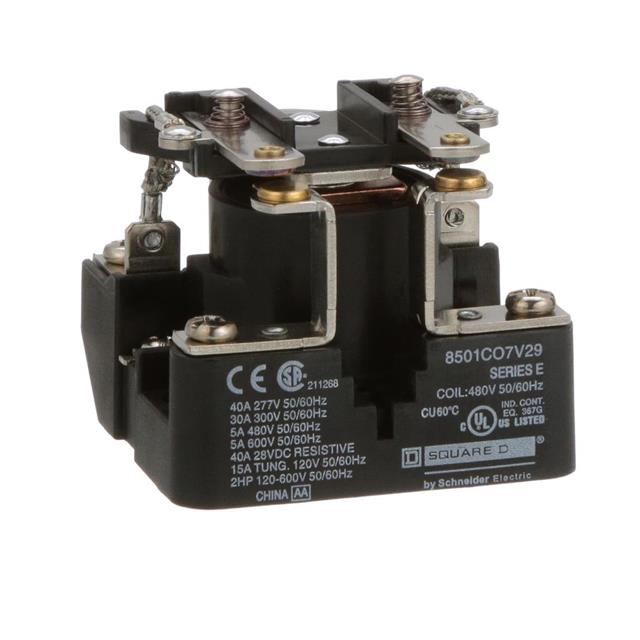

SCHNEIDER ELECTRIC 8501CO7V29	Non Latching	Screw Terminal	General Purpose	480 VAC	DPST-NO (2 Form A)	-30 ░C	50 °C	30 A	Chassis Mount	600 VAC

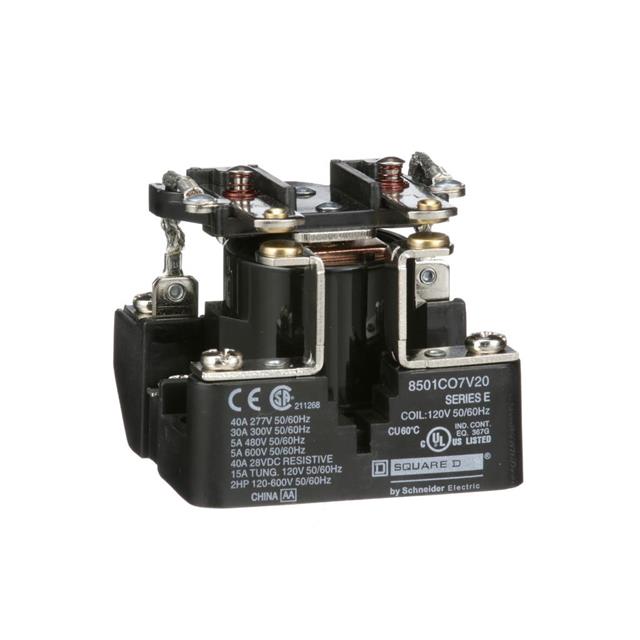

SCHNEIDER ELECTRIC 8501CO7V20	Non Latching	Screw Terminal	General Purpose	120 VAC	DPST-NO (2 Form A)	-30 ░C	50 °C	30 A	Chassis Mount	600 VAC

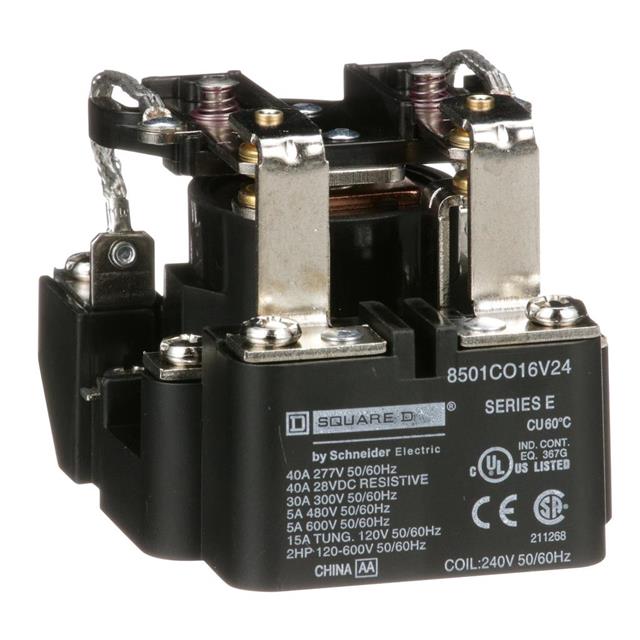

SCHNEIDER ELECTRIC 8501CO16V24	Non Latching	Screw Terminal	General Purpose	240 VAC/DC	DPDT (2 Form C)	-30 ░C	50 °C	30 A	Chassis Mount	600 VAC	CE CSA UL

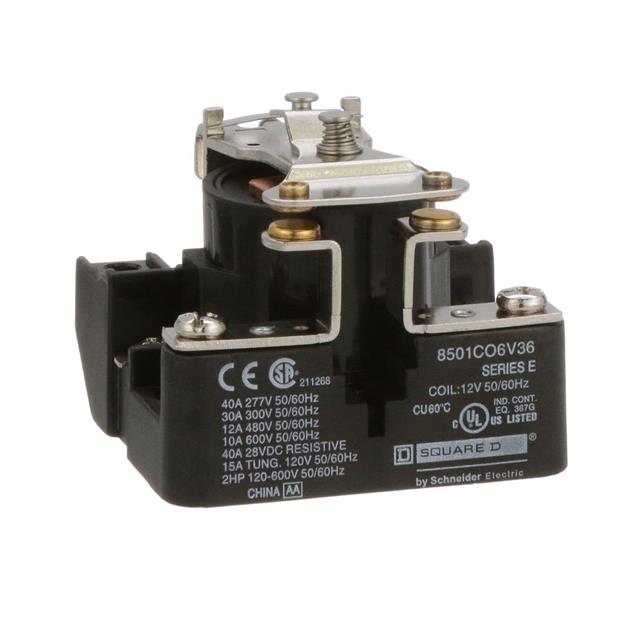

SCHNEIDER ELECTRIC 8501CO6V36	Non Latching	Screw Terminal	General Purpose	12 VAC	SPST-NO (1 Form A)	-30 ░C	50 °C	30 A	Chassis Mount	600 VAC
SCHNEIDER ELECTRIC 8501CO16V20	Non Latching	Screw Terminal	General Purpose	120 VAC	DPDT (2 Form C)	-30 ░C	50 °C	30 A	Chassis Mount	600 VAC

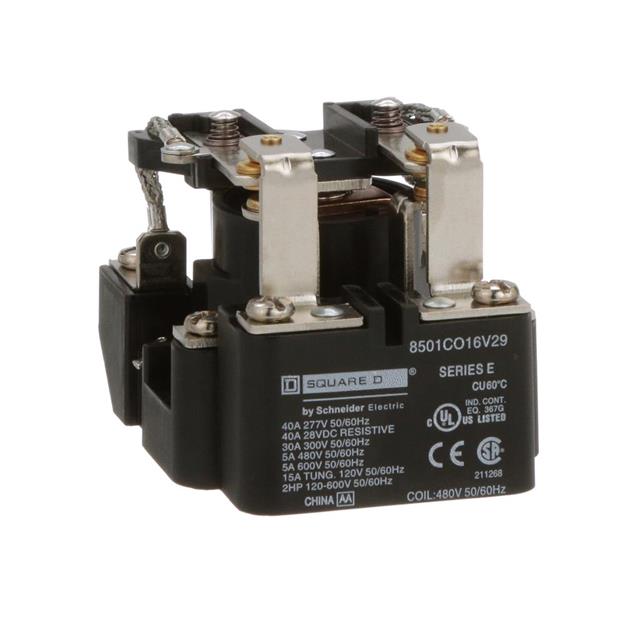

SCHNEIDER ELECTRIC 8501CO16V29	Non Latching	Screw Terminal	General Purpose	480 VAC	DPDT (2 Form C)	-30 ░C	50 °C	30 A	Chassis Mount	600 VAC
SCHNEIDER ELECTRIC 8501CO7V14	Non Latching	Screw Terminal	General Purpose	24 VAC	DPST-NO (2 Form A)	-30 ░C	50 °C	30 A	Chassis Mount	600 VAC

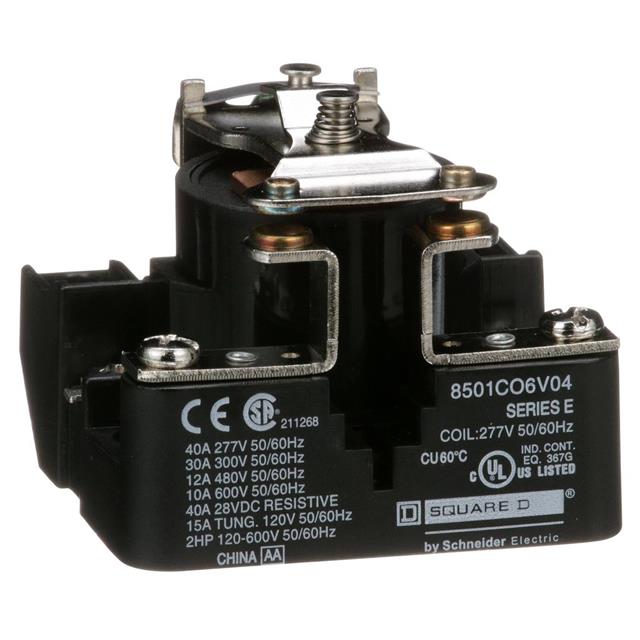

SCHNEIDER ELECTRIC 8501CO6V04	Non Latching	Screw Terminal	General Purpose	277 VAC	SPST-NO (1 Form A)	-30 ░C	50 °C	30 A	Chassis Mount	600 VAC

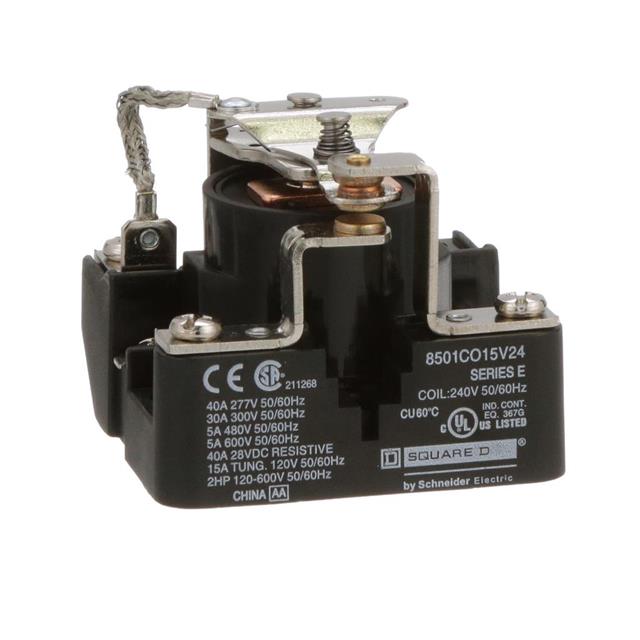

SCHNEIDER ELECTRIC 8501CO15V24	Non Latching	Screw Terminal	General Purpose	240 VAC/DC	SPDT (1 Form C)	-30 ░C	50 °C	30 A	Chassis Mount	600 VAC
SCHNEIDER ELECTRIC 8501CO6V24	Non Latching	Screw Terminal	General Purpose	240 VAC/DC	SPST-NO (1 Form A)	-30 ░C	50 °C	30 A	Chassis Mount	600 VAC
