504618 Series

SlimStack Board-to-Board Receptacle, 0.35mm Pitch, SSB6 Standard Series, 0.60mm Mated Height, 2.00mm Mated Width, 24 Circuits

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Receptacle, 0.35mm Pitch, SSB6 Standard Series, 0.60mm Mated Height, 2.00mm Mated Width, 24 Circuits

Part	Mounting Type	Height Above Board [z]	Height Above Board [z]	Number of Rows [custom]	Pitch	Pitch	Mated Stacking Heights	Number of Positions	Contact Finish	Connector Type	Features	Number of Positions [custom]	Height Above Board [z]

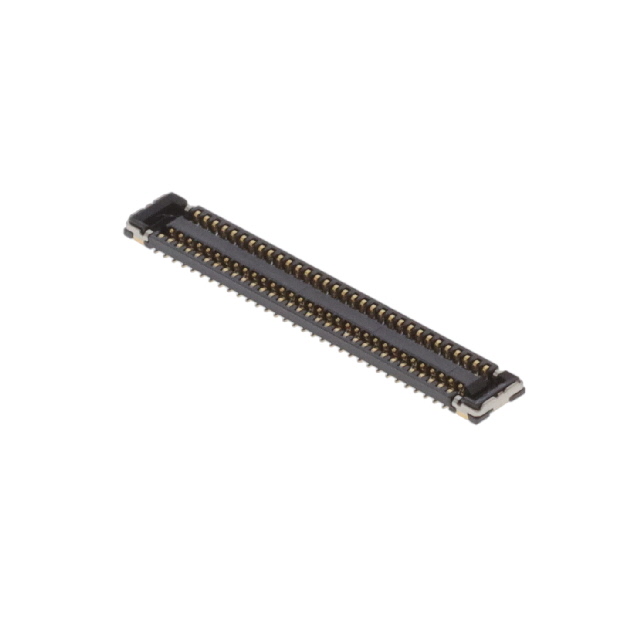

Molex 5046186412	Surface Mount	0.024 in	0.61 mm	2	0.014 in	0.35 mm	0.6 mm	64	Gold	Receptacle Center Strip Contacts	Pick and Place Solder Retention

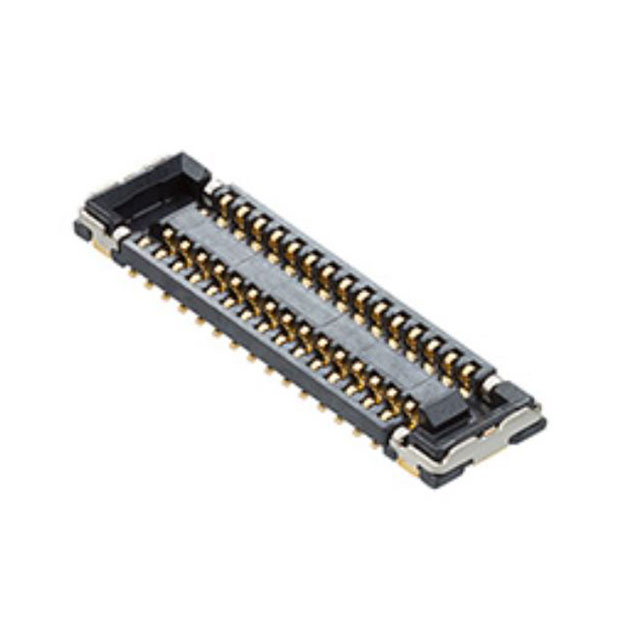

Molex 5046183012	Surface Mount	0.024 in	0.61 mm	2	0.014 in	0.35 mm	0.6 mm	30	Gold	Receptacle Center Strip Contacts	Pick and Place Solder Retention
Molex 5046187012	Surface Mount	0.024 in	0.61 mm	2	0.014 in	0.35 mm	0.6 mm	70	Gold	Receptacle Center Strip Contacts	Pick and Place Solder Retention
Molex 5046181012	Surface Mount	0.024 in	0.61 mm	2	0.014 in	0.35 mm	0.6 mm	10	Gold	Receptacle Center Strip Contacts	Pick and Place Solder Retention

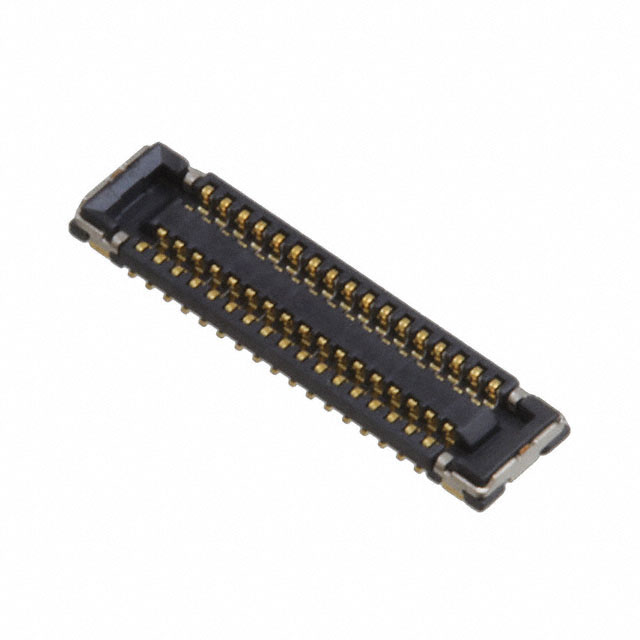

Molex 5046183410	Surface Mount	0.024 in	0.61 mm	2	0.014 in	0.35 mm	0.6 mm		Gold	Receptacle Center Strip Contacts	Solder Retention	34
Molex 5046185012	Surface Mount	0.024 in	0.61 mm	2	0.014 in	0.35 mm	0.6 mm	50	Gold	Receptacle Center Strip Contacts	Pick and Place Solder Retention

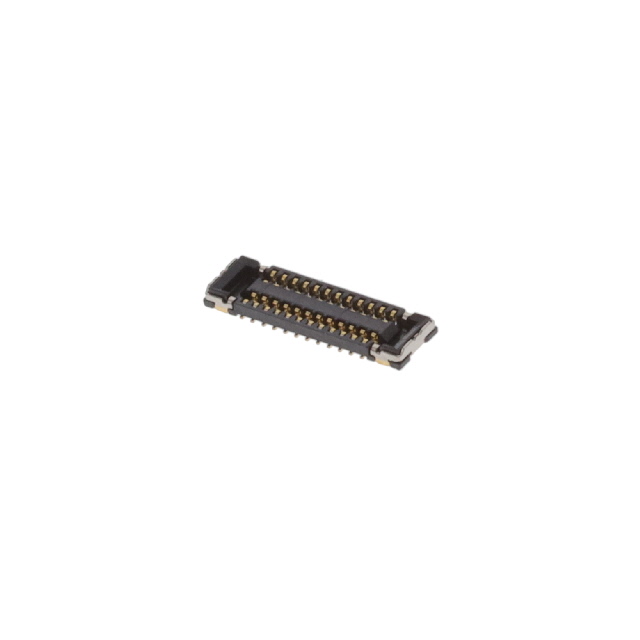

Molex 5046182412	Surface Mount	0.024 in	0.6 mm 0.61 mm	2	0.014 in	0.35 mm	0.6 mm	24	Gold	Receptacle Center Strip Contacts	Solder Retention		0.024 in

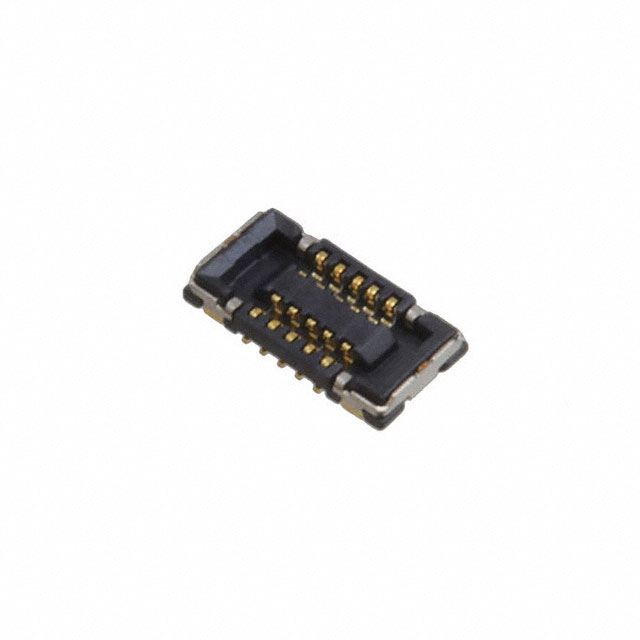

Molex 5046181010	Surface Mount	0.024 in	0.61 mm	2	0.014 in	0.35 mm	0.6 mm	10	Gold	Receptacle Center Strip Contacts	Solder Retention
Molex 5046182012	Surface Mount	0.024 in	0.61 mm	2	0.014 in	0.35 mm	0.6 mm	20	Gold	Receptacle Center Strip Contacts	Pick and Place Solder Retention
Molex 5046184012	Surface Mount	0.024 in	0.61 mm	2	0.014 in	0.35 mm	0.6 mm	40	Gold	Receptacle Center Strip Contacts	Pick and Place Solder Retention
