846-068 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 68POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Read Out | Pitch | Pitch | Contact Material | Color | Flange Feature | Contact Type | Termination | Number of Positions/Bay/Row | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Max] | Card Thickness [Min] | Gender | Number of Positions | Contact Finish | Number of Rows [custom] | Mounting Type | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

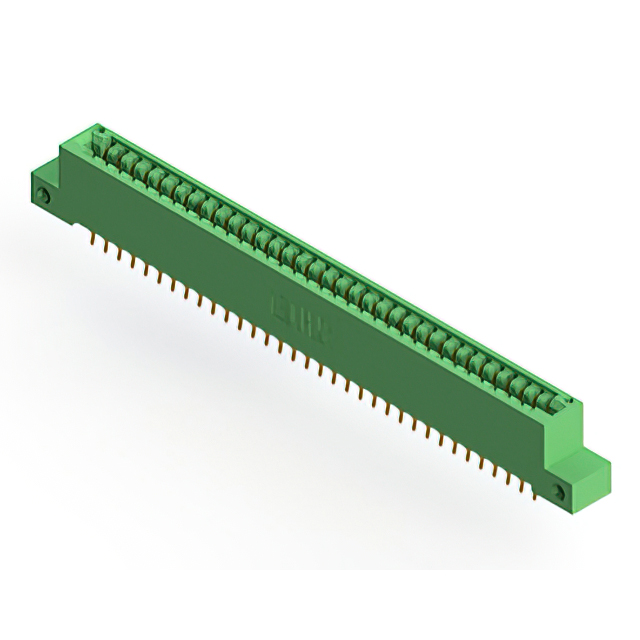

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | 3.18 mm | 0.125 in | Copper Alloy | Green | M3 Threaded Insert Top Mount Opening | Cantilever | Solder | 34 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 68 positions | Gold | 2 | Through Hole | |||

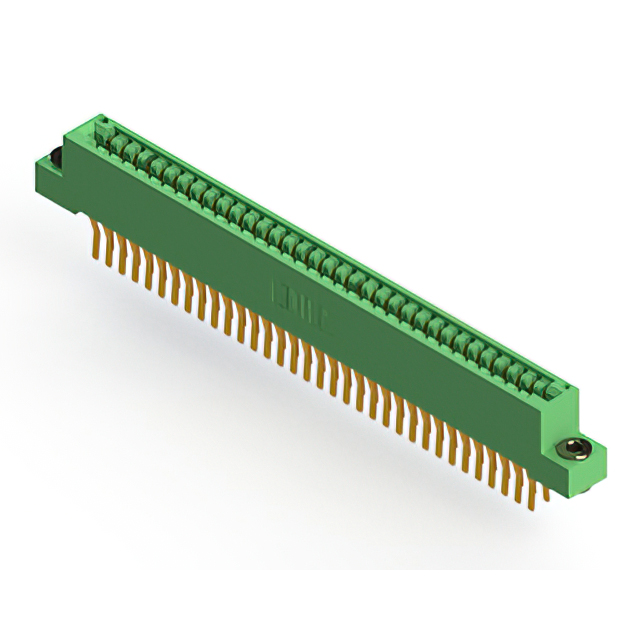

 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | 3.18 mm | 0.125 in | Copper Alloy | Green | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Solder Eyelet(s) | 34 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 68 positions | Gold | 2 | Through Hole | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | 3.18 mm | 0.125 in | Copper Alloy | Green | Cantilever | Solder | 34 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 68 positions | Gold | 2 | Right Angle Through Hole | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | 3.18 mm | 0.125 in | Copper Alloy | Green | Floating Bobbin Flush Mount | Cantilever | Solder | 34 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 68 positions | Gold | 2 | Board Edge Straddle Mount | Card Extender | 0.116 " | 2.95 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | 3.18 mm | 0.125 in | Copper Alloy | Green | Floating Bobbin Top Mount Opening | Cantilever | Solder | 34 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 68 positions | Gold | 2 | Right Angle Through Hole | 0.116 " | 2.95 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | 3.18 mm | 0.125 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | Cantilever | Solder | 34 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 68 positions | Gold | 2 | Right Angle Through Hole | 0.156 " | 3.96 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | 3.18 mm | 0.125 in | Copper Alloy | Green | Cantilever | Wire Wrap | 34 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 68 positions | Gold | 2 | Through Hole | 0.156 " | 3.96 mm | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | 3.18 mm | 0.125 in | Copper Alloy | Green | Floating Bobbin Top Mount Opening | Cantilever | Solder | 34 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 68 positions | Gold | 2 | Through Hole | 0.116 " | 2.95 mm | |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | 3.18 mm | 0.125 in | Copper Alloy | Green | Flush Mount Side Opening Unthreaded | Cantilever | Solder | 34 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 68 positions | Gold | 2 | Board Edge Straddle Mount | Card Extender | 0.128 " | 3.25 mm |
 EDAC Inc. | Diallyl Phthalate (DAP) | 2 | 125 °C | -40 C | Non Specified - Dual Edge | Dual | 3.18 mm | 0.125 in | Copper Alloy | Green | Flush Mount Top Opening Unthreaded | Cantilever | Solder | 34 | 0.25 Ám | 10 Áin | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | 68 positions | Gold | 2 | Through Hole | 0.128 " | 3.25 mm |
