3863 Series

Catalog

CONN RCPT 6POS IDC 26-28AWG GOLD

Part	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Contact Type	Pitch	Pitch	Color	Connector Type	Number of Rows [custom]	Contact Finish	Wire Type	Number of Positions	Features	Mounting Type	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Cable Termination
3M Electronic Specialty 3863-6600	30 Áin	0.76 Ám	2.54 mm	0.1 "	Female Socket	0.1 "	2.54 mm	Gray	Receptacle	2	Gold	Ribbon Cable	6	Feed Through Polarizing Key	Free Hanging (In-Line)	28 AWG	Stranded or Solid	26 AWG	IDC
3M Electronic Specialty 3863-6000	30 Áin	0.76 Ám	2.54 mm	0.1 "	Female Socket	0.1 "	2.54 mm	Gray	Receptacle	2	Gold	Ribbon Cable	6	Feed Through	Free Hanging (In-Line)				IDC

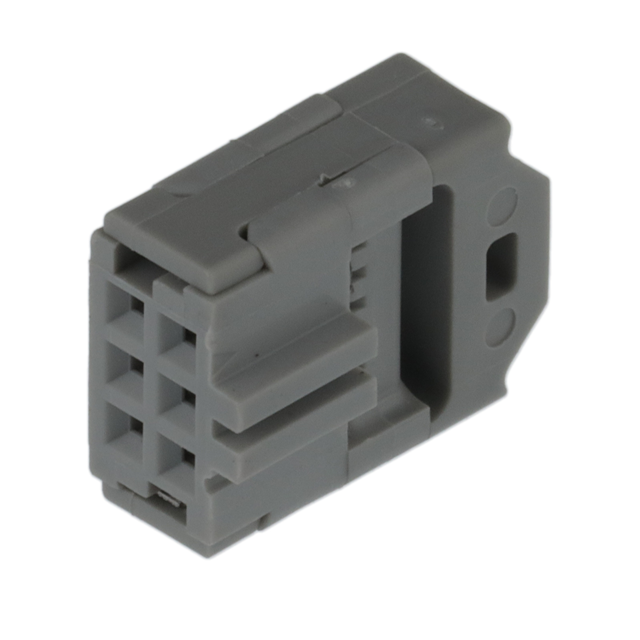

3M Electronic Specialty 3863-6605	30 Áin	0.76 Ám	2.54 mm	0.1 "	Female Socket	0.1 "	2.54 mm	Gray	Receptacle	2	Gold	Ribbon Cable	6	Feed Through Polarizing Key Strain Relief	Free Hanging (In-Line)	28 AWG	Stranded or Solid	26 AWG	IDC
