FF225R65 Series
Manufacturer: INFINEON
Beta
⌘K

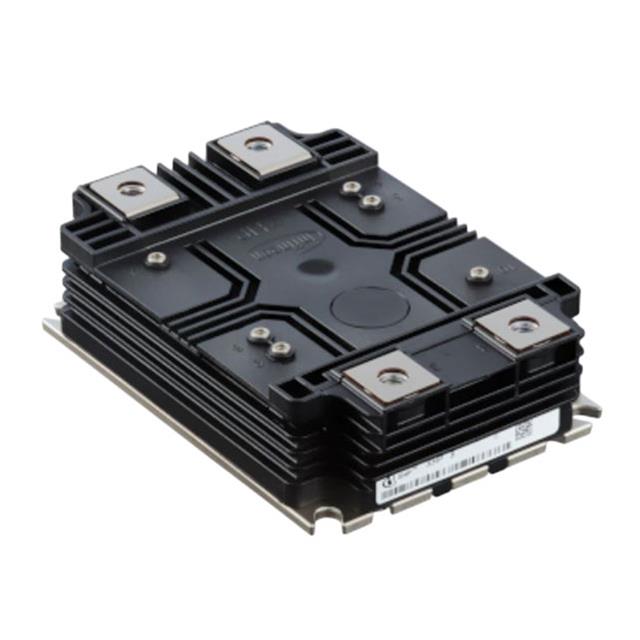

THE FF225R65T3E3 IS A DUAL IGBT3 - E3 MODULE IN A XHP™ 3 HOUSING FOR INDUSTRIAL&TRACTION APPLICATIONS UP TO 6500 V AND 225 A.
| Part | Configuration | NTC Thermistor | Input | Supplier Device Package | IGBT Type | Power - Max [Max] | Current - Collector (Ic) (Max) [Max] | Current - Collector Cutoff (Max) [Max] | Input Capacitance (Cies) @ Vce | Operating Temperature | Package / Case | Voltage - Collector Emitter Breakdown (Max) [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 2 Independent | Standard | AG-XHP3K65 | Trench Field Stop | 1000000 W | 225 A | 5 mA | 65.6 nF | 125 ¯C | Module | 5900 V | Chassis Mount | |
INFINEON | 2 Independent | Standard | AG-XHP3K65 | Trench Field Stop | 1000 W | 225 A | 5 mA | 65.6 nF | 125 ¯C | Module | 5900 V | Chassis Mount |
