1393223 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GEN PURPOSE SPDT 8A 24V

Part	Coil Resistance	Coil Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Must Release Voltage	Contact Form	Seal Rating	Must Operate Voltage	Approval Agency	Coil Voltage	Release Time	Operate Time	Switching Voltage [Max]	Relay Type	Coil Current	Termination Style	Load - Max Switching	Mounting Type
TE Connectivity AMP Connectors 5-1393223-0	2.27 kOhms	Non Latching	Silver Cadmium Oxide (AgCdO)	85 °C	-40 C	8 A	2.4 VDC	SPDT (1 Form C)	Sealed - Flux Protection	16.3 VDC	cURus VDE	24 VDC	5 ms	10 ms	400 VAC	General Purpose	10.6 mA	PC Pin	3200 VA	Through Hole
TE Connectivity AMP Connectors V23061B1010A501	15.27 kOhms	Non Latching	Silver Nickel (AgNi)	85 °C	-40 C	8 A	6 VDC	SPDT (1 Form C)	Sealed - Fully	40.8 VDC	cURus VDE	60 VDC	5 ms	10 ms	400 VAC	General Purpose	4 mA	PC Pin	3200 VA	Through Hole
TE Connectivity AMP Connectors V23061B1010A401	15.27 kOhms	Non Latching	Silver Cadmium Oxide (AgCdO)	85 °C	-40 C	8 A	6 VDC	SPDT (1 Form C)	Sealed - Fully	40.8 VDC	cURus VDE	60 VDC	5 ms	10 ms	400 VAC	General Purpose	4 mA	PC Pin	3200 VA	Through Hole
TE Connectivity AMP Connectors 3-1393223-4	2.27 kOhms	Non Latching		85 °C	-40 C	8 A	2.4 VDC	SPDT (1 Form C)	Sealed - Fully	16.3 VDC	cURus VDE	24 VDC	5 ms	10 ms	400 VAC	General Purpose	10.6 mA	PC Pin	3200 VA	Through Hole
TE Connectivity AMP Connectors V23061B1009A501	8.79 kOhms	Non Latching	Silver Nickel (AgNi)	85 °C	-40 C	8 A	4.8 VDC	SPDT (1 Form C)	Sealed - Fully		cURus VDE	48 VDC	5 ms	10 ms	400 VAC	General Purpose	5.5 mA	PC Pin	3200 VA	Through Hole
TE Connectivity AMP Connectors 1393223-7	652 Ohms	Non Latching	Silver Nickel (AgNi)	85 °C	-40 C	8 A	1.2 VDC	SPDT (1 Form C)	Sealed - Fully	8.2 VDC	cURus VDE	12 VDC	5 ms	10 ms	400 VAC	General Purpose	18.4 mA	PC Pin	3200 VA	Through Hole
TE Connectivity AMP Connectors V23061B1007A601	2.27 kOhms	Non Latching	Silver Cadmium Oxide (AgCdO)	85 °C	-40 C	8 A	2.4 VDC	SPDT (1 Form C)	Sealed - Fully	16.3 VDC	cURus VDE	24 VDC	5 ms	10 ms	400 VAC	General Purpose	10.6 mA	PC Pin	3200 VA	Through Hole
TE Connectivity AMP Connectors 1-1393223-5	1.45 kOhms	Non Latching	Silver Cadmium Oxide (AgCdO)	85 °C	-40 C	8 A	1.8 VDC	SPDT (1 Form C)	Sealed - Fully	12.2 VDC	cURus VDE	18 VDC	5 ms	10 ms	400 VAC	General Purpose	12.4 mA	PC Pin	3200 VA	Through Hole

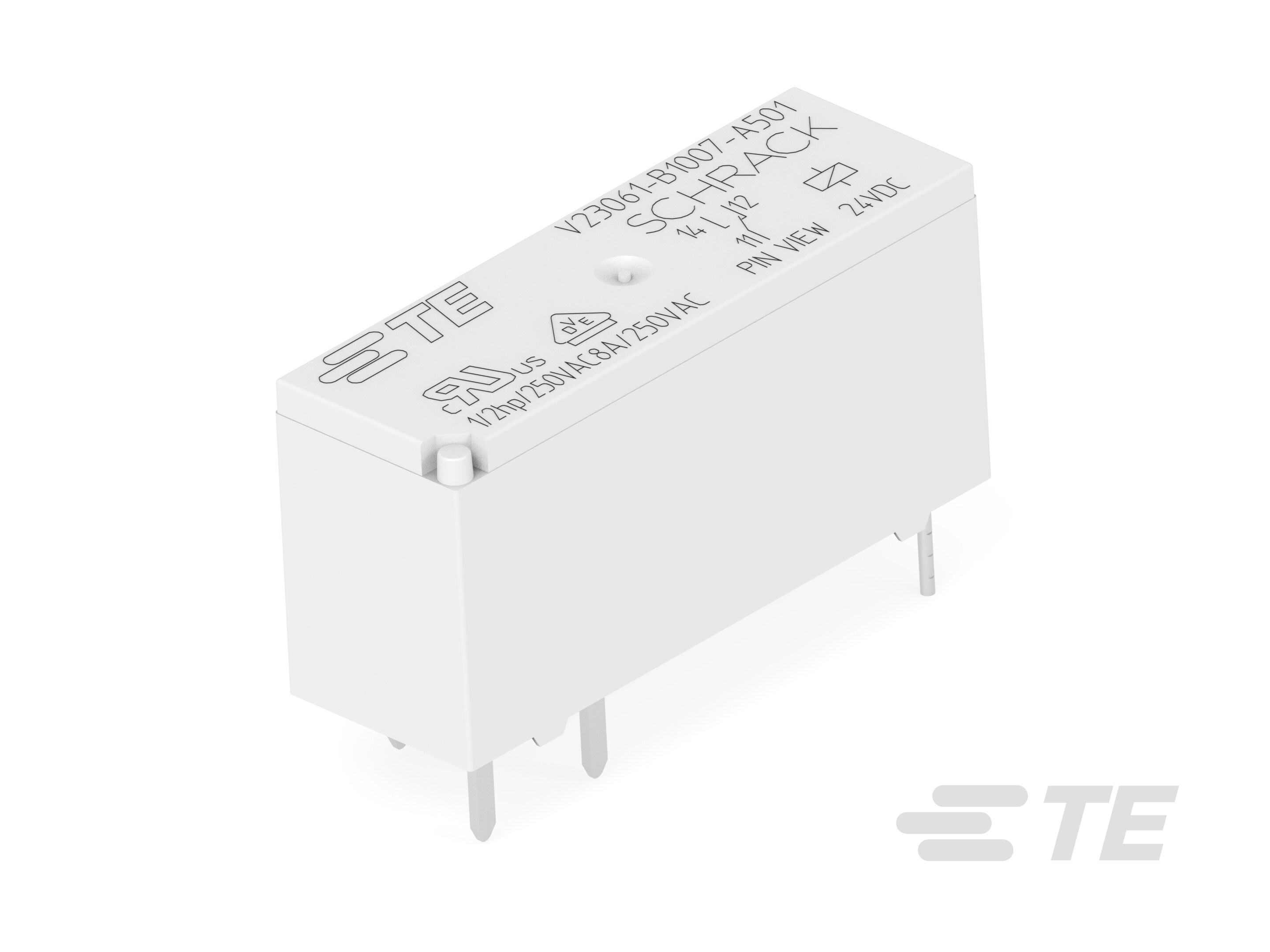

TE Connectivity AMP Connectors V23061B1007A501	2.27 kOhms	Non Latching	Silver Nickel (AgNi)	85 °C	-40 C	8 A	2.4 VDC	SPDT (1 Form C)	Sealed - Fully	16.3 VDC	cURus VDE	24 VDC	5 ms	10 ms	400 VAC	General Purpose	10.6 mA	PC Pin	3200 VA	Through Hole
