TMB-V5 Series
Manufacturer: Amphenol CDI
Beta
⌘K

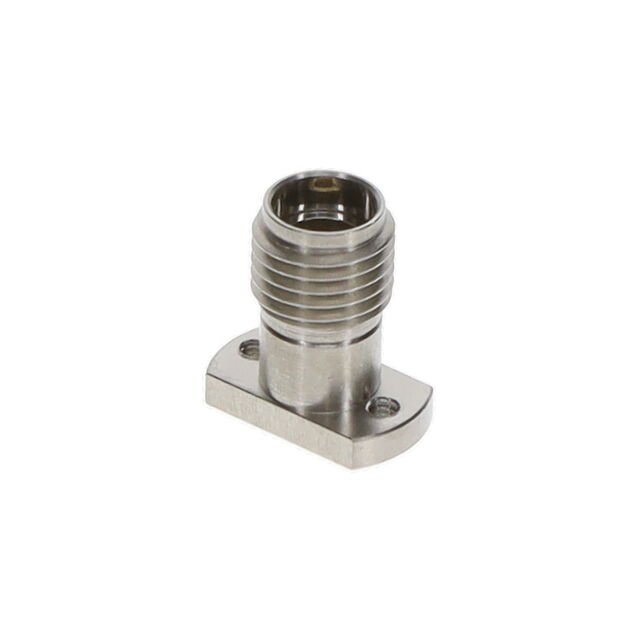

3.50MM FEMALE 2 HOLE FLANGE POST
| Part | Center Contact Material | Impedance | Number of Ports | Mounting Feature | Connector Type | Mounting Type | Connector Style | Shield Termination | Contact Termination | Fastening Type | Housing Color | Frequency - Max [Max] | Insertion Loss | Mating Cycles | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Body Material | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol CDI | Beryllium Copper | 50 Ohms | 1 | Flange | Female Socket Jack | Surface Mount | 3.5mm | Screw | Compression | Threaded | Silver | 34 GHz | |||||||||
 Amphenol CDI | Beryllium Copper | 50 Ohms | 1 | Flange | Female Socket Jack | Surface Mount | 3.5mm | Screw | Compression | Threaded | Silver | 34 GHz | 0.35 dB | 500 | Field Replaceable For Hermetically Sealed Pin | -65 ░C | 165 °C | 500 V | Gold | Stainless Steel | |
Amphenol CDI | Beryllium Copper | 50 Ohms | 1 | Flange | Female Socket Jack | Surface Mount | 3.5mm | Screw | Compression | Threaded | Silver | 34 GHz | Field Replaceable For Hermetically Sealed Pin | ||||||||
 Amphenol CDI | Beryllium Copper | 50 Ohms | 1 | Female Socket Jack | Through Hole | 3.5mm | Solder | Solder | Threaded | Gold | 34 GHz | ||||||||||
Amphenol CDI | Beryllium Copper | 50 Ohms | 1 | Flange | Female Socket Jack | Surface Mount | 3.5mm | Screw | Compression | Threaded | Silver | 34 GHz | 0.35 dB | 500 | -65 ░C | 165 °C | 500 V | Gold | Stainless Steel | ||
Amphenol CDI | Beryllium Copper | 50 Ohms | 1 | Female Socket Jack | Through Hole | 3.5mm | Solder | Solder | Threaded | Gold | 34 GHz | 0.6 dB | 500 | -65 ░C | 165 °C | 400 V | Gold | Brass | Gold |
