9944 Series
Manufacturer: Belden Inc.
Beta
⌘K

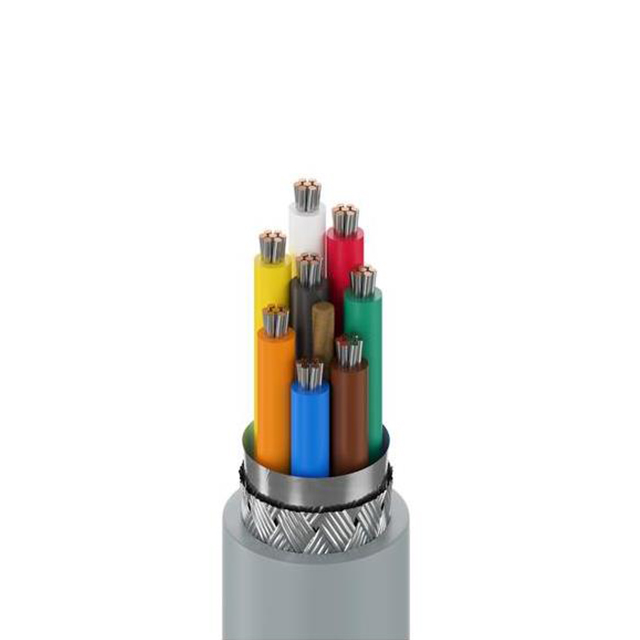

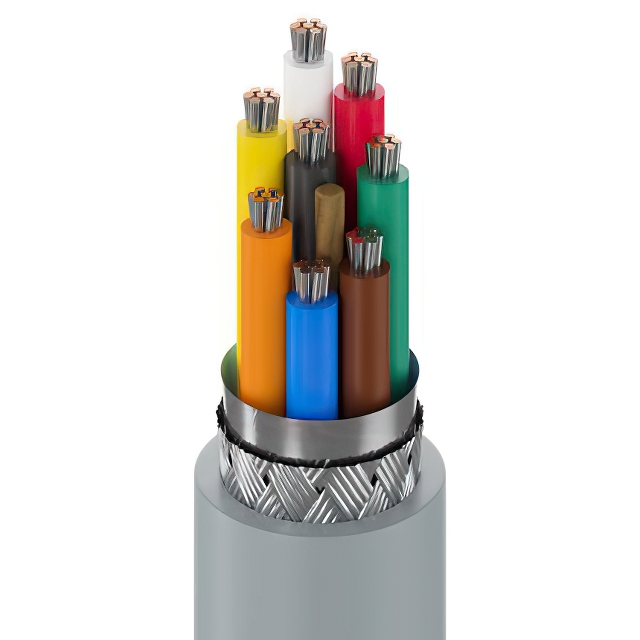

CABLE 8CON 22AWG CHROM SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Voltage | Cable Type | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Number of Conductors [custom] | Shield Type | Conductor Insulation | Usage | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 152.4 m | 500 ft | 30 AWG | 7 | 0.035 in | 0.889 mm | Copper Tinned | 8 | Braid Foil | Poly-Vinyl Chloride (PVC) | Computer | 80 °C | -30 ░C | 22 AWG | 0.264 in | 6.71 mm | UL Style 2464 | Chrome | ||
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 30 AWG | 7 | 0.035 in | 0.889 mm | Copper Tinned | 8 | Braid Foil | Poly-Vinyl Chloride (PVC) | Computer | 80 °C | -30 ░C | 22 AWG | 0.264 in | 6.71 mm | UL Style 2464 | Chrome | ||||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 30 AWG | 7 | 0.035 in | 0.889 mm | Copper Tinned | 8 | Braid Foil | Poly-Vinyl Chloride (PVC) | Computer | 80 °C | -30 ░C | 22 AWG | 0.264 in | 6.71 mm | Chrome | 100 ft | 30.5 m | ||||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) | 300 VDC | Multi-Conductor | 304.8 m | 1000 ft | 30 AWG | 7 | 0.035 in | 0.889 mm | Copper Tinned | 8 | Braid Foil | Poly-Vinyl Chloride (PVC) | Computer | 80 °C | -30 ░C | 22 AWG | 0.264 in | 6.71 mm | UL Style 2464 | Chrome |
