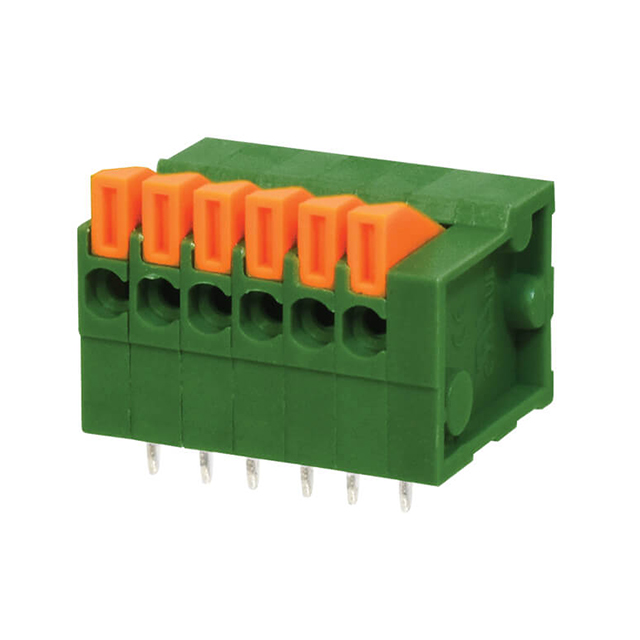

TBL003 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
TERMINAL BLOCK, SCREWLESS, 2.54,
| Part | Number of Levels | Mounting Type | Pitch | Pitch | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Features | Current | Positions Per Level | Wire Termination | Color | Voltage | Positions Per Level [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating [custom] | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 1 | Through Hole | 0.1 " | 2.54 mm | 24 AWG | 19.5 AWG | Horizontal with Board | Interlocking (Side) Lever Actuated | 2 A | 6 | Screwless | Green | 150 V | |||||
 Same Sky (Formerly CUI Devices) | 1 | Through Hole | 0.1 " | 2.54 mm | 24 AWG | 19.5 AWG | Horizontal with Board | Interlocking (Side) Lever Actuated | 2 A | Screwless | Green | 150 V | 7 | |||||
 Same Sky (Formerly CUI Devices) | 1 | Through Hole | 0.1 " | 2.54 mm | 24 AWG | 19.5 AWG | Horizontal with Board | Interlocking (Side) Lever Actuated | 2 A | 4 | Screwless | Green | 150 V | |||||
 Same Sky (Formerly CUI Devices) | 1 | Through Hole | 0.1 " | 2.54 mm | 24 AWG | 19.5 AWG | Horizontal with Board | Interlocking (Side) Lever Actuated | 2 A | 3 | Screwless | Green | 150 V | |||||
Same Sky (Formerly CUI Devices) | 1 | Through Hole | 0.1 " | 2.54 mm | 24 AWG | 19.5 AWG | Horizontal with Board | Interlocking (Side) Lever Actuated | 2 A | 4 | Screwless | Green | 150 V | -40 C | 105 ░C | Stainless Steel | Copper Alloy - Tin Plated | |
Same Sky (Formerly CUI Devices) | 1 | Through Hole | 0.1 " | 2.54 mm | 24 AWG | 19.5 AWG | Horizontal with Board | Interlocking (Side) Lever Actuated | 2 A | 6 | Screwless | Green | 150 V | -40 C | 105 ░C | Stainless Steel | Copper Alloy - Tin Plated | |
Same Sky (Formerly CUI Devices) | 1 | Through Hole | 0.1 " | 2.54 mm | 24 AWG | 19.5 AWG | Horizontal with Board | Interlocking (Side) Lever Actuated | 2 A | 3 | Screwless | Green | 150 V | -40 C | 105 ░C | Stainless Steel | Copper Alloy - Tin Plated | |
Same Sky (Formerly CUI Devices) | 1 | Through Hole | 0.1 " | 2.54 mm | 24 AWG | 19.5 AWG | Horizontal with Board | Interlocking (Side) Lever Actuated | 2 A | Screwless | Green | 150 V | 7 | -40 C | 105 ░C | Stainless Steel | Copper Alloy - Tin Plated |
