P40P48 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

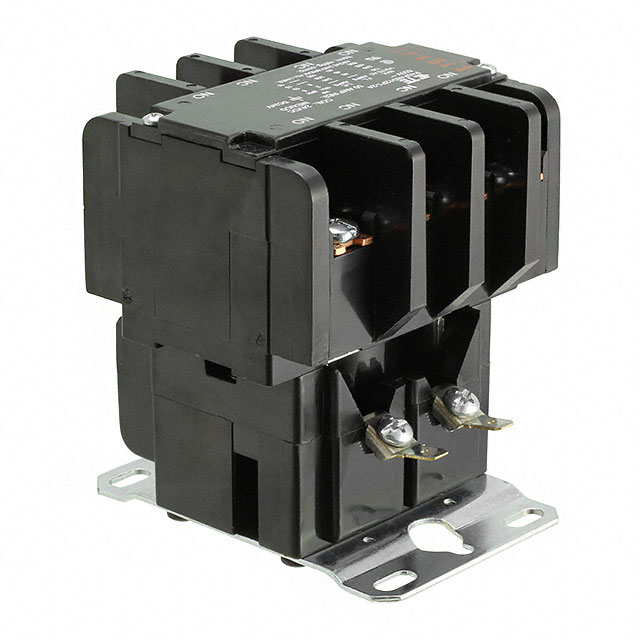

RELAY CONTACTOR 4PST 40A 24V
| Part | Contact Material | Coil Current | Coil Resistance | Coil Power | Contact Rating (Current) | Mounting Type | Coil Voltage | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Switching Voltage [Max] | Termination Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Silver Cadmium Oxide (AgCdO) | 286 mA | 84 Ohms | 7.5 W | 40 A | Chassis Mount | 24 VDC | 4PST-2NO/2NC (DB/DM) (2 Form X 2 Form Y) | 65 °C | -55 C | 18 VDC | 600 VAC | 0.25 in 6.3 mm | Screw Terminal Quick Connect |
