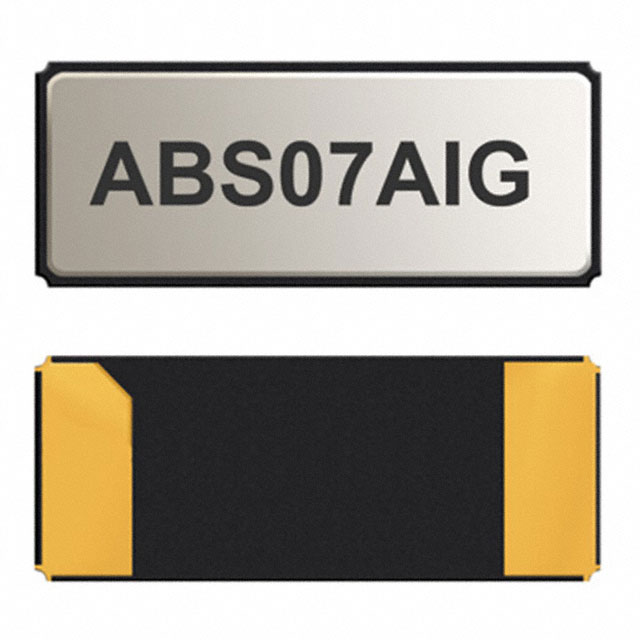

ABS07AIG Series

Catalog

CRYSTALS CRYSTAL 32.768KHZ 9PF SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Load Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Frequency	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	ESR (Equivalent Series Resistance)	Ratings	Type	Operating Mode	Frequency Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Package / Case
Abracon LLC ABS07AIG-32.768KHZ-9-D-T	85 °C	-40 C	9 pF	1.5 mm	3.2 mm	0.126 in	0.059 "	0.032768 MHz	1.5	2-SMD	3.2	80 kOhms	AEC-Q200	kHz Crystal (Tuning Fork)	Fundamental	20 ppm	0.035 in	0.9 mm	Surface Mount	2-SMD No Lead
Abracon LLC ABS07AIG-32.768KHZ-1-T	125 °C	-40 C	12.5 pF	1.5 mm	3.2 mm	0.126 in	0.059 "	0.032768 MHz	1.5	2-SMD	3.2	80 kOhms	AEC-Q200	kHz Crystal (Tuning Fork)	Fundamental	10 ppm	0.035 in	0.9 mm	Surface Mount	2-SMD No Lead
