25SVPD Series

Catalog

CAP, 39ΜF, 25V, 20% ROHS COMPLIANT: YES

Part	Tolerance	Voltage - Rated	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Type	Package / Case	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Applications	Capacitance	Height - Seated (Max)

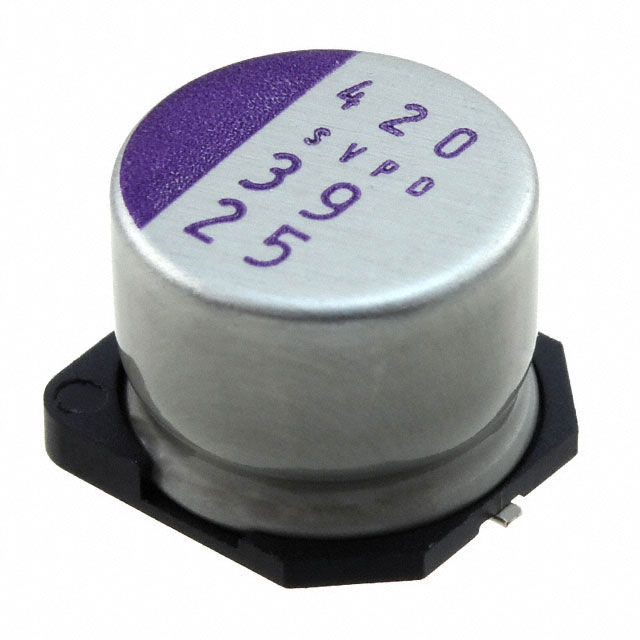

Panasonic Electronic Components 25SVPD39M	20 %	25 VDC	664 mA	0.394 in	10 mm	8 mm	0.315 in	Surface Mount	Polymer	Radial Can - SMD	0.406 "	0.406 in	10.3 mm	10.3 mm	2000 Hrs	-55 C	125 °C	33.2 mA	45 mOhm	General Purpose	39 µF

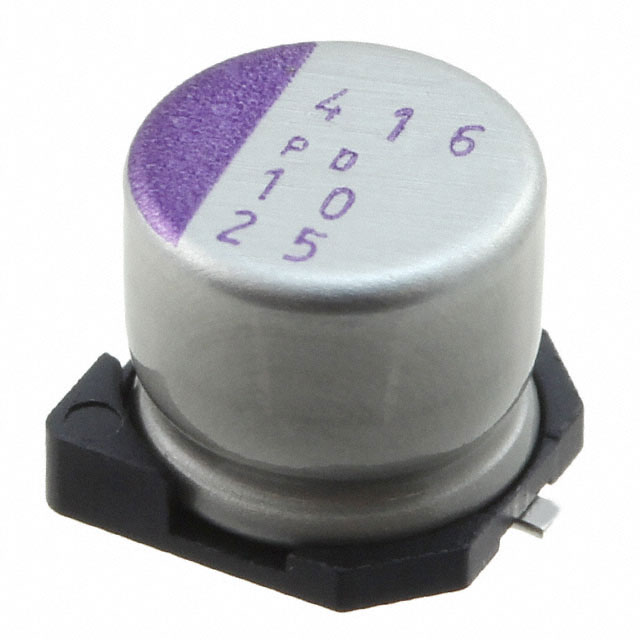

Panasonic Electronic Components 25SVPD10M	20 %	25 VDC	474 mA	0.248 "	6.3 mm		0.236 "	Surface Mount	Polymer	Radial Can - SMD	0.26 in	0.26 in	6.6 mm	6.6 mm	2000 Hrs	-55 C	125 °C	23.7 mA	65 mOhm	General Purpose	10 µF	6 mm

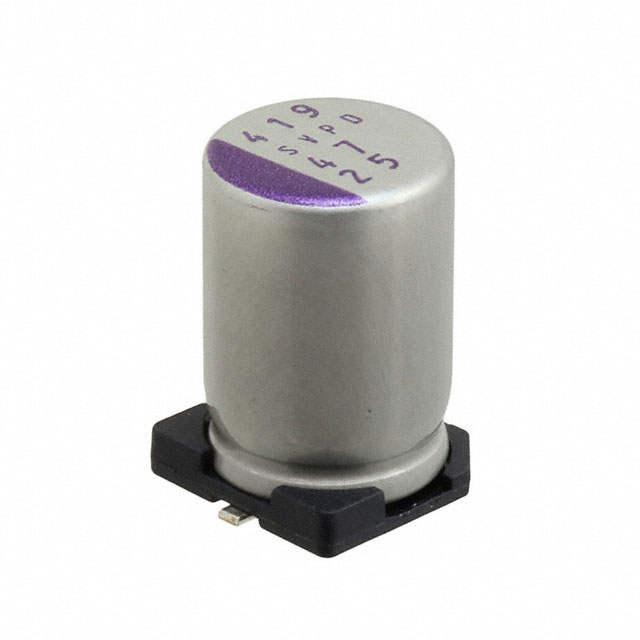

Panasonic Electronic Components 25SVPD47M	20 %	25 VDC	943 mA	0.315 in	8 mm		0.472 in	Surface Mount	Polymer	Radial Can - SMD	0.327 in	0.327 in	8.3 mm	8.3 mm	2000 Hrs	-55 C	125 °C	47.15 mA	30 mOhms	General Purpose	47 µF	12 mm
