1034A Series
Manufacturer: Belden Inc.
Beta
⌘K

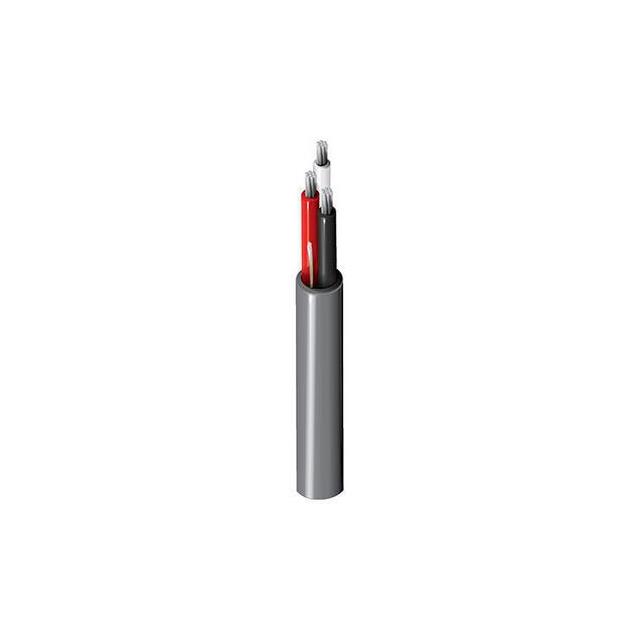

CABLE 3COND 16AWG BLACK
| Part | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Length | Length | Conductor Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Number of Conductors | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 16 AWG | 7 | 24 AWG | 0.94 mm | 0.037 in | Poly-Vinyl Chloride (PVC) | 4000 ' | 1219.2 m | Copper Bare | Multi-Conductor | 0.27 " | 6.86 mm | 300 VDC | -30 ░C | 105 ░C | Black | 3 | Poly-Vinyl Chloride (PVC) |
 Belden Inc. | 16 AWG | 7 | 24 AWG | 0.94 mm | 0.037 in | Poly-Vinyl Chloride (PVC) | Copper Bare | Multi-Conductor | 0.27 " | 6.86 mm | 300 VDC | -30 ░C | 105 ░C | Black | 3 | Poly-Vinyl Chloride (PVC) |
