4611X Series
Manufacturer: Bourns Inc.
Beta
⌘K

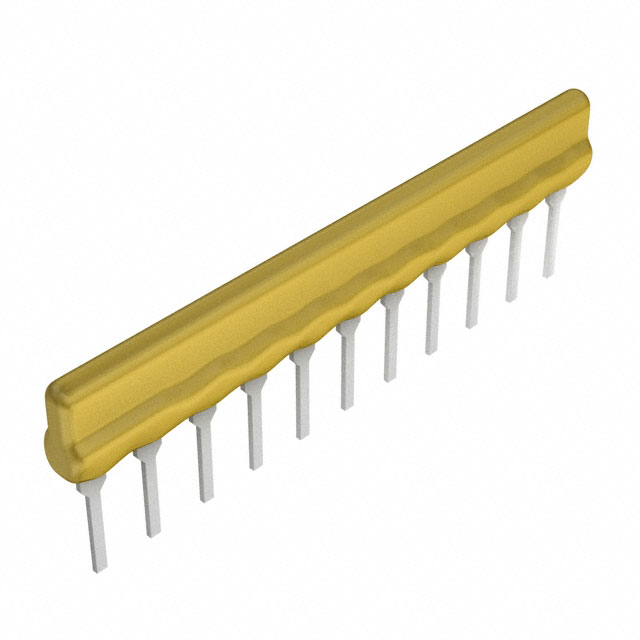

RES ARRAY 10 RES 22K OHM 11SIP
| Part | Mounting Type | Number of Pins | Supplier Device Package | Temperature Coefficient | Resistance (Ohms) | Package / Case | Circuit Type | Tolerance | Number of Resistors | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Power Per Element | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Resistance (Ohms) [custom] | Tolerance | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Through Hole | 11 | 11-SIP | 100 ppm/°C | 22k | 11-SIP | Bussed | 2 % | 10 | -55 C | 125 °C | 5.08 mm | 0.2 in | 200 mW | 2.49 mm | 0.098 in | 1.098 " | 27.89 mm | |||
Bourns Inc. | Through Hole | 11 | 11-SIP | 250 ppm/°C | 11-SIP | Bussed | 10 | -55 C | 125 °C | 5.08 mm | 0.2 in | 200 mW | 2.49 mm | 0.098 in | 1.098 " | 27.89 mm | 10 Ohms | ±1Ohm | |||
 Bourns Inc. | Through Hole | 11 | 11-SIP | 100 ppm/°C | 11-SIP | Dual Terminator | 2 % | 18 | -55 C | 125 °C | 5.08 mm | 0.2 in | 200 mW | 2.49 mm | 0.098 in | 1.098 " | 27.89 mm | ||||
Bourns Inc. | Through Hole | 11 | 11-SIP | 100 ppm/°C | 11-SIP | Bussed | 2 % | 10 | -55 C | 125 °C | 5.08 mm | 0.2 in | 200 mW | 2.49 mm | 0.098 in | 1.098 " | 27.89 mm | 100 Ohms | |||
Bourns Inc. | Through Hole | 11 | 11-SIP | 100 ppm/°C | 11-SIP | Bussed | 2 % | 10 | -55 C | 125 °C | 5.08 mm | 0.2 in | 200 mW | 2.49 mm | 0.098 in | 1.098 " | 27.89 mm | 270 Ohms | |||
 Bourns Inc. | Through Hole | 11 | 11-SIP | 100 ppm/°C | 11-SIP | Dual Terminator | 2 % | 18 | -55 C | 125 °C | 5.08 mm | 0.2 in | 200 mW | 2.49 mm | 0.098 in | 1.098 " | 27.89 mm | 330 Ohms 470 Ohms | |||
Bourns Inc. | Through Hole | 11 | 11-SIP | 100 ppm/°C | 11-SIP | Bussed | 2 % | 10 | -55 C | 125 °C | 5.08 mm | 0.2 in | 200 mW | 2.49 mm | 0.098 in | 1.098 " | 27.89 mm | 390 Ohms | |||
Bourns Inc. | Through Hole | 11 | 11-SIP | 100 ppm/°C | 11-SIP | Bussed | 2 % | 10 | -55 C | 125 °C | 5.08 mm | 0.2 in | 200 mW | 2.49 mm | 0.098 in | 1.098 " | 27.89 mm | 2 kOhms | |||
Bourns Inc. | Through Hole | 11 | 11-SIP | 100 ppm/°C | 11-SIP | Bussed | 2 % | 10 | -55 C | 125 °C | 5.08 mm | 0.2 in | 200 mW | 2.49 mm | 0.098 in | 1.098 " | 27.89 mm | 33 kOhms | |||
Bourns Inc. | Through Hole | 11 | 11-SIP | 100 ppm/°C | 3k 6.2k | 11-SIP | Dual Terminator | 2 % | 18 | -55 C | 125 °C | 5.08 mm | 0.2 in | 200 mW | 2.49 mm | 0.098 in | 1.098 " | 27.89 mm |
