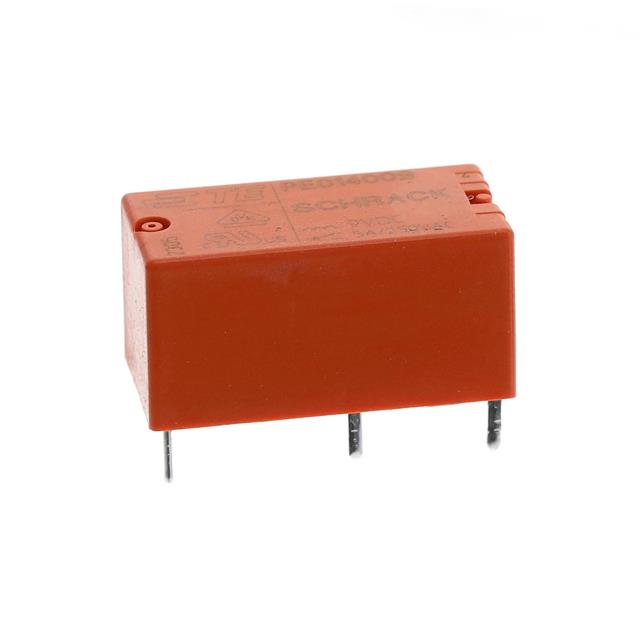

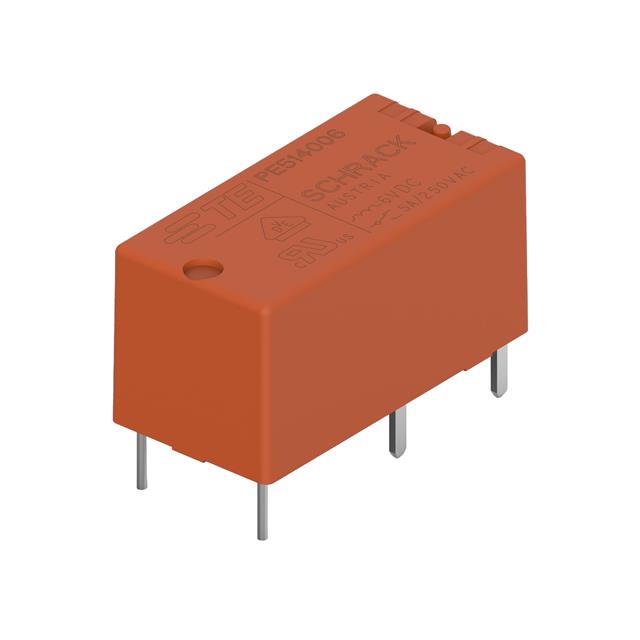

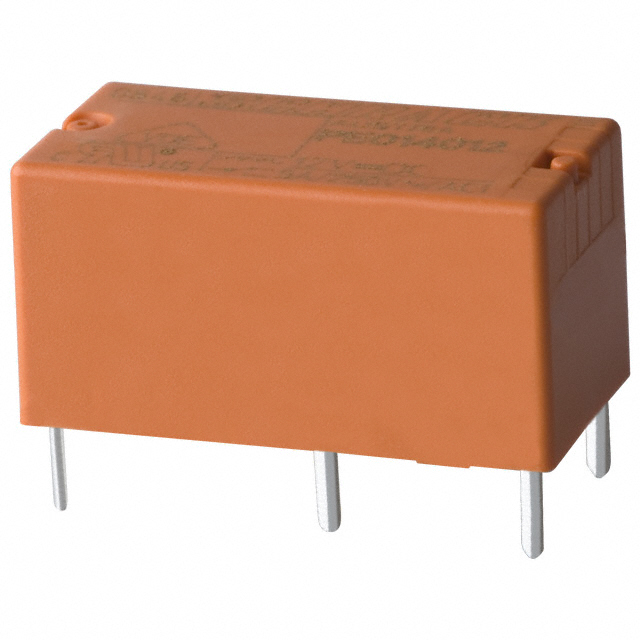

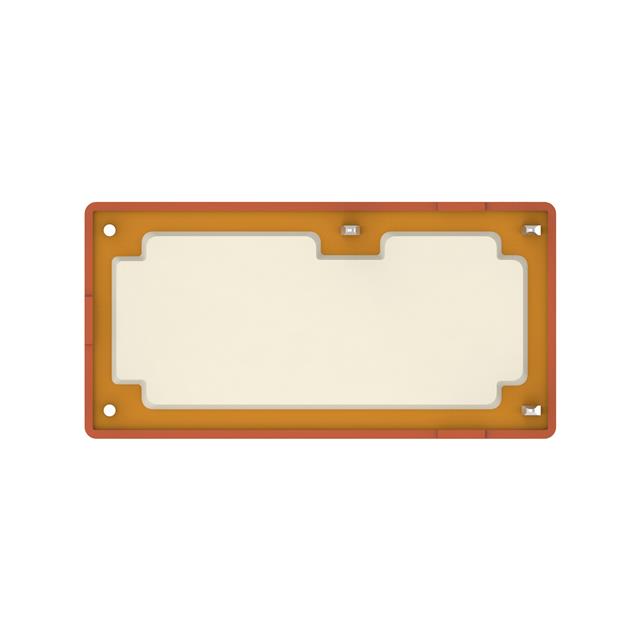

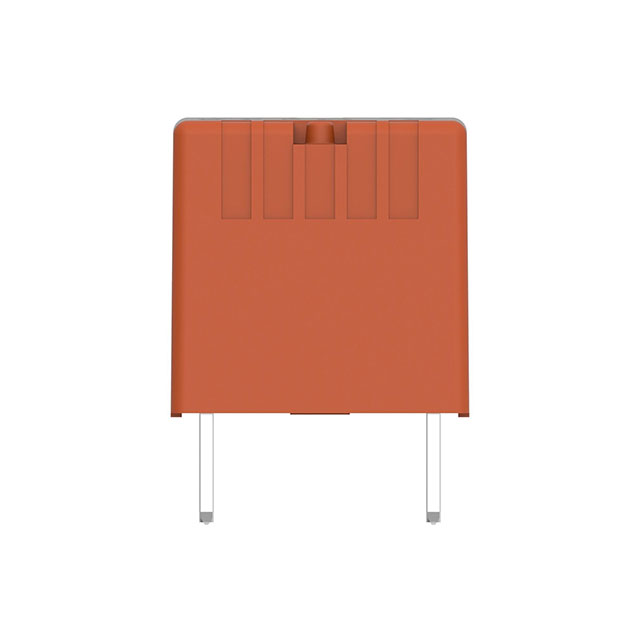

1393219 Series
Manufacturer: TE Connectivity Potter & Brumfield Relays
Beta
⌘K
RELAY GEN PURPOSE SPDT 5A 24V
| Part | Contact Form | Switching Voltage [Max] | Must Release Voltage | Relay Type | Contact Material | Contact Rating (Current) | Coil Current | Operate Time | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Load - Max Switching | Coil Voltage | Release Time | Seal Rating | Coil Type | Coil Resistance | Mounting Type | Must Operate Voltage | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Potter & Brumfield Relays | SPDT (1 Form C) | 400 VAC | 2.4 VDC | General Purpose | Silver Nickel (AgNi) | 5 A | 8.8 mA | 8 ms | cURus VDE | 85 °C | -40 °C | 2000 VA | 24 VDC | 8 ms | Sealed - Flux Protection | Non Latching | 2.73 kOhms | Through Hole | 18 VDC | PC Pin |
TE Connectivity Potter & Brumfield Relays | SPDT (1 Form C) | 400 VAC | 0.5 VDC | General Purpose | Silver Nickel (AgNi) | 5 A | 40 mA | 8 ms | cURus VDE | 85 °C | -40 °C | 2000 VA | 5 VDC | 8 ms | Sealed - Fully | Non Latching | 125 Ohms | Through Hole | 3.8 VDC | PC Pin |
TE Connectivity Potter & Brumfield Relays | SPDT (1 Form C) | 400 VAC | 0.6 VDC | General Purpose | Silver Nickel (AgNi) | 5 A | 34.8 mA | 8 ms | cURus VDE | 85 °C | -40 °C | 2000 VA | 8 ms | Sealed - Flux Protection | Non Latching | 172 Ohms | Through Hole | 4.5 VDC | PC Pin | |
 TE Connectivity Potter & Brumfield Relays | SPDT (1 Form C) | 400 VAC | 4.8 VDC | General Purpose | Silver Nickel (AgNi) | 5 A | 4.4 mA | 8 ms | cURus VDE | 85 °C | -40 °C | 2000 VA | 48 VDC | 8 ms | Non Latching | 10.97 kOhms | Through Hole | 36 VDC | PC Pin | |
TE Connectivity Potter & Brumfield Relays | SPDT (1 Form C) | 400 VAC | 3.6 VDC | General Purpose | Silver Nickel (AgNi) | 5 A | 5.8 mA | 8 ms | cURus VDE | 85 °C | -40 °C | 2000 VA | 36 VDC | 8 ms | Sealed - Flux Protection | Non Latching | 6.17 kOhms | Through Hole | 27 VDC | PC Pin |
 TE Connectivity Potter & Brumfield Relays | SPDT (1 Form C) | 400 VAC | 0.6 VDC | General Purpose | Silver Nickel (AgNi) | 5 A | 34.9 mA | 8 ms | cURus VDE | 85 °C | -40 °C | 2000 VA | 8 ms | Sealed - Fully | Non Latching | 172 Ohms | Through Hole | 4.5 VDC | PC Pin | |
TE Connectivity Potter & Brumfield Relays | SPDT (1 Form C) | 400 VAC | General Purpose | Silver Nickel (AgNi) | 5 A | 11.7 mA | 8 ms | cURus VDE | 85 °C | -40 °C | 2000 VA | 18 VDC | 8 ms | Sealed - Flux Protection | Non Latching | 1.545 kOhms | Through Hole | PC Pin | ||
TE Connectivity Potter & Brumfield Relays | SPDT (1 Form C) | 400 VAC | 4.8 VDC | General Purpose | Silver Nickel (AgNi) | 5 A | 4.4 mA | 8 ms | cURus VDE | 85 °C | -40 °C | 2000 VA | 48 VDC | 8 ms | Sealed - Flux Protection | Non Latching | 10.97 kOhms | Through Hole | 36 VDC | PC Pin |
 TE Connectivity Potter & Brumfield Relays | SPDT (1 Form C) | 400 VAC | 0.9 VDC | General Purpose | Silver Nickel (AgNi) | 5 A | 22.2 mA | 8 ms | cURus VDE | 85 °C | -40 °C | 2000 VA | 9 VDC | 8 ms | Non Latching | 405 Ohms | Through Hole | 6.8 VDC | PC Pin | |
 TE Connectivity Potter & Brumfield Relays | SPDT (1 Form C) | 400 VAC | 2.4 VDC | General Purpose | Silver Nickel (AgNi) | 5 A | 8.8 mA | 8 ms | cURus VDE | 85 °C | -40 °C | 2000 VA | 24 VDC | 8 ms | Sealed - Fully | Non Latching | 2.73 kOhms | Through Hole | 18 VDC | PC Pin |
