2081886 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

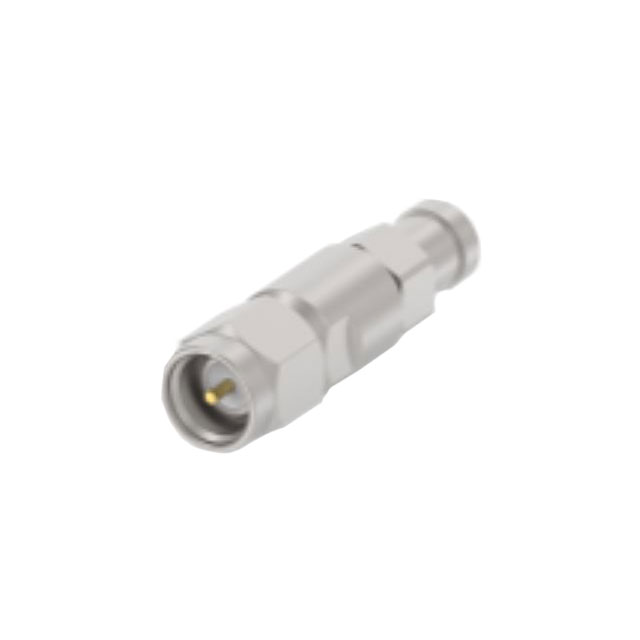

RF / COAXIAL CONNECTOR, SMA COAXIAL, STRAIGHT PLUG, SOLDER, 50 OHM, RG141, BERYLLIUM COPPER
| Part | Mounting Type | Center Contact Plating | Frequency - Max [Max] | Center Contact Material | Dielectric Material | Number of Ports | Shield Termination | Connector Style | Body Material | Mating Cycles | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Termination | Impedance | Housing Color | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | Gold | 27 GHz | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 1 | Solder | SMA | Brass | 500 | Gold | -65 ░C | 165 °C | 335 V | Solder | 50 Ohms | Gold | Male Pin Plug |
